Summary of Contents for Allied LEISTER VULCAN SYSTEM

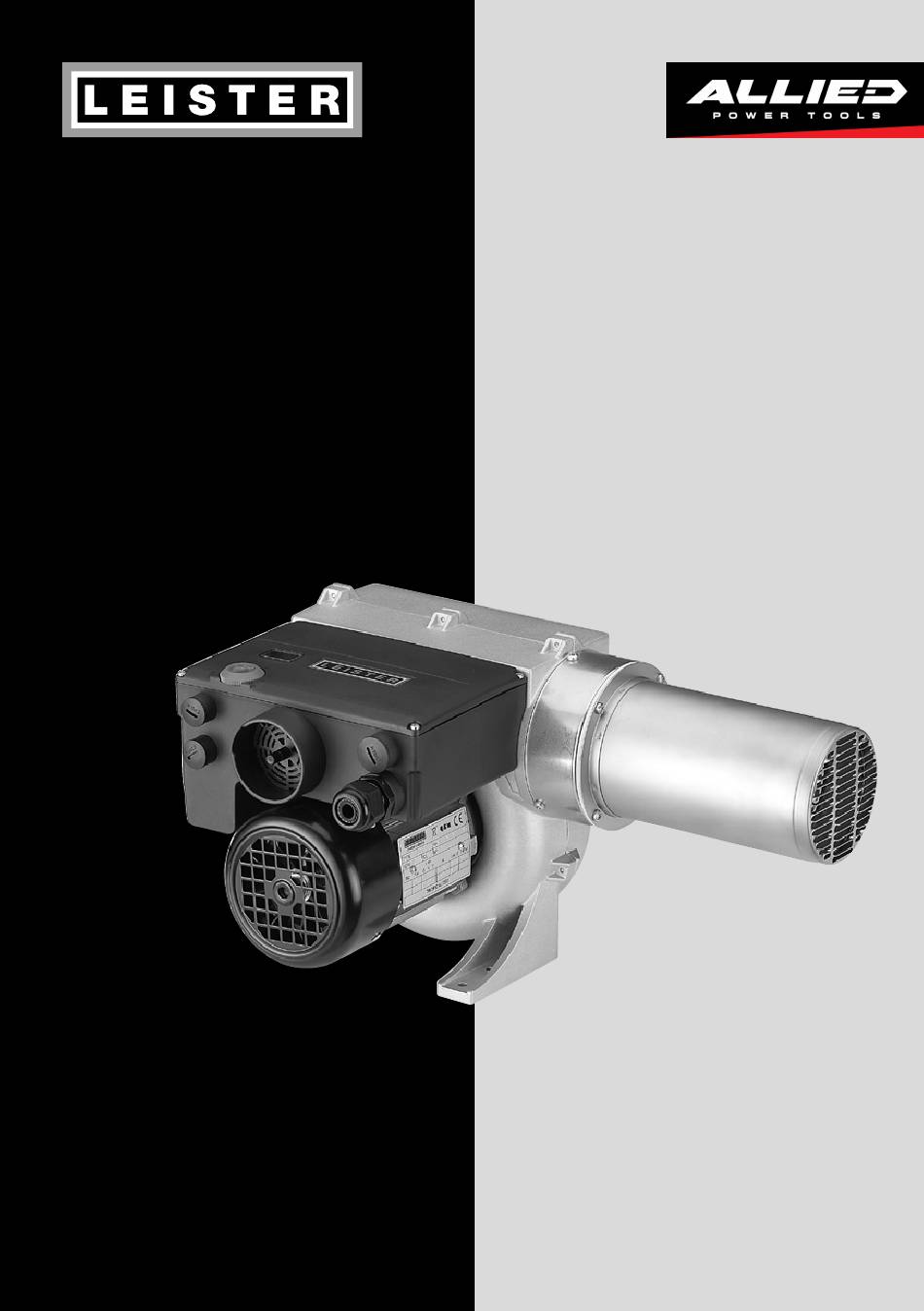

- Page 1 ® VULCAN SYSTEM...
- Page 2 Wiring Diagram max 3A Alarm Power Power Alarm...
- Page 3 Operating Instructions Congratulations on purchasing a VULCAN SYSTEM ! You have chosen a top-class hot air blower by Leister, made from high-quality materials. Every VULCAN SYSTEM undergoes stringent quality checks before leaving the factory in Switzerland. Please read operating instructions carefully before use and keep for future reference.
- Page 4 Disposal Electrical equipment, accessories and packaging should be recycled in an environmentally friendly way. For EU countries only: Do not dispose of electrical equipment with household refuse!
-
Page 5: Technical Data
Technical Data Voltage 3 × 230 3 × 400 3 × 480 Power consumption Frequency 50 / 60 50 / 60 50 / 60 Max. air outlet °C temperature Max. air inlet °C temperature Air volume (20 °C) l/min. 850 / 1500 950 / 1700 950 / 1700 Max. - Page 6 Technical data for interface Max. voltages AC 250 V, DC 30 V Max. currents AC 3 A, DC 3 A Relay output Max. contact resistance 100 m Ohm at DC 6 V / 1 A Relay contact SPST - NO Insulation IEC/EN 60065 AC 2000 V (50 - 60 Hz) 1 min CAUTION : When fixing the tool into an installation, the mains connection must have a suitable de-...
-
Page 7: Device Description
Device description Cable gland for mains connection Cable gland for interface (mounted ex works) (enclosed in the connection housing) Locking screw for frequency converter Flange ø 60 mm (mounted ex works) Air slide Locking screw for alarm relay 10 Potentiometer for temperature setting (mounted ex works) 11 Display Locking screw for interface... -
Page 8: Installation
Installation • The installation must ensure that – only cold air is supplied. – no excess (heat) residue builds up. – the device is not subject to jets of hot air from another device. • Protect the VULCYAN SYSTEM from mechanical vibrations and shocks. •... - Page 9 Configuration internal dip switch • Optionally different operating modes which are set with an integrated dip switch Only operate the dip switch when switched off ! – Steplessly adjustable heat output via red potentiometer (10) on the device – Steplessly adjustable heat output via interface –...
- Page 10 FU / FC Frequency converter operation 3 x 230V 3 x 230V Configuration frequency converter FC 550 • Wiring diagram page 6 12 F 12 F Parameters Default value Parameters Default value Min. frequency 20 Hz Nominal current 0.65 A Max.
-
Page 11: Warranty
Error Display Description Fault correction Check environment temperature Err 01 Device temperature too high Check air intake temperature Err 02 Heating element temperature too high Check air supply volume Err 03 Temperature probe Check probe connection Err 04 Err 05 Contact your Leister Service Centres Err 06 Err 07... - Page 12 ® © Copyright by Leister Your authorised Service Centre is: Allied Power Tools 12/ 76 Rushdale St, Knoxfield VIC 3180 Australia T: + 61 3 9764 2911 E: sales@alliedpowertools.com.au W: www.alliedpowertools.com.au...
