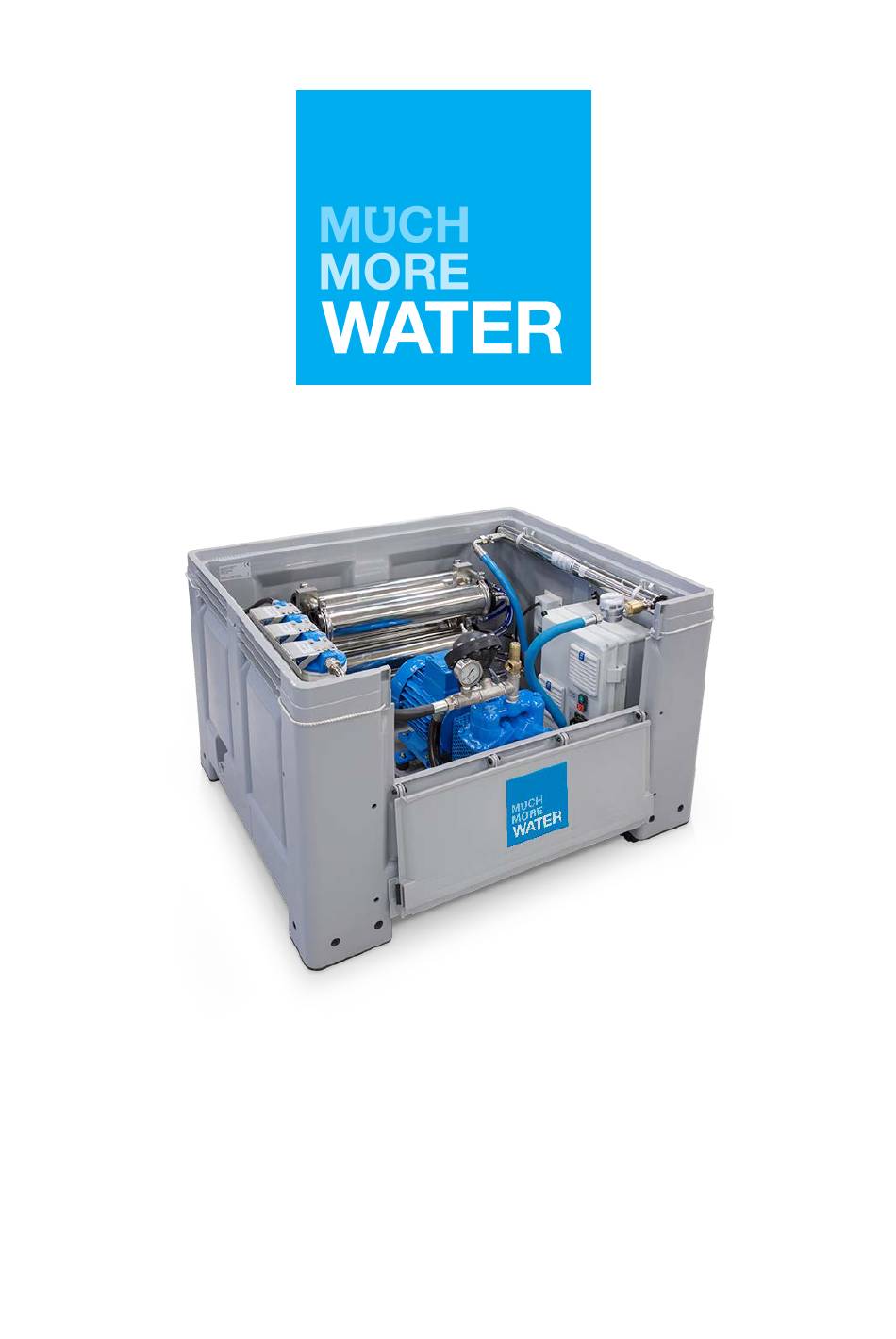

- Page 1 Bluebox 1800 UF Operating Manual...
- Page 2 BlueBox 1800 UF. Customized with UV disinfection and post chlorination system Side 2 af 16...
- Page 3 PART 1 Before using Bluebox 1800UF Affix the three coupling houses on the outside of the container (see ill.) if it has not already been done before delivery Press red and blue ¾” hoses into the quick couplings (see ill.) follow the colour codes, red sign red hose, blue sign, blue hose e.g.
- Page 4 PART 2 Starting the Bluebox 1800UF – Electrical version. Connect the unit to a 230 V power supply (see ill.). Before starting the pump makes sure that the blue handle is in open position (see ill.). The Bluebox must not be started with pressure on, the 3 pre-filters might blast.
- Page 5 Let the pump run for 1-2 minutes until no more bubbles are detected from the red hose. Turn the blue pressure valve on the main block clockwise until the pressure get to approx. 2-3 bars. (see ill.). Open the grey electricity box to check that the UV-indicators display shows green light if the UV-disinfection option is installed (see ill.).
- Page 6 PART 3 After using the BlueBox 1800UF – Electrical version Carefully turn the blue pressure regulating handle on the main block counter-clockwise until the pressure reads 0 bar (see ill.). Let the Bluebox work 1 minute without pressure. Press on the red button (see ill.). Switch off the black button to OFF position.
- Page 7 PART 4 Maintenance of Bluebox 1800UF Daily Cleaning of the float-filter: Screw off the red balloon and plastic top. Remove the nylon and metal filters. Rinse them in clean water with a brush. Affix the filter and check that the crude filter is placed on top (see ill.). Cleaning of the three pre-filters: a) Screw off the three white filter housings using the admitted key to avoid damage on the houses.
- Page 8 The filters must not be wrought or squeezed to get remaining water out. Reinstall the filters in the pipes and screw them into the sockets. The front filters should be changed when clogged. Pay special attention to filter 2 (05 micron) and the Activated Carbon filter should be changed every 4 months of operation irrespective of its visual condition(se ill.).
- Page 9 Cleaning To make sure that the prescribed cleaning fluids are working correctly, the system must be run with and without pressure, which means that the blue handle at the main block (see ill.) are in open position and then turned to closed position.
- Page 10 7. When the cleaning is finished, the system is closed down as described in “Part III – After using Bluebox 1800UF” (see ill.) and the 3 front-filters have to be changed. If the first filter, 25 micron, is not too damaged (clogged), it can be rinsed and brushed down and reinstalled (see ill.).
- Page 11 The following procedure should be repeated for each bank of membranes to be cleaned. Detailed Cleaning Procedure 1. Flush Train The train to be cleaned should be shut down and flushed with dechlorinated potable water until the brine and feed conductivities are within 10% of each other (approx. 10 minutes). 2.
- Page 12 pressure reaches 40psi or where the flow reaches 10 m /hr/pressure vessel. permeate valve should be left (slightly) open to prevent any membrane damage. Note the pH, temperature, differential pressure, flowrate and any discolouration/changes to the cleaning solution on a half hourly basis. At the end of this period pump the solution out of the system and drain down to remove as much solution as possible.
- Page 13 If any faults should occur… Symptom Reason Solution Pump cannot Float-filter is clogged. Dismantle red float and clean net-filters produce any with brush (see ill. On page 5) pressure. Absorption tube is Dismantle black absorption hose and fill not filled with water. with water (see ill.).
- Page 14 UV-light bulb Plug for light is not Plug in lights. gives no light connected. UV-light bulb is not Dismantle UV-housing and tighten bulb screwed tight in its socket. Defective bulb. Change bulb and check whether light housing is tight (avoid looking directly at UV-light for more than a couple of seconds).
- Page 15 [IMPORTANT NOTE] Please be aware of the following: Make sure that the electricity supply is stable. The purification membranes in the Bluebox 1800UF system normally have to be changed every 2 years depending on the working hours and quality of feed water. ...
- Page 16 PURE WATER – ANYTIME – ANYWHERE Much More Water A/S Staerkendevej 43 DK-4000 Roskilde • phone: +45 8020 8020 info@MuchMoreWater.com www.MuchMoreWater.com...
