Summary of Contents for ML Accessories Knightsbridge DC010
- Page 1 INSTALLATION & MAINTENANCE MANUAL DC010 / DC012 / DC013 / DC014 / DC015 / DC016 DCBPB / DCBPW / DCRB / DCRW /...
-
Page 2: General Instructions

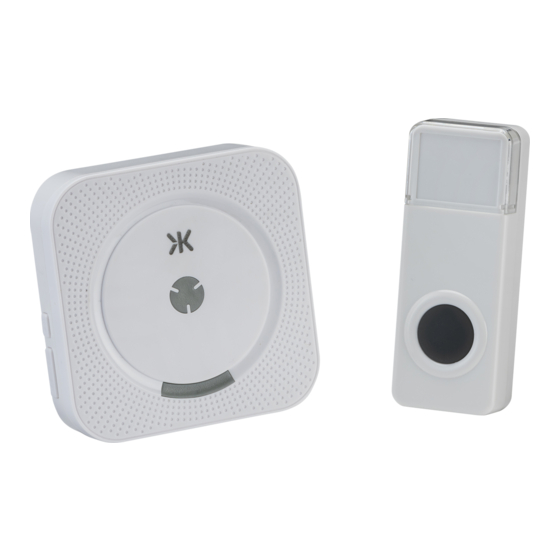

GENERAL INSTRUCTIONS These instructions should be read carefully and retained after installation by the end user for future reference and maintenance. These instructions should be used to aid installation of the following products: DC010 / DC012 / DC013 / DC014 / DC015 / DC016 / DCBPB / DCBPW / DCRB / DCRW SAFETY •... - Page 3 LAYOUT ime B15 UK Plug Door Chime 81mm Plug-in receiver AC plug Volume control button 81.5mm 81.5mm Previous melody button Next melody button Speaker Battery Powered Door Chime 56mm Battery operated receiver .5mm Speaker Fixing holes 81mm Volume control button Previous melody button Next melody button Battery...
-
Page 4: Battery Installation
81.5mm 81.5mm 26.2mm 26.2mm PIR motion sensor Indoor PIR HP04D Indoor PIR HP04D LED indicator Motion detector 52.16mm 52.16mm Test button Front cover screw 112.4mm 112.4mm 42mm 42mm BATTERY INSTALLATION Bell push Outdoor PIR FS03D Outdoor PIR FS03D • Using the screwdriver provided, insert into the hole between the button cover and base of the bell push and tilt downwards to open the cover •... - Page 5 Receiver • Press the two holding clips on the battery cover on the rear of the receiver and pull open • Insert 3 x AAA batteries (not included) • Replace cover Mounting bell push • When using screws and wall plugs provided to attach to a surface, open the bell push and pierce the two fixing holes on the baseplate of the bell push •...
- Page 6 Mounting battery operated receiver • Measure the distance between the fixing centres on the rear of the receiver and mark the location for, and drill the fixing holes ensuring not to infringe with any gas/water pipes or electrical cables • Using the screws and wall plugs provided insert the screws leaving the head of the screw exposed •...
-
Page 7: Warranty
ML Accessories does not accept responsibility for any installation costs associated with the replacement product. Your statutory rights are not affected. ML... - Page 8 SUPPLIED BY: (UK) MANUFACTURER ML ACCESSORIES LTD, UNIT E CHILTERN PARK, BOSCOMBE ROAD, DUNSTABLE LU5 4LT, WWW.MLACCESSORIES.CO.UK (EU) AUTHORISED REPRESENTATIVE SLV LIGHTING GROUP, DAIMLERSTRASSE 21-23, 52531 ÜBACH-PALENBERG, GERMANY EMAIL: EPREL@GROUP.SLV.COM AKJUL22_V2...
- Page 9 The product complies with all essential requirements of the directives. Scott Brewer Catherine Connolly Technical Manager ML Accessories Ltd. Unit E Chiltern Park, Boscombe Road, Dunstable. Bedfordshire, LU5 4LT This declaration becomes invalid if technical or operational modifications are introduced without ML Accessories Ltd. written consent.
- Page 10 The products comply with all essential requirements of the directives. Scott Brewer Catherine Connolly Head of Technical ML Accessories Ltd. Unit E Chiltern Park, Boscombe Road, Dunstable. Bedfordshire, LU5 4LT This declaration becomes invalid if technical or operational modifications are introduced without ML Accessories Ltd. written consent.
