Super Handy GUO039 Operator's Manual

Plate compactors
Hide thumbs
Table of Contents

Advertisement

Quick Links

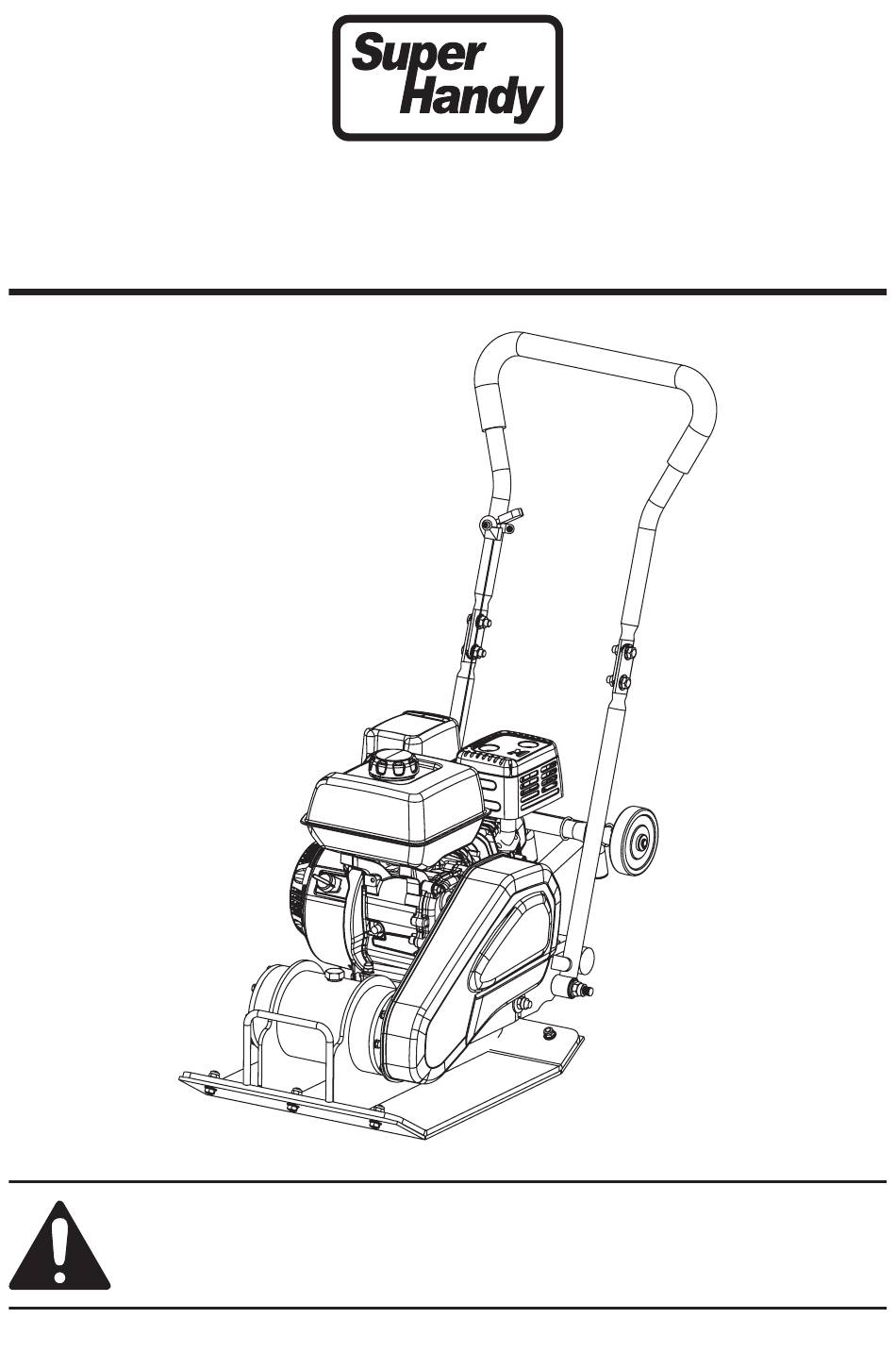

Plate Compactors
Operator's Manual
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
REV 02/12/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GUO039 and is the answer not in the manual?

Questions and answers

John
June 11, 2025

What is the belt number and size for GUO039

0

Summary of Contents for Super Handy GUO039

  • Page 1 Plate Compactors Operator's Manual WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.

  • Page 2: Table Of Contents

    1. The Engine Manufacturer is responsible for all engine-related issues with regards to performance, power rating, specifications, warranty and service. Please refer to the Engine Manufacturer's owner/operator's manual, packed separately with your unit, for more information. Specifications Item No. GUO039 Plate Size 20"×15" Centrifugal Force 4200lbf Exciter Speed...

  • Page 3: Features

    Features Throttle Control Operation Handle Muffler Air Cleaner Fuel Tank Belt Guard Exciter Base Plate Environmental Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be resorted, taken to the local recycling center and disposed of in an environmentally safe way.
  • Page 4 It is forbidden to remove or tamper Read these instructions with the protection devices and for use carefully. safety devices. Wear eye protection. Keep away from rotating parts. Wear hearing protection. Do not touch parts which are hot Wear protective gloves. from operation.
  • Page 5 7. Form a habit of checking to see that keys and adjusting wrenches are removed from machine area before starting it.A wrench or a key that is left attached to a rotating part of the machine may result in personal injury. 8.
  • Page 6 21. Use only attachments and accessories approved by the manufacturer. Failure to do so can result in personal injury. 22. Maintain the machine. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the machine's operation. If damaged, have the machine repaired before use.

  • Page 7: Contents Supplied

    Contents Supplied The plate compactor comes partially assembled and is shipped in carefully packed carton. After all the parts have been removed from the carton, you should have: 1. Plate Compactor Chassis with Engine and Transmission 2. Handle 3. Handle Bracket 4.
  • Page 8 Place the wheel set (A) and handle bracket (B) on the inside and outside of the engine base plate (C), align the shaft sleeve hole and the base plate hole (D), thread the two threaded shafts (E) into them, then fasten them with an M12 flat washer (F) and M12 hex lock nut (G) at both ends of the shaft.
  • Page 9 2. Handle Place the handle (A) on the inside of the bracket (B) and align the mounting holes. Fasten with 4pcs M10 × 25 hexagon head flange bolts (C) and 4pcs M10 hexagon flange lock nuts (D). 3. Throttle Control Install the Throttle Control (A) on the handle (B) and fasten it with the bolts provided by the Throttle Control.

  • Page 10: Compactor Operation

    Compactor Operation Adding fuel 1. Fill the fuel tank as instructed in the separate Engine Manual packed with the Plate Compactor. 2. More detailed description of the engine operation and all related precautions and procedures can be found in the Engine Manual packed separately with the unit. Starting Engine 1.

  • Page 11: Maintenance

    Do not move choke control to CLOSE to stop engine. Backfire or engine damage may occur. Idle Speed Set throttle control lever to its "low" position to reduce stress on the engine when compacting is not being performed. Lowering the engine speed to idle the engine will help extend the life of the engine, as well as conserve fuel and reduce the noise level of the machine.
  • Page 12 2. Loosen the jam nuts （A）, leaving enough space between the nut and bracket（B）. 3. Push engine toward the back of the plate to remove any slack in V-belt. 4. When adjusting the belt, make sure that the clutch pulley is in alignment with exciter pulley. 5.
  • Page 13 Replacing V-Belt 1. Loose 4 engine mount bolts (do not remove) only enough to move the engine forward. 2. Loosen the jam nuts A shown in above figure. 3. Slide the engine toward the front of plate and slip the old V-belt off of the wheel pulley and install the new V-belt in their place.
  • Page 14 5. Remove pipe plug（D） from top of exciter housing. Tilt housing upside down so oil drains from exciter. Examine oil for metal chips as a precaution to future problems. 6. Return plate housing to the upright position. 7. Fill the exciter housing with exciter oil. Do not overfill-overfilling can result in excessive temperatures in the exciter.

  • Page 15: Storage And Transporting

    Storage If the plate compactor will not be used for a period longer than 30 days, following the steps below to prepare your unit for storage. 1. Drain the fuel tank completely. Stored fuel containing ethanol or MTBE can start to go stale in 30 days.

  • Page 16: Trouble Shooting

    Trouble Shooting Problem Cause Remedy Engine fails to start. 1. Spark plug wire disconnected. 1. Attach spark plug wire securely to spark plug. 2. Out of fuel or stale fuel. 2. Fill with clean, fresh gasoline. 3. Throttle control lever not in 3.

  • Page 17: Parts Breakdown

    Parts Breakdown...
  • Page 18 Part No. Description Q’ty M8x25 hex flange bolts Compactor base M8 Non-metallic insert hex flange lock nut Base rubber block M10 Type 1 Non-metallic insert hex lock nut Engine base M8 Flat washer M8 Standard elastic washer M8 Type 1 Non-metallic insert hex lock nut Two-end threaded shaft M12 Flat washer M12 Type 1 Non-metallic insert hex lock nut...
  • Page 20 Great Circle USA Support Line: 1-866-493-0524 superhandy@greatcircleus.com www.greatcircleus.com Size: 145x210mm 157克铜版纸 REV 02/12/20...
