Summary of Contents for PondXpert PondMaster PXVACMASTER-NS

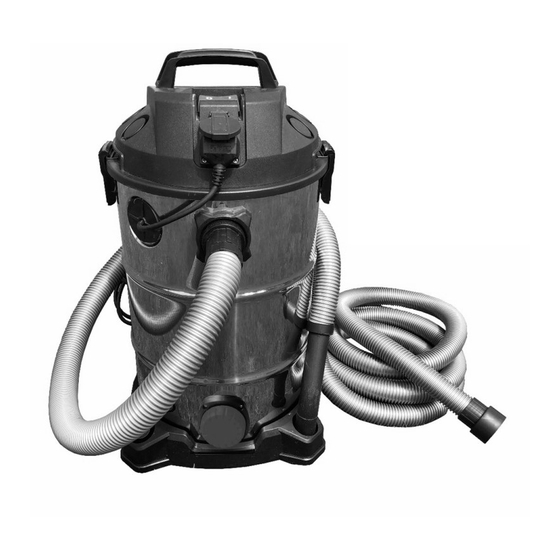

- Page 1 PondMaster Non-Stop Pond Vacuum Outdoor Pond Vacuum with Pressurised Pump Discharge Outlet PXVACMASTER-NS This Book Contains Important Information Regarding: SAFETY, ASSEMBLY, OPERATION, MAINTENANCE and WARRANTY POLICY. Please read and keep this book safe.
- Page 3 Pump inside chamber Dark blue porous ‘leaf collector’ White fine bag designed to bag (18) fits onto inlet inside fit onto end of outlet pipe vac chamber to catch micro dirt particles...
- Page 5 Handle ON/OFF switch Motor head. 1200 watts, rated voltage: 230V~50Hz, cable length 4.0 metres Filter cage Safety float valve Lid Locking clips Main body collection tank, 35 litre capacity Suction hose plug-in connector entry hole Suction hose. Dia 35mm /4.0 metres long 10 Discharge hose.
- Page 6 Foam Collar(14) must be attached to unit head as shown above (a) 1 & 2 Porous dirt bag(dark blue) can be used to catch leaves & large particles. It should be fixed inside chamber, around dirt water inlet as show, Discharge bag(white) can be used by clipping onto end of outlet pipe –...
- Page 7 Thank you for purchasing this pond vacuum cleaner, a high-quality product based on the newest state-of-the-art technology. The vacuum cleaner is suitable for use in garden ponds, but can also be used to empty large amounts of water quickly – eg, hot-tubs. Please read the following instructions carefully and thoroughly.
- Page 8 Do not suck up flammable, explosive, poisonous or health hazardous materials with the device. We take no responsibility for any damage to persons and objects, caused by incorrect use of the device or by not observing these operating instructions. 2.
- Page 9 in the motor-head/lid of the product.(Fig. 11) Once the above has been completed, plug the device into the RCD. Place the lance into the part of the pond/water first, then to start the motor, push the on/off switch to position I ‘ON’...
- Page 10 If your pondXpert vacuum fails please take it back to the retail outlet from where it was purchased. You will be required to take your receipt/proof of purchase with you.
