Summary of Contents for AirCom BP Series

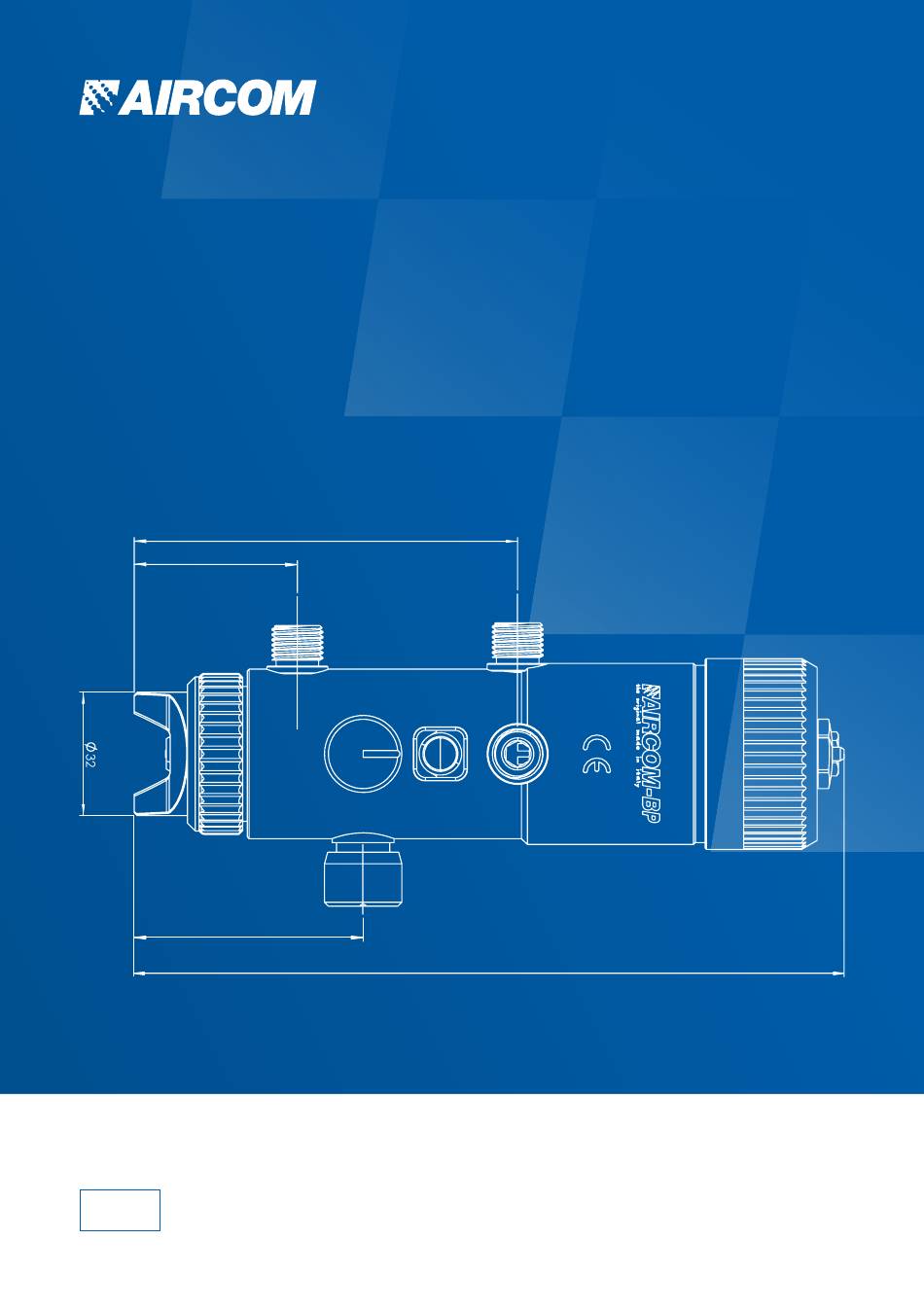

- Page 1 CONVENTIONAL SPRAY GUNS BP series Instruction manual mod. BP, BP-X, BP-XC aircom.it...
-
Page 2: Available Models
AVAILABLE MODELS mod. BP Fan and atomization air adjustment mod. BP-X Stainless steel internal passages mod. BP-XC Stainless steel internal passages and spray head AIRCOM - INSTRUCTION MANUAL - 2022 - v. 1.0 ®... - Page 3 BP series BP series Index Instruction Manual Warnings Maintenance and cleaning Installation and start-up Technical data Troubleshooting Spare parts and components Certified quality Support WARNINGS! Carefully read and follow all instructions and safety precautions before using the product. MANUALS Our manuals are available at aircom.it/en/support/manuals/...
-
Page 4: Health Hazard
6-8. Do not use the compressed air supply, and the acids, alkaline solutions or other cleaning liquid supply. Use only original AIRCOM agents containing sodium hydroxide, ® accessories, spare parts, and related... -
Page 5: Installation
BP series INSTALLATION TECHNICAL SPECIFICATIONS Connection hole diameter: 10,5 mm. Size of pipe junctions: • Control air inlet: = ¼ gas • Atomizing air inlet: = ¼ gas • Product inlet: = ¼ gas Gun weight: 0,920 kg Gun size: see dimensioned views VIDEO TUTORIALS ►... -
Page 6: Installation And Start-Up
BP series INSTALLATION AND STARTUP Before using a new gun or a new product, clean the gun thoroughly with an appropriate solvent. Powering should be done with dry, filtered air and regulated to constant pressure. DIRECTIONS FOR GUN OPERATION Pipe Ø 6 ÷ 8 Plunger opening ≥... -
Page 7: Adjustment Sequence
BP series ADJUSTMENT SEQUENCE Lock the gun to the system using the fastening bracket and orient the head towards the appropriate coverage direction. Connect the atomization air, control air and product piping to the junctions shown on the previous page. -
Page 8: Technical Data
BP series TECHNICAL DATA HEAD K-I HEAD SHOTS FLOW RATE OF ATOMIZATION ø NOZZLE THE FLUID PRESSURE CONSUMPTION (g/min) (kg/cm²) (L/min) ø 1,75 1,85 ø 2,35 ø 2,75 2,85 ø NOTES Pump pressure 0.8 to 1.0 Kg/cm². Liquid used for testing: water. Ford cup viscosity 4 = 11 sec. - Page 9 BP series TECHNICAL DATA HEAD Z-I HEAD SHOTS FLOW RATE OF ATOMIZATION ø NOZZLE THE FLUID PRESSURE CONSUMPTION (g/min) (kg/cm²) (L/min) ø 1,75 ø 1,95 ø 2,45 ø NOTES Pump pressure 0.8 to 1.0 Kg/cm². Liquid used for testing: water. Ford cup viscosity 4 = 11 sec.
-
Page 10: Troubleshooting
BP series TROUBLESHOOTING Anomaly Problem / Solution No pressure is getting to the gun Check air system No atomization Valve part. [43] worn out Replace valve part. [43] worn out The head part. [30], the nozzle part. [2] and the rod part. [31] are worn out. - Page 11 CONVENTIONAL SPRAY GUNS BP series mod. BP, BP-X, BP-XC Spare parts and components aircom.it...
-
Page 12: Spare Parts
BP series SPARE PARTS mod. BP DETAILS LIST [x1] Nozzle [x1] Ferrule [x2] Adjusting screw [x1] Stopper [x1] Head [x1] Rod [x1] Gasket cover ring [x1] Valve [x1] Mounted Plunger [x1] Seeger [x1] Gasket [x1] Gasket [x1] Spring [x1] Mounted Hand wheel... - Page 13 BP series SPARE PARTS mod. BP-X DETAILS LIST [x1] ozzle [x1] Ferrule [x2] Adjusting screw [x1] Stopper [x1] Head [x1] Rod [x1] Gasket cover ring [x1] Valve [x1] Mounted Plunger [x1] Seeger [x1] Gasket [x1] Gasket [x1] Spring [x1] Mounted Hand wheel...
- Page 14 BP series SPARE PARTS mod. BP-XC DETAILS LIST [x1] Nozzle [x1] Ferrule [x2] Adjusting screw [x1] Stopper 30-X [x1] Stainless steel head [x1] Rod [x1] Gasket cover ring [x1] Valve [x1] Mounted Plunger [x1] Seeger [x1] Gasket [x1] Gasket [x1] Spring...
- Page 15 BP series COMPATIBLE CNN Cap-Nozzle-Needle mod. BP, BP-X NOZZLE NEEDLE NOZZLE NEEDLE NOZZLE NEEDLE NOZZLE NEEDLE aircom.it Spare parts and components - 15...
- Page 16 BP series COMPATIBLE CNN Cap-Nozzle-Needle mod. BP, BP-X NOZZLE NEEDLE 16 - Spare parts and components aircom.it...
- Page 17 BP series COMPATIBLE CNN Cap-Nozzle-Needle mod. BP-XC NOZZLE NEEDLE NOZZLE NEEDLE aircom.it Spare parts and components - 17...
-
Page 18: Certified Quality
BP series CERTIFIED QUALITY CERTIFICATIONS THREE-COLOR INSERT AIRCOM products certified Each gun is marked with a three-color ® according to norm EN 13 966 - 1 (VDMA- three-dimensional seal. It represents an Einheisblatt 366) therefore additional guarantee of authenticity and... - Page 19 AIRCOM SRL © 2022 - ALL RIGHTS RESERVED...
- Page 20 DISCOVER ALL PRODUCTS Follow us aircom.it...
