MAD REVOLVE User Manual

madheaters.co.uk

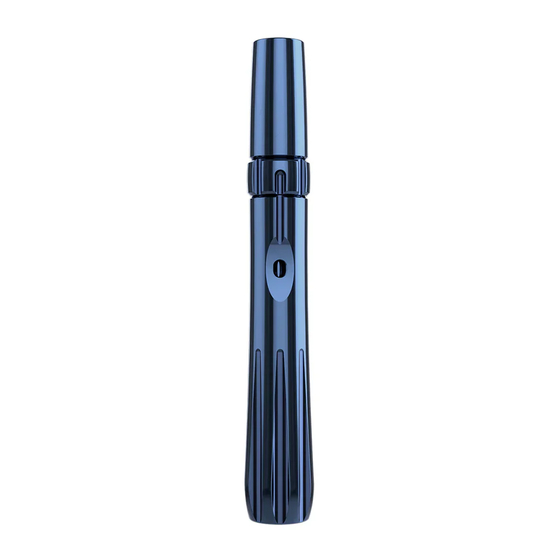

REVOLVE
USER MANUAL
TECHNICAL SPECIFICATIONS
• Length: 80mm / 109mm with Tip (XL Size)
• Width: 12mm (at widest point)
• Material: Grade 5 Titanium
• Weight: 18.5g / 0.65oz
• O-rings: Heat resistant, isopropyl alcohol safe
1
Sleeve
2
Cooling Unit
3
Mouthpiece
4
DRC Airflow Tube
5
Secondary Cooling Unit
6
Cooling Fins
7
Airport
8
Reclaim Filter Screen
9
Reclaim Filter Posts
1
7
6
10 Cooling Helix
11 Adjustable Airport
12
DRC Aperture
13
Adjustment Ring
14
DRC Indicator
15
DRC Internal Aperture
16
O-ring Locking Groove
17
O-ring Storage / SCU Lock
18
Secondary DRC Indicator
2
8 9 10 11 12
BEFORE FIRST USE
Please clean each part of your Stem thoroughly with isopropyl alcohol to remove
every trace of residue from the machining and coating process.
You will need to provide your own DYNAVAP Tip and Cap combination to
complete the Revolve Stem.
CLEANING AND CARE
Soak the Stem in isopropyl alcohol for at least 30 minutes using the cleaning /
storage tube or a zip-lock bag. Shake it periodically for a thorough clean. If you
are cleaning the Glass Sleeve, only shake it carefully to protect the glass from
accidental damage. Drain the solution, rinse the parts with hot water and dry
them completely before reassembling.
You can soak the DYNAVAP Tip alongside the Stem, but never submerge a
DYNAVAP Cap in any cleaning solution
For a quick clean, dip the Cooling Unit in cleaning solution and use a paper towel
to 'twist off' the spiral. Then use q-tips with some cleaning solution to clean the
rest of the parts.
We recommend that you only remove the Cooling Unit from the Sleeve when you
intend to clean it. Do not remove the o-rings when cleaning the Stem, they are
isopropyl alcohol safe.
Do not soak Wood Sleeves in cleaning solution, just clean the metal liner with a
q-tip or pipe cleaner. Regularly apply a small amount of wood wax to the outside
of the Wood Sleeve to avoid cracking.
WARNING
MAD Heaters products and accessories are only intended for individuals who are
18 years of age or older. If you experience any side effects or possible side effects,
stop using the product immediately and consult a physician. Please be
responsible and keep out of reach of children and pets.
USE OF THIRD PARTY TERMS
DYNAVAP is a registered trademark of Dynavap LLC and is only used here in
accordance with fair use policies.
ADDITIONAL INFORMATION
• Please be aware that the Cooling Fins may get hot during use. This is
intentional, they are designed to dissipate heat from your vapor.
• Before removing the Cooling Unit do a full turn on the Adjustment Ring to
remove the excess reclaim from the side of the spirals. This will help with
removing and re-inserting the Cooling Unit when it's done without cleaning.
• If the Cooling Unit is difficult to turn or remove from the Sleeve then try
warming it up with another session, heat can help loosen the build-up. Alterna-
tively soak in isopropyl alcohol.
• NEVER try to move the DYNAVAP Tip side-to-side when removing it from the
Glass Sleeve, it might break it. Only pull and twist.
• If your DYNAVAP Tip is loose or does not have enough friction, switch the grey
o-rings for the black o-rings for a slightly tighter fit.
• To remove the inner o-ring that is located behind the Adjustment Ring, please
use a needle or sharp tweezers.
• The Mouthpiece is compatible with 10mm WP connections.
• The 12mm wide Glass Sleeve may be used with other vaporizers that has
12mm WPA connection.
• If your Stem needs cleaning, you may try the other Airflow Tube for a clean
vapor path.
3
13 14
15
4 5
16 17 18
