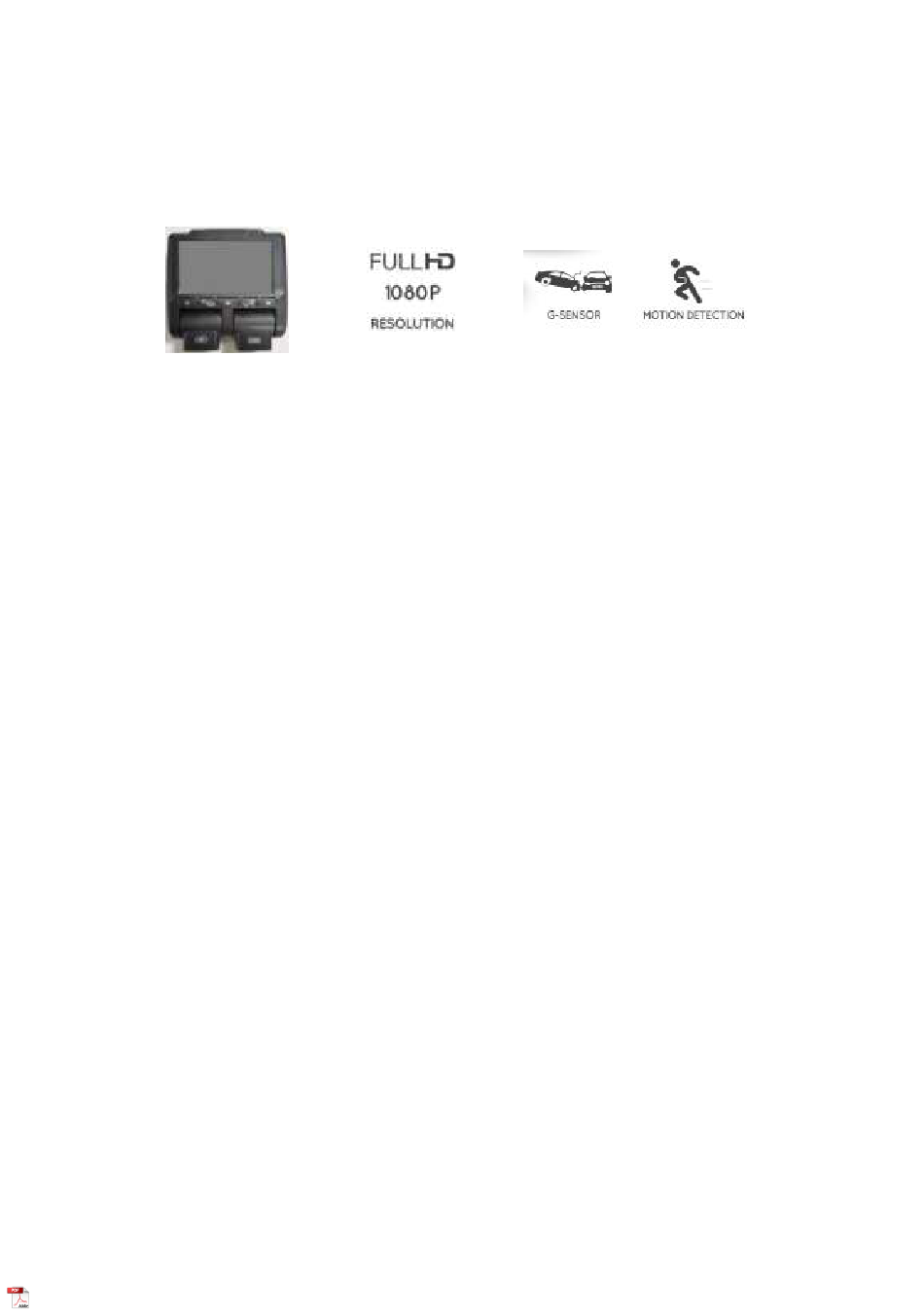

4K Dash Camera
Caution
Ensure you are using your Car DVR within your countries' road laws. Please make
sure you are familiar with your local road legislation before use.
Avoid leaving your Car DVR in direct sunlight for extended periods of time in an
unventilated space.
Please set time and date before you use this device to record.
The notification given by the Car DVR are suggestions only, please drive to actual
conditions.
The system is to be used only for non-commercial use, within the limits permitted by
the relevant laws.
Avoid using the Car DVR in the vicinity of any devices that emit radio interference
(eg.Microwave Ovens).
It is considered normal operation for the Car DVR to get warm during use.
Battery Warning
Always charge the car DVR using the provided charger. Importing charging of the Car
DVR may result in failure of the internal battery.
Never dismantle the Car DVR or expose the internal battery.
Do not dispose of the Car DVR in fire.
Dispose the Car DVR observing local regulations being mindful of the internal battery.
Do not attempt to replace or expose the internal battery.
Note on installation
1.It is advised that the Car DVR is installed near the rear view mirror, at the top centre of
the windshield for optimal operation.
2.Make sure that the lens is within the range of the windscreen wiper to ensure a clear
view when it rains.
3.Do not touch the lens with your fingers, fingers prints left on the lens will result in unclear
videos or photos. If photos or videos are blurred, please clean the lens gently with a
microfibre cloth.
4.Only use the included charging cable to power the Car DVR.
User Instruction
TE-DVR-DL4K
Advertisement
Table of Contents
Summary of Contents for Metra Electronics TE-DVR-DL4K
- Page 1 User Instruction 4K Dash Camera TE-DVR-DL4K Caution Ensure you are using your Car DVR within your countries’ road laws. Please make sure you are familiar with your local road legislation before use. Avoid leaving your Car DVR in direct sunlight for extended periods of time in an unventilated space.
-
Page 2: Getting Started
1. Introduction Thank you for purchasing our Car DVR. We are certain that our product will give you trouble free operation while providing you with a safety feature that enhances your driving experience. Our products, like most after-market safety enhanced devices, are designing to assist and aid the driver, not to replace the manual function of the person operating the vehicle. -
Page 3: Installing The Car Dvr
2.2 Installing the Car DVR 2.2.1 .Remove the protective stickers from the Car DVR and protective paper from suction mount. 2.2.2 Find a right position on the windscreen and fix it. 2.2.3 Adjust the device position 1).Adjust the horizontal view angle by turn the camera left & right. 2).Adjust the vertical view angle by move up and down on the mount or sticker. - Page 4 3.1 Video mode The device will automatically start recording after the car is started, and the red ◆ recording icon will flash in the upper left corner of the screen during recording. During the recording process, press [OK] once to stop recording, and the camera will ◆...
- Page 5 In the main menu of the Recording Mode, press to adjust to the “Resolution”, ◆ when its background color turns blue, press the [OK]. Short press to choose the resolution, and press [OK] to confirm. ◆ Short press the to return to homepage of the VIDEO mode. ◆...
- Page 6 4.1.4 Motion Detection (Off/ On) In the main menu of the Recording Mode, press to switch to the “Motion ◆ Detection”, when its background color turns blue, press the [OK]. to adjust to the option that needs to be set, and press [OK] to confirm. press ◆...
- Page 7 confirm. Note: This function adjusts the sensitivity of the machine to automatically lock the image during video recording. Automatically locking the image when the high sensitivity is set may cause the memory card to be full and not loop recording. 4.1.6 WiFi (Off/ On) In the main menu of the Recording Mode, press to adjust to the “WiFi”...
- Page 8 4.2.2 Exposure Comp (-1/3, -2/3, -1.0, -4/3, -5/3, -2.0, +0.0 +1/3, +2/3, +1.0, +4/3, + 5/3,+2.0) In the main menu of the Photo Mode, press to adjust to the “Exposure Comp” , ◆ when its background color turns blue, press [OK]. After entering the EV value, you can set the EV value between -2 and +2, and press ◆...
- Page 9 4.3 Playback Mode 4.3.1 Delete (Delete Current/ Delete All) In the Playback Mode, press to enter the main menu. ◆ In the Playback Mode menu, press to the “Delete” option, when its background ◆ color of turns blue, press [OK]. to choose delete current or all, and press [Cancel] / [OK] to confirm.
- Page 10 Setting the Time and Date allows you to stamp your footage with the time as a reference. In the System Setting Menu, press to enter slide show, when its background ◆ color turns blue, press [OK] to confirm. Press to adjust the Year, then short press to confirm, and press [OK] ◆...
- Page 11 Note: This function is set to eliminate the flickering or ripple problem of the light in the video screen. 4.4.4 Screen Save (Off/ 1 Minute/ 3 Minutes/ 5 Minutes/ 10 Minutes) In the System Setting Menu, press to select the setting options of the screen ◆...
-
Page 12: Playing Back Video On A Pc
In the System Setting Menu, press to switch to the “Format” option, when the ◆ format background color turns blue, press [OK] to confirm. Display the memory card options, press [OK] to confirm, and then press to select ◆ cancel or confirm. After selecting and confirming, press [OK] to confirm, and the memory card will be ◆... -
Page 13: Connecting Camera To Pc
6. Connecting camera to PC After the SD card is inserted into the camera, connect it to the computer with a USB ◆ cable. At this time, two options will appear on the camera's screen: Storage: A removable disk will appear on the computer, and the device will enter U disk mode. -
Page 14: Specification
8. Specification IPS screen 3inch 4K+ FHD P25/ QHD+FHD P30/ FHD P30+FHD P30 Resolution Video Format Video zip Format H.264 TF card Class10, 8GB-32GB(max) Frequency 50Hz/60Hz USB2.0 High-speed. Power cable 5V/1A Battery Polymer Video voice One-click close Built-in recording Hi-Fi Speaker Working system Windows XP/7/Vista or Other Storage... - Page 15 -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. FCC ID: 2AHL8-TE-DVR-DL4K...
