AR Blue Clean 600 Series Assembly, Care And Use Instructions

Cart and accessories kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

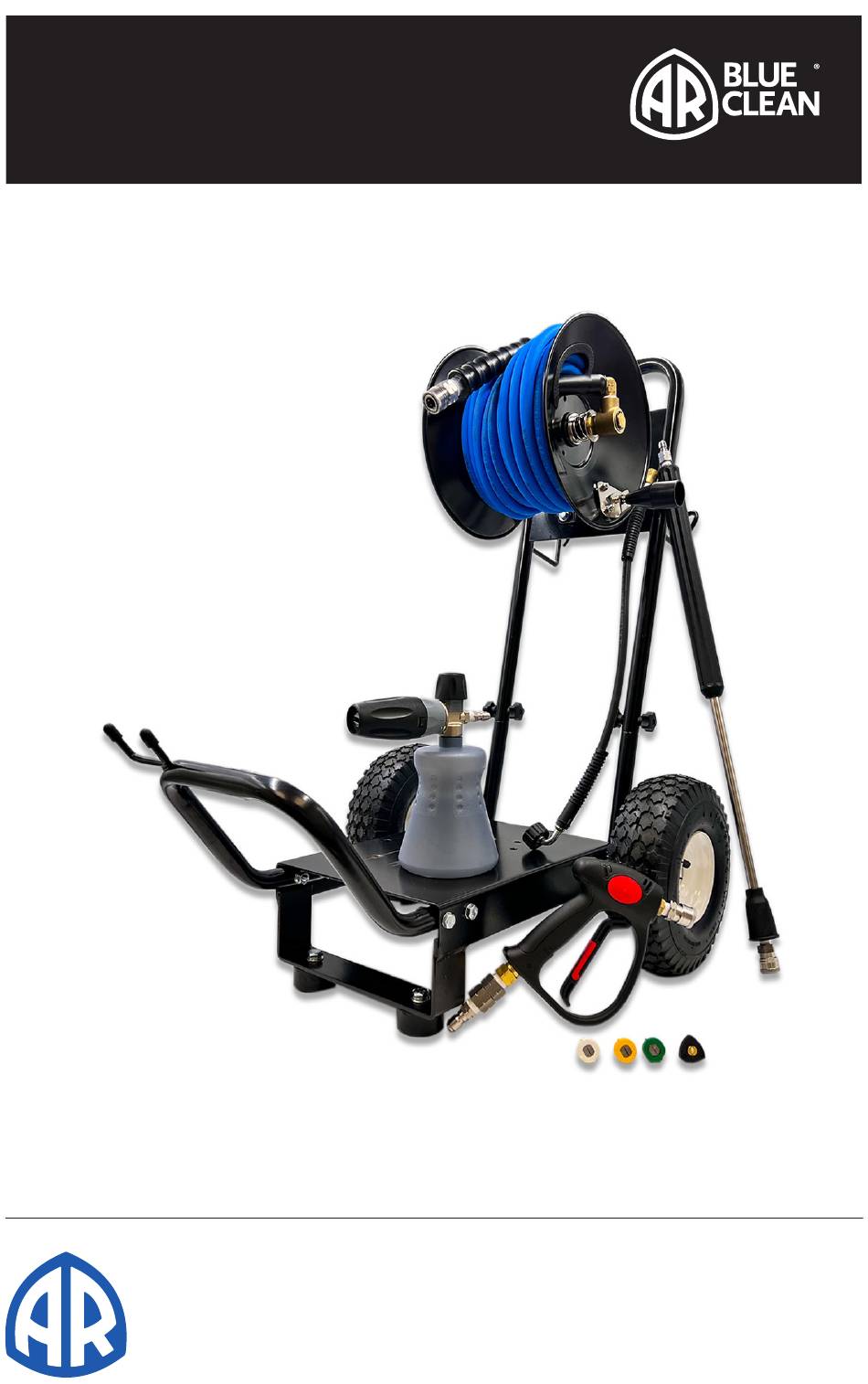

PRO600-CCRT
600 Series Cart and Accessories Kit
ASSEMBLY, CARE AND USE
INSTRUCTIONS FOR
PRO600-CCRT
SPECIAL EDITION
READ CAREFULLY
IMPORTANT:
INSTRUCTIONS AND ATTACH RECEIPT
TO MANUAL FOR FUTURE REFERENCE.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service department
at 1-866-235-5112, 8 a.m. - 5:00 p.m., CST, Monday - Friday.
www.arblueclean.com
RETAIN THESE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 600 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for AR Blue Clean 600 Series

  • Page 1 PRO600-CCRT 600 Series Cart and Accessories Kit ASSEMBLY, CARE AND USE INSTRUCTIONS FOR PRO600-CCRT SPECIAL EDITION READ CAREFULLY IMPORTANT: RETAIN THESE INSTRUCTIONS AND ATTACH RECEIPT TO MANUAL FOR FUTURE REFERENCE. Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-866-235-5112, 8 a.m.

  • Page 2: Important Notice

    able of onTenTs Safety Instructions Included in the Box Assembly Operating Instructions Troubleshooting Pressure Washer Limited Warranty Warranty Returns Notes 13-15 Important Notice Winterizing or long time storage: Drain all water out of your pump. Flush pressure washer with a 50/50 mix of RV antifreeze and water. Relieve system pressure by squeezing gun trigger.

  • Page 3: Safety Instructions

    afeTy nsTruCTIons Read and understand these instructions as they pertain to safety. Pay special attention to the safety symbol throughout this manual. Failure to comply with these instructions may result in personal injury or property damage. DO NOT allow children to operate or play on or around this equipment.
  • Page 4 afeTy nsTruCTIons Never spray flammable liquids. Do not operate this machine in or around an explosive environment. Position the machine in an area that is protected from external damage. Always place the machine on a level surface. Do not move the unit by pulling on the hose or electrical cord. Never use the unit when under the influence of drugs, alcohol, or medication.
  • Page 5 nCluded In The Box Weight: 61lbs | Box Dimensions: 29x23x23” Trigger Gun Wand and Nozzle Protector Soap 15° 25° 40° Injection Foam Cannon Kit Size 3.5 Nozzles (Pre-assembled size 1.5) (Pre-attached to cart) Cart Base Cart Top/Reel ARBB539114-B Mounting Studs AR3120110 Nut Mounting Hardware ARVC-312-8 Cap...

  • Page 6: Cart Assembly

    ssembly (noT suPPlIed) equIred ools for ssembly Wrenches: Optional: 10mm Wrench Rubber Mallet 13mm Wrench 4mm Allen Wrench 17mm Wrench Phillips Screwdriver ssembly Remove all cart components from the box. Gather necessary tools and parts for assembly listed above. *For ease of assembly, Cart Base and Cart Top/Reel have been pre-assembled.
  • Page 7 ssembly Attach the 22” black jumper hose to the outlet of the unloader. Hand tighten until secure. ssembly Assemble the gun by attaching the wand to the gun outlet by pulling back the collar of the quick connect. Choose one of the included 3.5 nozzles and attach to the end of the wand.
  • Page 8 PeraTInG nsTruCTIons sInG annon Mix preferred detergent with fresh, clean water in foam cannon bottle and shake contents thoroughly. Ensure suction tube is in place in the foam cannon body, and screw the bottle into the body. Connect foam cannon to end of wand by pulling back the collar on the quick connect, and foam away! When foaming is complete, remove the bottle from the body and squeeze trigger on spray gun to allow clean water through...
  • Page 9 PeraTInG nsTruCTIons leanInG Nozzles: The gun nozzles included with your pressure washer provide optimum results for universal cleaning applications. If used with after-market parts, results may vary. Chemicals: Cleaning agents are most effective when the surface is rinsed first to loosen dirt. After pre-rinsing to loosen dirt, then clean with the detergent.

  • Page 10: Troubleshooting

    roubleshooTInG ressure auses oluTIons Plugged Nozzle. Clean and check for blockage. Insufficient flow of water to Increase water flow to the pump. the pump. Plugged inlet screen. Pull out and clean screen carefully. Using restrictive supply hose. Use larger diameter supply hose. Remove valve caps.
  • Page 11 ressure asher ImITed arranTy ☑ AR600 Series Electric Pressure Washers come with a 1 Year Commercial Warranty. ☑ Electric Pressure Washer Accessories come with a 90 Day Warranty. ☑ Warranty is to the original purchaser and is non-transferrable. ☑ Warranty Claim may require product inspection by the Manufacturer. (See Liability) Warranty Conditions: •...

  • Page 12: Warranty & Returns

    ressure asher ImITed arranTy Customer Return Liability: ☑ Pumps and Accessories must have a Return RMA# ☑ Pumps must be shipped back with Shipping plug ☑ Shipments without RMA# will be denied ☑ Under no circumstance will the manufacture bare any responsibility for loss of unit, loss of time or inconvenience in any manner.
  • Page 13 oTes...
  • Page 14 oTes...
  • Page 15 oTes...

This manual is also suitable for:

Pro600-ccrt special edition
