Summary of Contents for WHISPER KOOL WK 2500
- Page 1 2500 CABINET SYSTEM OWNERS’S MANUAL USE WITH WHISPERKOOL WINE CABINETS ONLY...
- Page 2 We manufacture, test and certify 100% of our wine cooling units in the USA. By sourcing the best components and closely controlling our manufacturing processes, we can assure the highest-quality, lowest defect manufacturing rates in the industry. Copyright © 2022. WhisperKOOL. All rights reserved. WhisperKOOL copyrights this manual, the product design, and the design concepts, with all rights reserved.
-
Page 3: Table Of Contents
WK 2500 Quick Reference Guide . . . . . . . . . . . . . . . . . . -
Page 4: Wk 2500 Quick Reference Guide

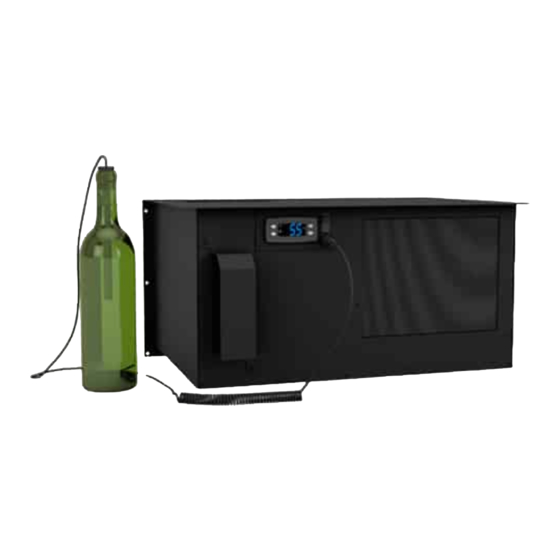

PROBE EVAPORATOR FAN SPEED SWITCH CONTROLLER DEFLECTOR BOTTLE PROBE CONNECTOR EVAPORATOR COIL MOUNTING FLANGE ACCESSORY KIT WK 2500 Contents: • (18) 1/4” x 3/8” pan-head screws • (1) 1/8” x 8-ft piece of foam tape 081022 WK 2500 Page 2... -
Page 5: Note To Customer
WK 2500 CABINET SYSTEM NOTE TO CUSTOMER Thank you for purchasing a WhisperKOOL wine cabinet unit. Our main goals are customer satisfaction and providing the best wine storage solutions on the market. If you have any questions or comments, please feel free to contact us at info@whisperkool.com. -
Page 6: Liquid Measuring Thermometer
Do not be misled by ambient temperatures that are read from the outside of the cabinet. The air temperature in the cabinet will be cooler than the liquid temperature of the wine while it’s coming to optimum balanced temperature. 081022 WK 2500 Page 4... - Page 7 WK 2500 CABINET SYSTEM WK 2500 WIRING DIAGRAM EwPlus 974 NTC Probe 1 2 3 4 5 6 7 8 9 10 11 WK 2500 BLUE BLUE BLACK POWER SUPPLY 115 VAC-60 Hz, 20A POWER CORD WHITE BLACK WHITE WHITE...
-
Page 8: System Operation
Anti-Frost Cycle timed out. The unit will run for five minutes and then enter another Anti-Frost Cycle. This sequence will continue until the evaporator temperature rises above 26°F. “Def” will be displayed during the Anti-Frost Cycle. If the 081022 WK 2500 Page 6... -
Page 9: Controller Operation
WK 2500 CABINET SYSTEM SYSTEM OPERATION (WHISPERKOOL 2500) CONT. Ambient Temperature The ambient temperature surrounding the cabinet has a direct effect on the cooling unit’s ability to cool the cabinet. The ideal temperature range for which the cabinet will be installed is between 60-85°F. Ambient temperatures above 85°F will decrease the cooling capacity of the unit. - Page 10 The alarm symbol is shown and an audible buzzer will sound when the unit encounters an ALARM issue that needs attention. The displayed alarm codes are explained on the next page. To silence the buzzer, press any button. The alarm code will remain displayed until corrected. 081022 WK 2500 Page 8...
- Page 11 WK 2500 CABINET SYSTEM ALARM CODES Message Cause Solution Bottle probe is unplugged Attach bottle probe to unit Faulty bottle probe connection 1. Check bottle probe attachment at circular connector “E1” 2. Check bottle probe connection at the back of controller...
-
Page 12: Testing The Refrigeration Unit
Loading all of the wine at once might overwhelm the cooling system. During the cool down period, the system will run constantly, depending on the size of the collection. Slow cooling maintains correct humidity within the cabinet. 081022 WK 2500 Page 10... -
Page 13: Normal Operation And Maintenance
WK 2500 CABINET SYSTEM NORMAL OPERATION MAINTENANCE The cooling unit will cycle on and off as needed once the temperature has stabilized and the initial “cool-down” has been completed. — Thermostat: Should be 55°F or desired wine temperature. Maintenance WhisperKOOL recommends cleaning the condenser filter every three months.WhisperKOOL recommends vacuuming of the condenser fins located in the rear of the cabinet every three months. -
Page 14: Troubleshooting
Low on refrigerant or Freon Customer Service Assure 15 amp outlet and not on Clicking noise during start-up Outlet power a GFI WhisperKOOL customer service: 1-800-343-9463 8 a.m. to 4 p.m. PST, Monday through Friday support@whisperkool.com 081022 WK 2500 Page 12... -
Page 15: Installation Terms And Conditions
WK 2500 CABINET SYSTEM INSTALLATION TERMS AND CONDITIONS WHISPERKOOL COOLING SYSTEM WHISPERKOOL PRODUCT BASE TERMS WhisperKOOL Corporation (“WhisperKOOL”) is in the business of manufacturing and selling wine cabinets, cooling units and related goods; each such wine cabinet, cooling unit and related good is referred to herein as a “Product”. As used herein, the term “WhisperKOOL” includes any Product sold under the names WhisperKOOL, Vinoƒ, and CellarCool. - Page 16 If you have any questions regarding these Terms and Conditions or wish to obtain additional information, contact us via phone at 1-800-343-9463 or please send a letter via U.S. Mail to: WhisperKOOL 1738 E. Alpine Ave Stockton, CA 95205 support@whisperkool.com 081022 WK 2500 Page 14...
-
Page 17: Technical Assistance
WK 2500 CABINET SYSTEM TECHNICAL ASSISTANCE WhisperKOOL Customer Service is available Monday through Friday from 6:00 a.m. to 4:00 p.m. Pacific Standard Time. The appointed customer service representative will be able to assist you with your questions and warranty information more effectively if you provide them with the following: •... - Page 18 WhisperKOOL 1738 E. Alpine Ave Stockton, CA 95205 www.whisperkool.com...
