Tusk OLYMPUS METAL PLATE Installation

INSTRUCTIONS
OLYMPUS METAL PLATE INSTALLATION
Thank you for choosing Tusk High Quality products for your adventure needs. Everyone at Tusk is dedicated
to delivering the highest quality products possible to enhance your adventure riding.
Please carefully read/follow these instructions to ensure the best experience with your new purchase.
Tusk Rack Specific Metal Plate
Hardware included
1. Metal Plate Qty: 2 5. 30mm bolt Qty: 8
2. Upper Bracket Qty: 2 6. 24mm Washer Qty: 8
3. Lower Bracket Qty: 2 7. 20mm Washer Qty: 8
4. 20mm Bolt Qty: 10 8. 13mm Lock Nut Qty: 8
Tools needed
5mm Allen/Hex Key
13mm Wrench

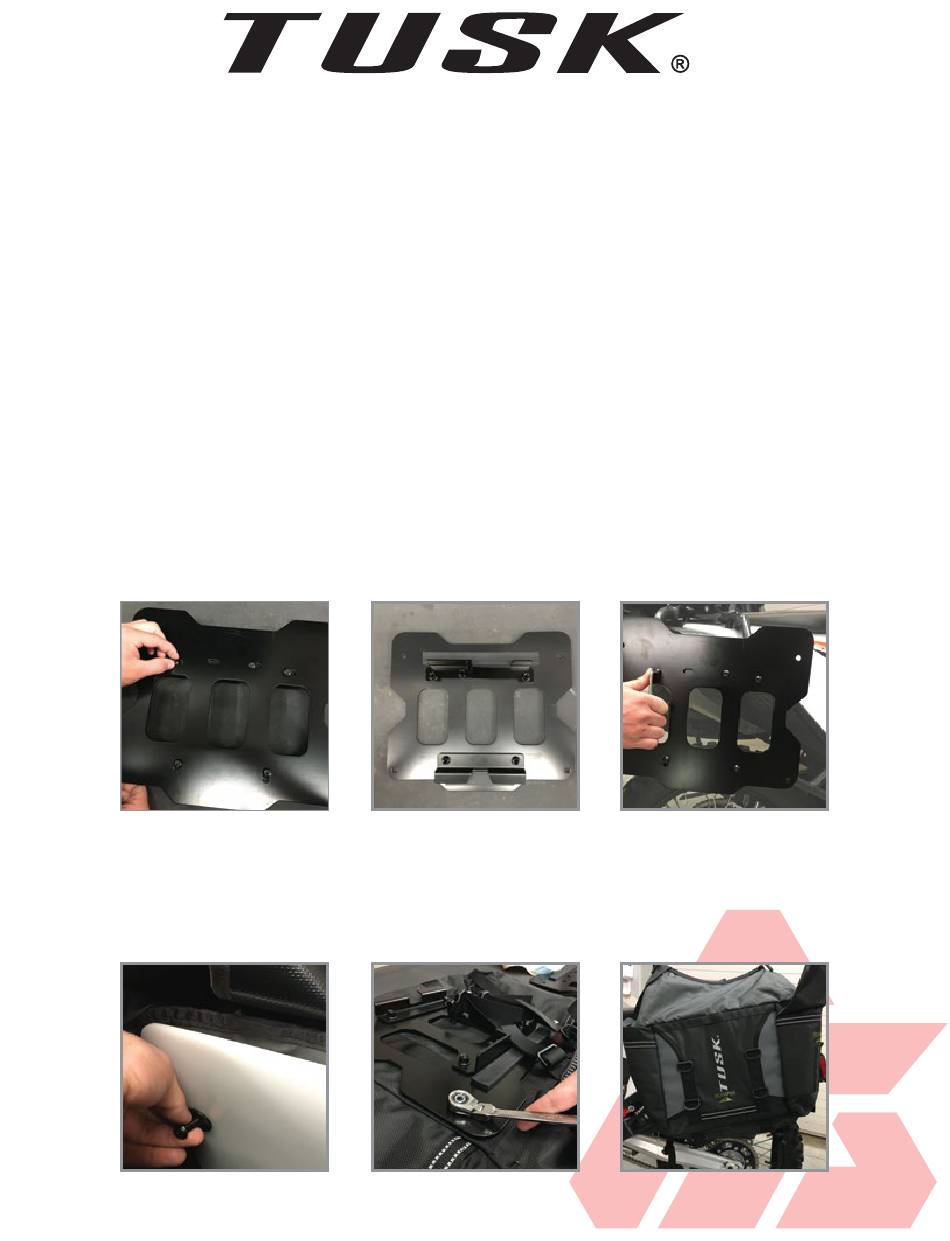

1. Ensure that the mounting brackets are fastened to the plate loosely using five (5) 20mm bolts.
2. Place the plate on the Tusk pannier rack, making sure that the plate is in a good central
location to the pannier rack hoop.
3.Tighten down the five (5) bolts so the plate is fixed in that location. Ensure the plate is
still able to be removed and re-mounted easily with minimal free play.
4. Repeat the process on the other side.
5. Remove both metal plates. Be mindful of which plate you had on which side and what bag you are mounting to it.
We recommend installing the bag so the side pocket with the drawstring is towards the front of the motorcycle.
6. Mount the bag to the plate by feeding a 30mm bolt and 24mm washer through the inside of the bag towards the
outside where you will place a 20mm washer and then loosely screw on a 13mm lock nut. Repeat the process
until all 4 corners of the bag are mounted to the metal plate, make sure no loose straps are between the bag
and the metal plate. Tighten the four (4) 13mm bolts on each bag.
1
Caution
- ** Check the bolts periodically and tighten any that may have come loose.
