Summary of Contents for SmartWay Solutions Hotspot
- Page 1 Wi-Fi Pay Terminal “Hotspot” Solution Instant...
- Page 2 Wi-Fi Pay Terminal, the best and prefect solution. Just an Internet line (ADSL/ Cable Modem) Instant “HOTSPOT”, No extra back end system, no manpower required. Just find a good location.
- Page 3 Wi-Fi Pay Terminal “Hotspot” Solution Instant...

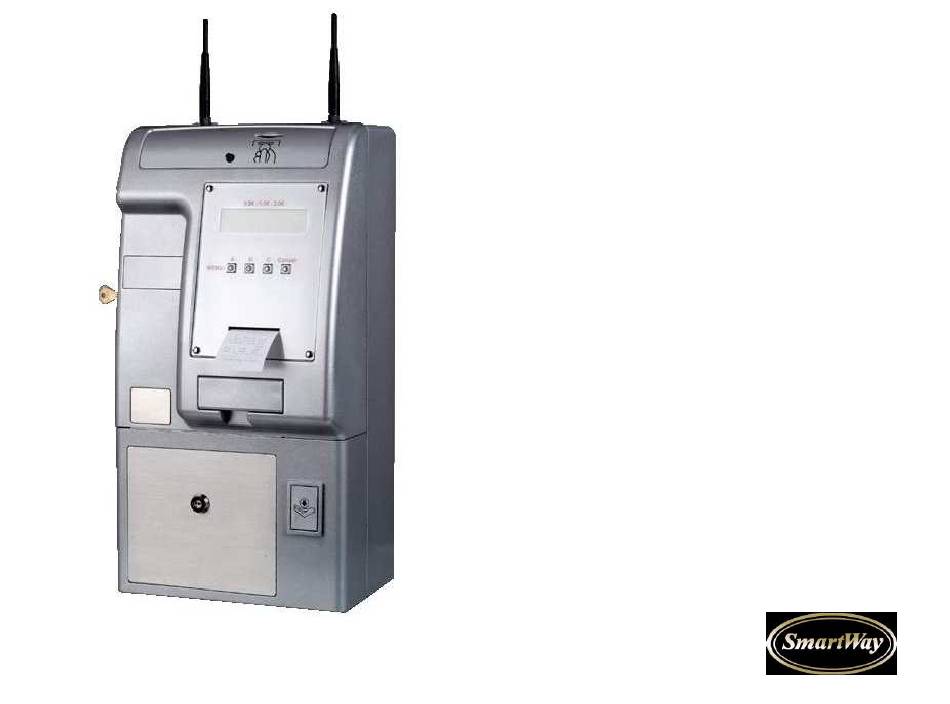

- Page 4 Coin Acceptor LCD Display Changeable Antenna Selection Button Wireless Gateway Inside (A, B, C) Cancel Button for Coin Refund Upper Door Key Upper Door Key Ticket Print out slot Coin Refund Slot Thermal Printer inside Lock for Cash Box Cash Box Inside...
- Page 5 Press one of three (A/B/C) buttons to choose connection time Make sure the amount Make sure the amount From the LCD display Insert Coin Ticket printout...
- Page 6 Basic Topology xDSL/Cable Modem...
-
Page 7: "Zero Configuration" Internet Access
“Zero Configuration” Internet Access Easy-to-Use, Plug-and-Play Internet Access Unique IP Plug&Play (iPnP) technology allows subscribers to connect with ease for broadband access without having to re-configure any of their device IP settings including DHCP, DNS, Proxy and dynamic and static IP address assignments. xDSL/Cable Modem HTTP Proxy... - Page 8 Customizable Billing Plan Each “Hotspot Owner” can customize own billing plan to suit...
- Page 9 Definable Selection Button The Hotspot owner can define the billing plan to each select buttons Button C Button C Button B Button B Button A Button A...
- Page 10 Display for Billing Plan When the subscriber press select button, the billing plan will appear on LCD display...
-
Page 11: User Account List
User Account List It provides a simple WEB interface for Hotspot owner to manage and monitor each user account. - Page 12 802.11b/g Wireless LAN xDSL / Cable Modem Cable Modem 802.11b/g Wireless Notebook with 11b/g Wireless Card Notebook with 11b/g Wireless Card...
- Page 13 Billing Mechanism Time to Finish Accumulation Two types of billing mechanism available for Hotspot owner to select to suit.
- Page 14 Time to Finish 4:00 4:10 4:20 4:30 4:40 4:50 5:00 Subscriber 60 Min(s) Expire Login Subscriber After 1 hour , subscriber will be disconnected Purchased 1 hour account and the account becomes invalid (Time to Finish) and login at 4:00...
- Page 15 Accumulation 4:00 4:10 4:20 4:30 4:40 4:50 5:00 Subscriber Subscriber Subscriber 20 Min(s) 40 Min(s) Login Logout Login Subscriber After 20 minutes, Again subscriber login to utilize the purchased 1 hour subscriber logout from the remining usage time. account network. (Accumulation) and login at 4:00...
- Page 16 Extend Service Coverage Extend Wireless Coverage Deploy Wireless and Wire Coverage...
- Page 17 Extended Wireless Coverage The wireless gateway provides a 4 x 10/100 Ethernet LAN ports, its can be utilised as a solution to extend wireless coverage via Ethernet cable and Access Point. 3rd Floor 2nd Floor 1st Floor...
- Page 18 Wireless and Wired Coverage The wireless gateway provides a 4 x 10/100 Ethernet LAN ports, its can be utilize for wired connections 3rd Floor Ethernet Switch Floor 1st Floor...
- Page 19 LAN Device Management This function is provided to help Hotspot owner to remotely control the device which connect onto the LAN port of the Wireless Gateway. Administrator http://210.66.37.22:60001 remote access AP connect under LAN port of WiFi KIOSK 192.168.0.2 Global IP Ethernet Switch 210.66.37.22...
