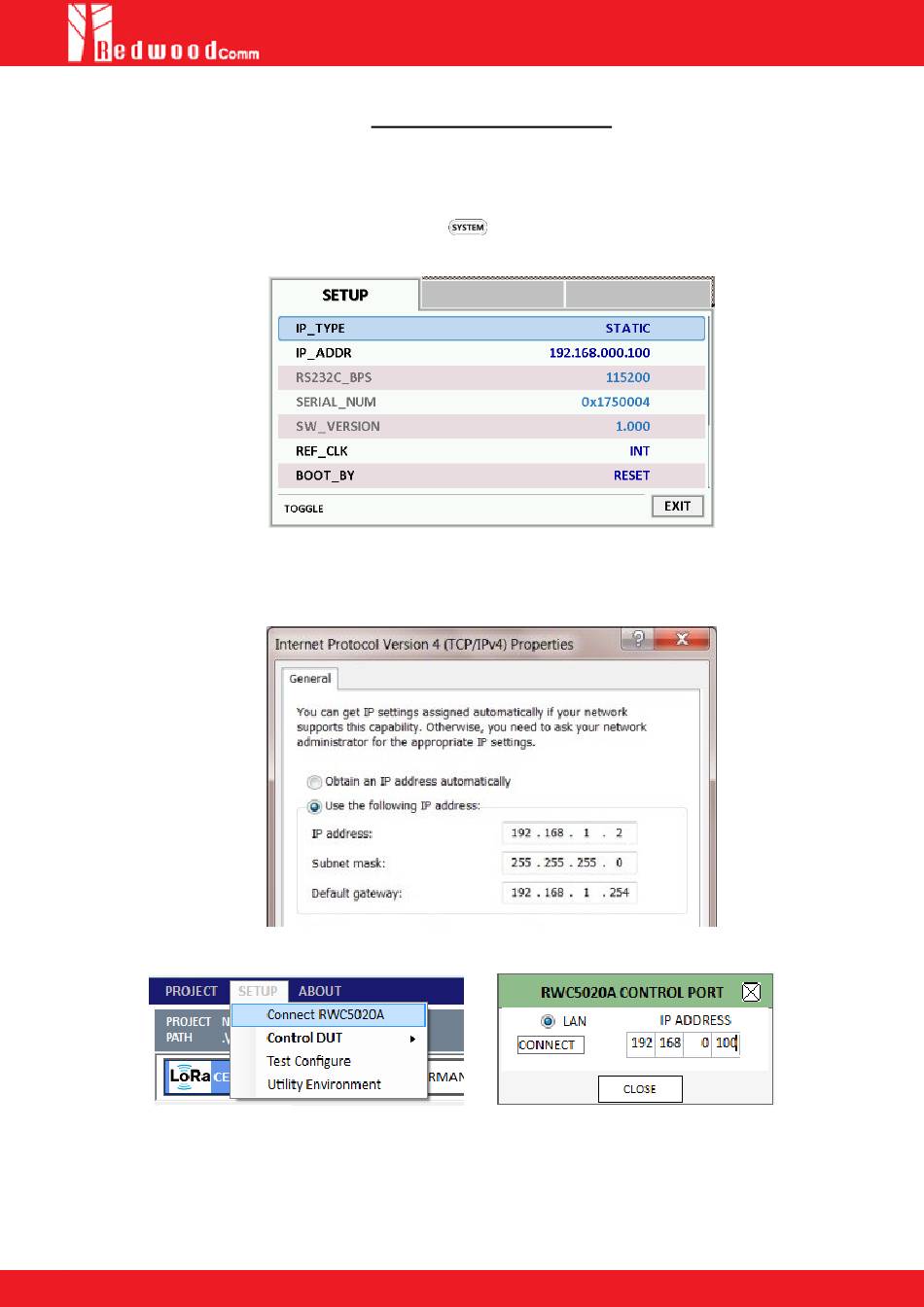

1) Connect LAN port of PC and RWC5020A Ethernet port using RJ45 cable. If the
PC and RWC5020A are connected directly, cross cable must be used.
2) Turn RWC5020A power ON, press
configuration screen and configure IP address.
3) Put the same IP address with RWC5020A's IP address except last slot. For
reliability, it is recommended to disable all other networks (e.g. WiFi, Virtual
Machine) than Ethernet in Network Adapter Settings of a remote PC.
4) Run software and set up the same IP address with RWC5020A.
Setup for STATIC IP
key to jump on the system
Advertisement
Table of Contents
Summary of Contents for Redwood RWC5020A
- Page 1 Setup for STATIC IP 1) Connect LAN port of PC and RWC5020A Ethernet port using RJ45 cable. If the PC and RWC5020A are connected directly, cross cable must be used. 2) Turn RWC5020A power ON, press key to jump on the system configuration screen and configure IP address.
- Page 2 IP address. 3) DYNAMIC means that IP address may be obtained from the DHCP server automatically, and this configuration is recommended using RJ45 connection to a network hub. 4) Open software and set up the same IP address with RWC5020A.
