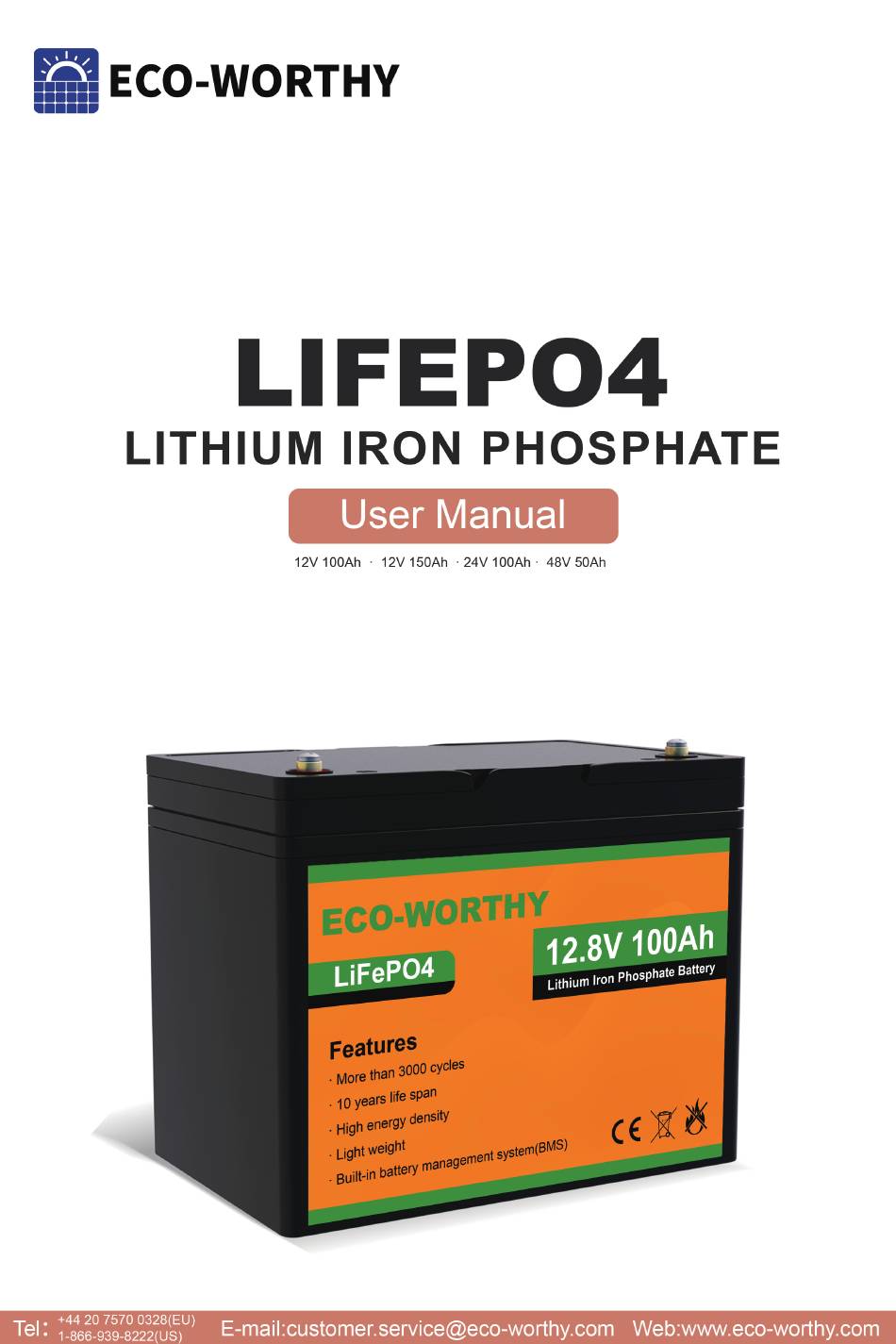

Summary of Contents for ECO-WORTHY LIFEPO4 12V 100Ah
-
Page 2: Table Of Contents
CATALOG ..........1 1.Safety Instructions ...........2 2.Specifications .......3 3.Battery Performance Relations ..........4 4.Installation Guide ........4 Installation Environment ...........4 Preparation .............5 Inspection ..........5 Cable Sizing .........6 Batteries Connection ........7 Securing Cable Connections ..........8 5.Charging Method ..........9 6.Troubleshooting .........10 7.Frequently Asked Questions ...........11 8.Maintenance ............12 9.Support... -
Page 3: Safety Instructions
Disclaimer The manufacturer accepts no liability for any damage caused by: Force majeure including fire, typhoon, flood, earthquake, war, and terrorism. Intentional or accidental misuse, abuse, neglect or improper maintenance, and use under abnormal conditions. Improper installation, improper operation, and malfunction of a peripheral device. Contamination with hazardous substances, diseases, vermin, or radiation. -
Page 4: Specifications
Specifications Battery parameters Battery Type 12V 100Ah 12V 150Ah 24V 100Ah 48V 50Ah Rated Power 2560Wh 1280Wh 1920Wh 2560Wh Nominal Voltage 12.8V 12.8V 25.6V 51.2V Voltage Range 40V-58V 10V-14.6V 10V-14.6V 20V-29V Charge Voltage 14.6V 29.2V 58.4V 14.6V Maximum Continuous Charge Current Maximum Continuous Discharge Current 100A 150A... -
Page 5: Battery Performance Relations
Battery Performance Relations Sample:12V 100Ah battery environmental conditions required for all tests: 25±5℃/77°F±9°F Note: 24V 100Ah, 48V 50Ah batteries have similar curves as the 12V 100Ah Type Discharge Capacity Under Different Temperatures 55 ℃ 25℃ 13.6 10℃ 0℃ 12.8 -10℃ -20℃... -
Page 6: Installation Guide
Cycle Life & Capacity @ LiFePO4 Battery Cycles 30%DOD 50%DOD 80%DOD 100%DOD 2000 3000 4000 5000 6000 7000 8000 9000 SLA Battery Cycles LiFePo4 Battery Cycles 1.4.1.3 General Installation Guide Installation Environment The battery should be installed in a clean, cool, and dry place, keeping water, oil, and dirt away from the battery. -
Page 7: Inspection
Inspection Please check for visible damage including cracks, dents, deformation, and other visible abnormalities. The top of the battery and terminal connections should be clean, free of dirt and corrosion, and dry. If any problems are detected with the battery, please contact us for assistance. DO NOT short-circuit the battery terminals. -
Page 8: Batteries Connection
Batteries Connection DO NOT string batteries with different chemistry, brands, models, rated capacities, or nominal voltages in parallel. Please avoid too high a voltage difference between paralleled batteries, despite the auto-balancing function, to avoid triggering the over-voltage protection. In parallel battery banks, the cables between each battery should be of equal length to ensure that all batteries in the system can work equally together. -
Page 9: Securing Cable Connections
The parallel mode means that the positive pole of the first lithium battery is connected to the positive pole of the second cell, and the nega- tive pole is connected to the negative pole, and so on. The string voltage be as a single battery, and the total discharge current be as the sum of all batteries current. -
Page 10: Charging Method
Solar panel (DC power) You can also use solar panel to charge your ECO-WORTHY LiFePO4 battery, but please make sure to choose a proper controller, it should contain the LiFePO4 battery mode, or Li-ion battery mode. Both PWM controller and MPPT controller are okay. -
Page 11: Troubleshooting
Battery Voltage & Actual Capacity 13.6V 100% 13.4V 13.3V 13.2V 13.1V 13.0V 12.9V 12.8V 12.5V 12.0V 10.0V Troubleshooting ·If you found the battery can not be fully charged to its full voltage rating(14.6V/29V/58V), the charge tools may not compatible with it, you could check if the charger/controller contains the proper output voltage for LiFePO4 battery. -
Page 12: Frequently Asked Questions
This could cause an internal short of the battery and a failure. Can I leave ECO-WORTHY lithium battery on charging all the time? For a lithium battery with a low maintenance charging procedure and battery management system, it's perfectly fine and better than leaving them discharged for a long period. -
Page 13: Maintenance
Can I recharge my lithium battery from my vehicle alternator? Yes, but not necessarily to full charge, due to the fact that most Alternators are adjusted for the lower voltage requirements of the vehicle Lead/Acid Battery (approximately 13.9v). Lithium Batteries require 14.4 to 14.6Volts to fully charge. That being said, you can get up to approximately a 70% charge, depending on the depth of discharge and distance driven while recharging from your vehicle alternator. -
Page 14: Support
If you met technical problems and cannot find a solution in this manual, please contact ECO-WORTHY for further assistance Contact number: US 1-866-939-8222 UK +44 20 7570 0328 Email: customer.service@eco-worthy.com ECO-WORTHY reserves the right to change the contents of this manual without notice - 12 -...
