Micro Jig, Inc.
PO Box 195607
Winter Springs, FL 32719, USA.
Tel: 1-407-696-6695
Web site: www.microjig.com
Email: sales@microjig.com
Copyright © 2004 Micro Jig, Inc.
Model # SP-0125 (Green)
For full 1/8" standard Kerf saw blade
Green MJ Splitter thickness : 0.118" (± 0.001")
Kerf Range 0.118" - 0.145" (3 - 3.2mm)

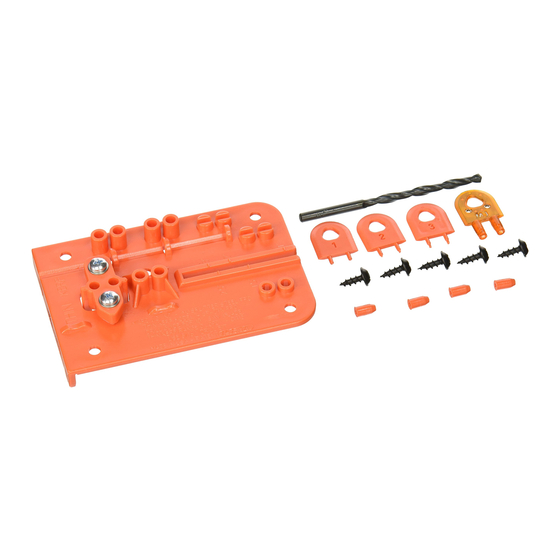

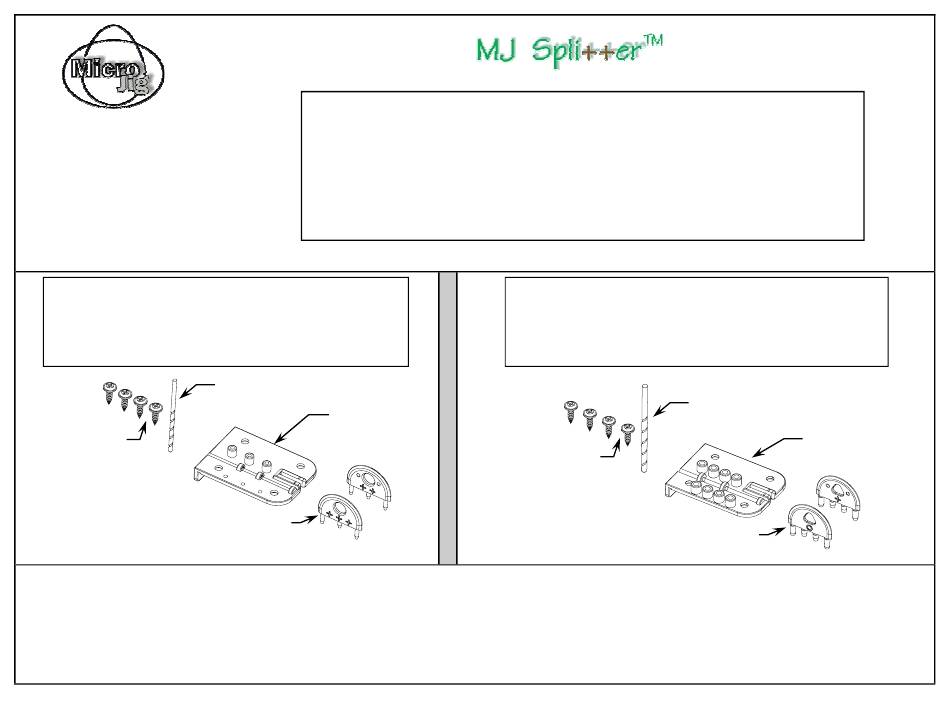

Package contents
#8 x 1/2"
Wood Screws
(4 pieces)
Splitters (2 pieces)
MJ
with four (4) alignment surfaces
Preparation - For best results, we suggest that you read this Installation Manual thoroughly before you start.
- Rip fence must be parallel to the saw blade if the MJ Splitter is used with the GRR-Ripper® System.
- Zero Clearance Insert (ZCI) must be leveled with the table saw top.
- To achieve a "feather board" effect, the ZCI must fit snugly in the opening.
- A kerf in the ZCI must be created at 90º with the saw blade (without stiffener) raised to its highest setting for maximum cutting depth.
Note: ZCI used should be made of sturdy material, as any deflection on the ZCI when downward pressure is applied may cause the work piece to be pulled away from
the fence, resulting in a cut that is not parallel to the fence.
Low Profile Splitter with "Feather Board" Effect
For Installation on Zero Clearance Insert with no existing splitter opening ONLY!
For making 90º cuts ONLY – MJ Splitter will NOT accommodate cuts with a tilted arbor!
Standard 1/8" Kerf and Thin Kerf models are available separately!
7/64" Drill Bit (1 piece)
Drill Guide
(1 piece)
Installation Manual (V2.0)
Made in USA - Patent Pending
Model # SP-0100TK (Yellow)
For Thin Kerf Kerf saw blade
Yellow MJ Splitter thickness : 0.088" (± 0.001")
Kerf Range 0.090" - 0.118" (2.29 - 3mm)
Package contents
#8 x 1/2"
Wood Screws
(4 pieces)
Splitters TK (2 pieces)
MJ
with four (4) alignment surfaces
1
21505
37477
0804
5/32" Drill Bit (1 piece)
TK Drill Guide
(1 piece)
RTD10000019AA
Advertisement
Summary of Contents for microjig MJ Splitter
- Page 1 Preparation - For best results, we suggest that you read this Installation Manual thoroughly before you start. - Rip fence must be parallel to the saw blade if the MJ Splitter is used with the GRR-Ripper® System. - Zero Clearance Insert (ZCI) must be leveled with the table saw top.
- Page 2 Model SP-0125 Model SP-0100TK 1/8” Kerf Splitter - Green Thin Kerf Splitter - Yellow MJ Splitter - slight differences can easily be observed in their Follow drawings under here Follow drawings under here drawings with annotations. Step 3 - Establish the Guide Hole Distance from the Saw Blade Line up carbide 1) Disconnect the power to the table saw.
- Page 3 Model SP-0125 Model SP-0100TK 1/8” Kerf Splitter - Green Thin Kerf Splitter - Yellow Follow drawings under here Follow drawings under here Step 4 - Securing the Setup Board Hold –down Hold –down 1) Lower the saw blade just below the Setup Board top surface without altering Clamp Clamp the position of the Setup Board and the Drill Guide.
- Page 4 2) Chuck the provided drill bit into a power hand drill and carefully line up the drill with one of the guide holes. Hold the hand drill as perpendicular and steady as pos- sible and drill through the guide hole to make that MJ Splitter location hole on the ZCI.
- Page 5 ZCI, e.g., improper feeding with no downward pressure can cause the wood to lift off the table saw surface, and excessive feeding pressure from the off-cut side toward the fence can cause the wood to pinch the MJ Splitter. Although the MJ Splitter will act as a “kerf keeper” if it is pulled out of its mounting holes during a cutting operation –...
