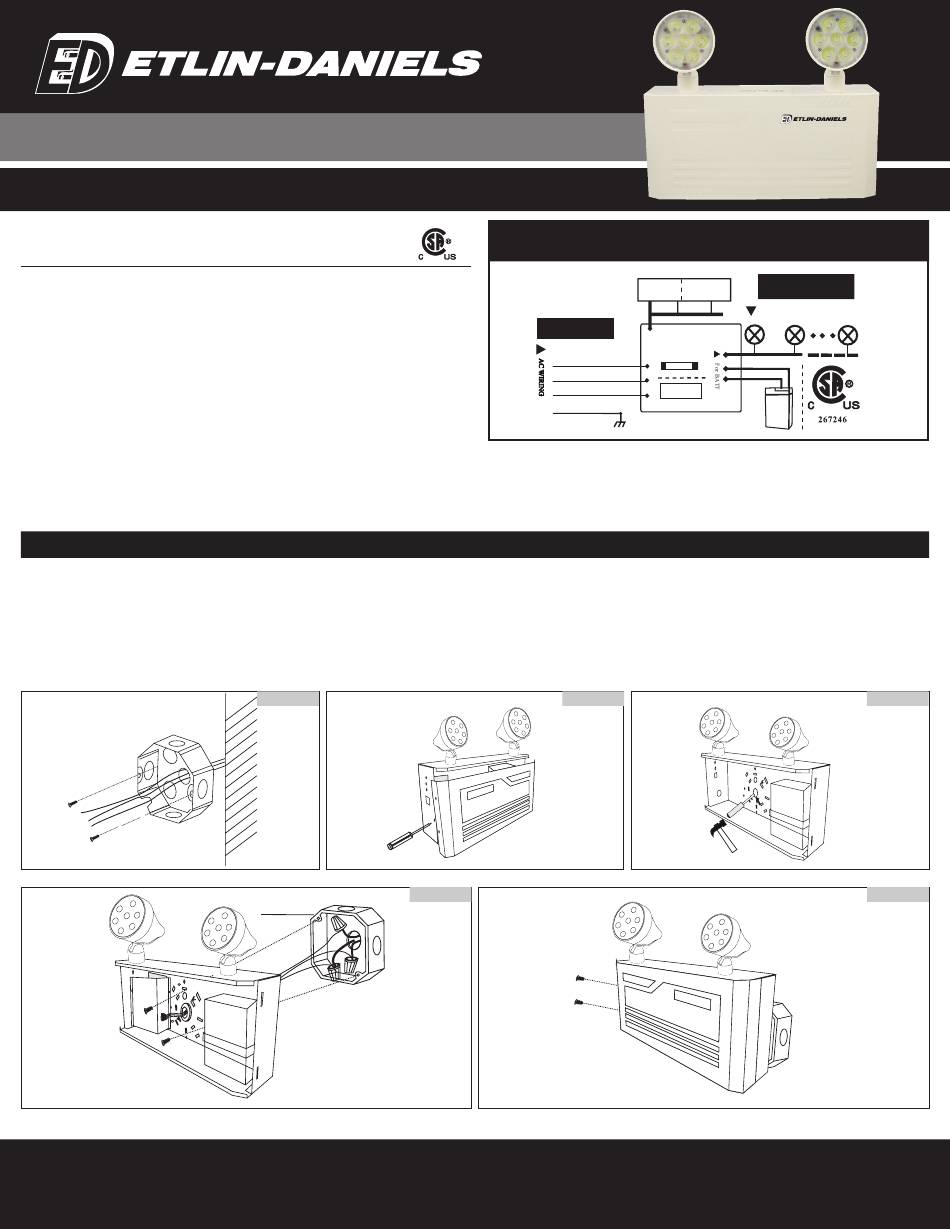

Etlin-Daniels ER302D-WHM-A13-BB-10RC Instructions

INSTALLION – ER302D-WHM-A13-BB-10RC
LED METAL EMERGENCY BATTERY UNIT DUAL HEADS
SAVE THESE INSTRUCTIONS - READ ALL INSTRUCTIONS CAREFULLY
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
• Review the diagrams thoroughly before beginning.
• All electrical connections must be in accordance with local codes, ordinances and the
National Electric Code.
• All unused wires must be capped to prevent shorting.
• Disconnect power at fuse or circuit breaker before installing or servicing.
• Do not use outdoors.
• Do not mount in hazardous locations or near gas or electric heaters.
• Do not let power cords touch hot surfaces.
• Equipment should be mounted in locations and at heights where it will not be subject to
tampering by unauthorized personnel.
• The use of accessory equipment is not recommended by the manufacturer.
• Do not use this equipment other than intended use.
• All servicing should be performed by qualified personnel only.
• Allow battery to charge for 24hrs before first use.
1. Feed AC supply wires into the junction box leaving 8 inches of wire (see figure 1).
2. Remove the cover by unscrewing the screws on the side of the front cover (see figure 2).
3. Identify the proper hole pattern in the back of the housing to mount to a standard junction box. Place a
support on either side of the knockouts to be removed and then knock out with a screwdriver (see figure 3).
4. Insert a plastic bushing into the hole to protect wires from metal edge. (see figure 4).
5. Route AC supply wires into the center hole of the housing (through the bushing).
6. Mount the unit securely to the junction box using the junction box screws. Note: Use the keyhole slot as
added security (see figure 5).
FIGURE#1
FIGURE#4
Junction Box
Head Office - 1850 Wilson Ave. · Toronto, ON · M9M 1A1 · Tel: 416.741.7336 · Fax: 416.741.9104 ·
Toll Free: in Canada. 1.800.661.9610 · in USA. 1.888.762.5384 (SOCKETS4U)
www.etlin-daniels.com· For sales/service questions - sales@etlin.com
WIRING DIAGRAM
AC120V 50/60Hz
AC347V 50/60Hz
Input cable
Red Wire:AC347V (L1)
Black Wire:AC120V (L2)
White Wire (N)
Green Wire (E/G)
INSTALLATION INSTRUCTION
1. Turn off AC power.
2. Remove all components from packaging.
WALL MOUNT
7. The system can accept input voltages of 120 or 347 VAC. Connect the green ground (see wiring diagram above).
8. Install the battery (ies) into the housing and complete the appropriate connections including connection
to the PCBA. Note: Batteries may be shipped separately to avoid damage.
9. Secure all internal wires.
10. Replace and secure the cover with screws (see figure 5).
11. Turn on AC power supply.
FIGURE#2
WIRING DIAGRAM
ATTENTION!!
Green led
WORKING VOLTAGE:
TEST
DC6V - 12V
(AC ON)
Lamp Head
LAMP1
LAMP2
MAIN PCBA
Output:
DC 6V
24W/LED
2*5W/LED
Red +
fuse
Black -
Transformer
6V/6Ah
Battery
LAMP/n
FIGURE#3
FIGURE#5
