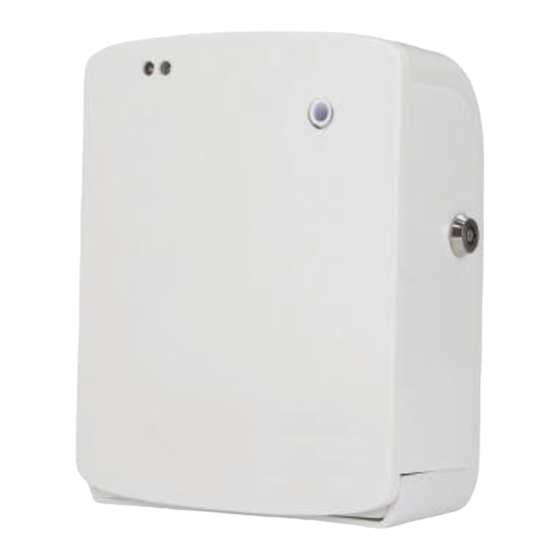

OUWAVE Aroma OS-1 Product Manual

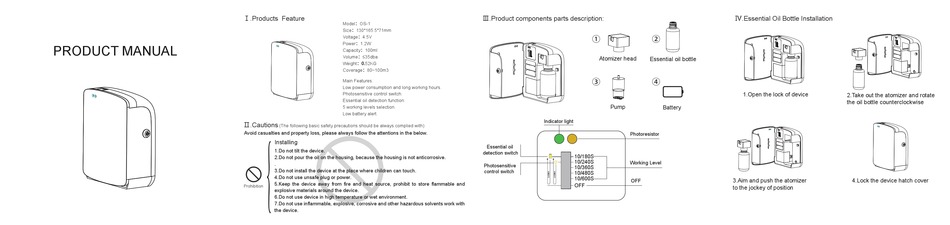

PRODUCT MANUAL
Ⅰ.Products Feature
Model：OS-1
Size：130*165.5*71mm
Voltage：4.5V
Power：1.2W
Capacity：100ml
Volume：≤35dba
Weight：0.52KG
Coverage：80~100m3
Main Features:
Low power consumption and long working hours.
Photosensitive control switch.
Essential oil detection function.
5 working levels selection.
Low battery alert.
Ⅱ.Cautions
(The following basic safety precautions should be always complied with)
Avoid casualties and property loss, please always follow the attentions in the below.
Installing
1.Do not tilt the device.
2.Do not pour the oil on the housing, because the housing is not anticorrosive.
.
3.Do not install the device at the place where children can touch.
4.Do not use unsafe plug or power.
5.Keep the device away from fire and heat source, prohibit to store flammable and
Prohibition
explosive materials around the device.
6.Do not use device in high temperature or wet environment.
7.Do not use inflammable, explosive, corrosive and other hazardous solvents work with
the device.
Ⅲ.Product components parts description:
① ②
Atomizer head
Essential oil bottle
③ ④
Pump
Indicator light
Photoresistor
Essential oil
detection switch
10/180S
10/240S
Working Level
Photosensitive
10/360S
control switch
10/480S
10/600S
OFF
OFF
Ⅳ.Essential Oil Bottle Installation
1.Open the lock of device
Battery
3.Aim and push the atomizer
to the jockey of position
2.Take out the atomizer and rotate
the oil bottle counterclockwise
4.Lock the device hatch cover
