Summary of Contents for NEXOL NEX-P40
- Page 1 Operation and Installation Manual 40 Liter Solar Water Heater www.nexol-ag.com...
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction..................4 Safety ....................5 Safety terminolgy and symbols............6 Product warranty and Liability of the manufacturer..................7 Transportation and Storage.............. 8 Inspect the delivery................8 Transportation guidelines..............8 General Use..................9 Technical Data..................10 Specifications..................11 Detail on Consumption..............12 Installation...................13... -
Page 4: Introduction
Introduction Introduction If you have any question, comments or complaints please don’t hesitate to contact us. Nexol Photovolthermic AG Mombacher Str. 68 55122 Mainz E-Mail: info@nexol-ag.com Purpose of this manual The purpose of this manual is to provide necessary information for: •... -
Page 5: Safety
Safety Safety WARNING: • Water from the tank is not drinking water. • Do not use the water for food preparation. • The appliance may be used by children aged 8 and older and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appli- ance safely and have understood the resulting risks. -
Page 6: Safety Terminolgy And Symbols
Safety Safety terminolgy and symbols About safety messages It is extremely important that you read, understand, and follow the safety messages and regulations carefully before handling the product. They are published to help prevent these hazards: • Personal accidents and health problems •... -
Page 7: Product Warranty And Liability Of The Manufacturer
No other guaranty will be granted. Liability of the manufacturer Nexol Photovolthermic AG is not liable for costs and damages or injuries caused by the following: • Failure to follow the instructions of the device. -
Page 8: Transportation And Storage
Transportation and Storage Transportation and Storage Inspect the delivery Inspect the package 1. Inspect the package for damaged or missing items upon delivery. 2. Note any damaged or missing items on the receipt and freight bill. 3. File a claim with the shipping company if anything is out of order. If the product has been picked up at a distributor, make a claim directly to the distributor. -
Page 9: General Use

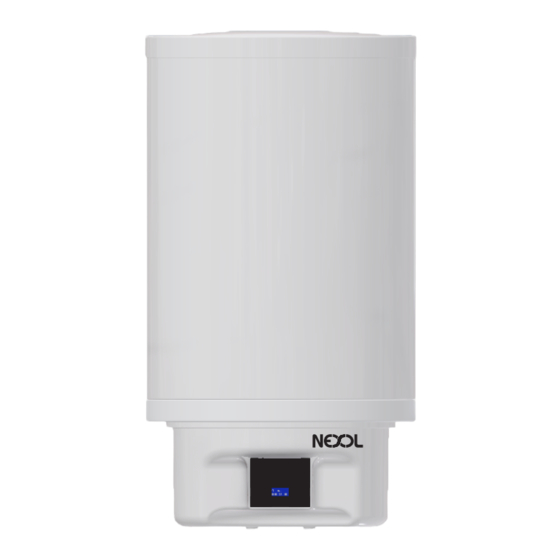

General Use General Use General Use The NEXOL solar hot water tank NEX-P40 is used to heat domestic hot water. We have developed a new innovative way of solar water heating. Our water heater use semiconductor technology, which not only harvest the electrical energy from solar cells, in addition to that it also harvest energy from the environment. -
Page 10: Technical Data
Technical Data Technical Data Specification 230,00 470,00 air outlet Status air inlet Hot water outlet Cold water inlet Temperaturesensors Wall mount PV - PV + Net connection... -
Page 11: Specifications
Technical Data Specification Mechanical and Thermal Characteristic Height 900 mm Diameter 470 mm Empty Weight 24 kg Water Capacity 40 L Layer of Insulation 85 mm Thermal Losses 0,515 W/K Material Tank Stainless Steel Performance Characteristics Operating Temp. Range 0 – 65 °C Effective Temp. -
Page 12: Detail On Consumption
Technical Data Details on Energy Consumption Demanded energy for heating process in Wh: ΔT 221,7 442,9 663,8 882,6 25 1099,9 30 1315,6 The thermal surplus is gained by extract thermal energy from the surrounding area. The efficiency is reducing while the temperature gradiant to the environment is increasing. -
Page 13: Installation
Installation Installation Installation Only qualified installers should carry out installation, commissioning, maintenance and repair of the appliance. Appliance Description The following are delivered with the prototype appliance: - Tank - Power Adapter (80 W) Further components are needed: - Safety Valves - Solar Generator (200-300 Wp) (Number cells 36, 48, 54, 60, 72) - Wall Suspension... -
Page 14: Water Connection
Installation Water connection The Nexol Heater can be connected to water supply systems with up to 6 bar. The water connection should be done by qualified contrac- tors. Security valves need to be installed at water in- and outlet. water outlet... -
Page 15: Heater Operation - Lcd Display
Water heater operation/ Commission Process/ Environment & recycling Water heater operation/ Commission Process/ Environment & recycling Water heater operation/ Commission Process/ Environment & recycling Water heater operation - LCD display Water heater operation - LCD display Water heater operation - LCD display If there is enough power coming from the PV panel or the Net, the If there is enough power coming from the PV panel or the Net, the If there is enough power coming from the PV panel or the Net, the... - Page 16 Visit our website for the latest version of this document and more information. www.nexol-ag.com Nexol Photovolthermic AG Mombacher Str. 68 55122 Mainz E-Mail: info@nexol-ag.com...
