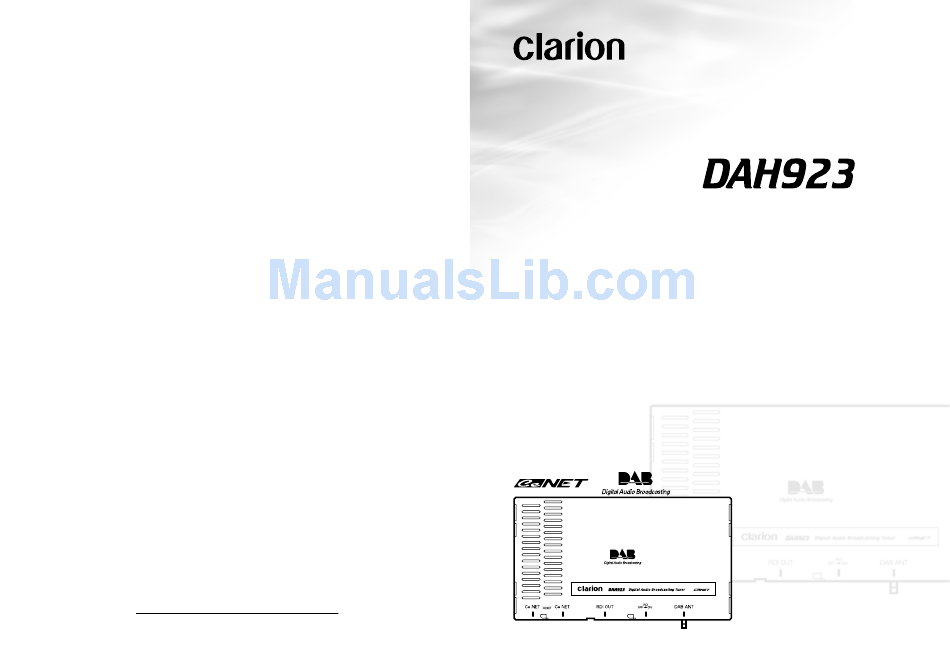

Clarion Co., Ltd.
All Rights Reserved. Copyright © 2001: Clarion Co., Ltd.
2001/12 (A·K)
Printed in Japan /
Imprimé au Japon
/ Gedruckt in Japan /
GT-977E
280-7788-00
Stampato in Giappone
/ Tryckt i Japan
Owner's manual
Mode d'emploi
Bedienungsanleitung
Istruzioni per l'uso
Bruksanvisning
DAB BLACK-BOX TUNER FOR CeNET
•
TUNER DE BOÎTE NOIRE DAB POUR CeNET
•
DAB BLACK-BOX-TUNER MIT ANSCHLUß
UND STEUERUNG ÜBER CeNET
•
SINTONIZZATORE BLACK-BOX DAB PER
CeNET
•
DAB BLACK-BOX TUNER FÖR CeNET
Advertisement
Table of Contents
Related Manuals for Clarion DAH923
Summary of Contents for Clarion DAH923
- Page 1 Clarion Co., Ltd. All Rights Reserved. Copyright © 2001: Clarion Co., Ltd. 2001/12 (A·K) Printed in Japan / Imprimé au Japon / Gedruckt in Japan / Stampato in Giappone GT-977E 280-7788-00 / Tryckt i Japan Owner’s manual Mode d’emploi Bedienungsanleitung Istruzioni per l’uso...
-
Page 2: Table Of Contents
∗ This manual includes the DAB operating procedures for four types of models and the installation procedures of the DAH923, DXZ928R, DXZ828R, DXZ728R and ADZ628R that are connected via the CeNET cables. Note that the following models can also be connected via a CeNET cable for DAB operation; consult your dealer for details: VRX918R, VRX613R, DRX960Rz, MRX8675Rz, DRX8675Rz, ARX8670Rz, ADX5655Rz, DRX9575Rz/RWz, DRX8575Rz/RWz, ARX8570Rz/RWz, ADX5555Rz, VRX6570Rz. -
Page 3: Features
The listener could listen to digital radio with an audio quality nearly equal to that of a CD. If reception deteriorates, the Clarion Receiver DAH923 will switch automatically to the corresponding FM station (if the signal is provided by broadcasters). -
Page 4: Controls
Nota: Si raccomanda di dispiegare questa pagina e far riferimento agli schemi anteriori quando si legge ciascun capitolo. Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen. DAH923 DAH923 LES COMMANDES... - Page 5 ON or OFF. • ADZ628R Turn the [PRESET] knob clockwise or coun- terclockwise to set the information item for ON or OFF. 5. Press the [ADJ/TITLE] button to return to the previous display. ] button to DAH923...
-
Page 6: Digital Radio / Dab Operations
∗ The factory default setting is “English”. ∗ For details on “Switching the PTY and INFO display language”, refer to the section “RDS operation” of each owner’s manual. DAH923 Volume setting of TA, INFO, emergency broadcast (ALARM) and The volume for TA, INFO, ALARM and PTY interrupts can be set during TA, INFO, ALARM and PTY interrupt. -
Page 7: Installation And Wire Connection
4 Cable clip ... 1 piece 5 CeNET cable ... 1 piece 6 DAB Blackbox interface cable ... 1 piece DAH923 In case you are using the Clarion DAB-antenna ZCP-102-700 with the DAB blackbox DAH923, please utilise the included interface cable. Damage... -
Page 8: Installation Example
Installation Example 1. Attach the mounting brackets 1 to the sides of the DAH923 using the screws 2 provided. 2. Select the location on the floor mat. Drill holes in the floor mat to match the positions of the holes in the mounting brackets 1. -
Page 9: How To Make Wirings
DAB antenna input terminal 6. 3. DAB antenna (ZCP-102-700) Connect the DAB antenna cable with the DAB Blackbox interface cable coming from the DAH923. Note: • Be sure to turn the main unit power off when the DAB antenna cable is connected. -
Page 10: System Examples
2 CD changer compatible with CeNET connec- tion 3 CeNET cable (provided with the DAH923) Using this cable, connect the DAH923 to the main unit. Note: • The longest wiring length of the CeNET cable is less than 20m. When you connect the CeNET cable, be careful not to execeed the wiring length of 20m.
