Summary of Contents for Cassese CS 55M

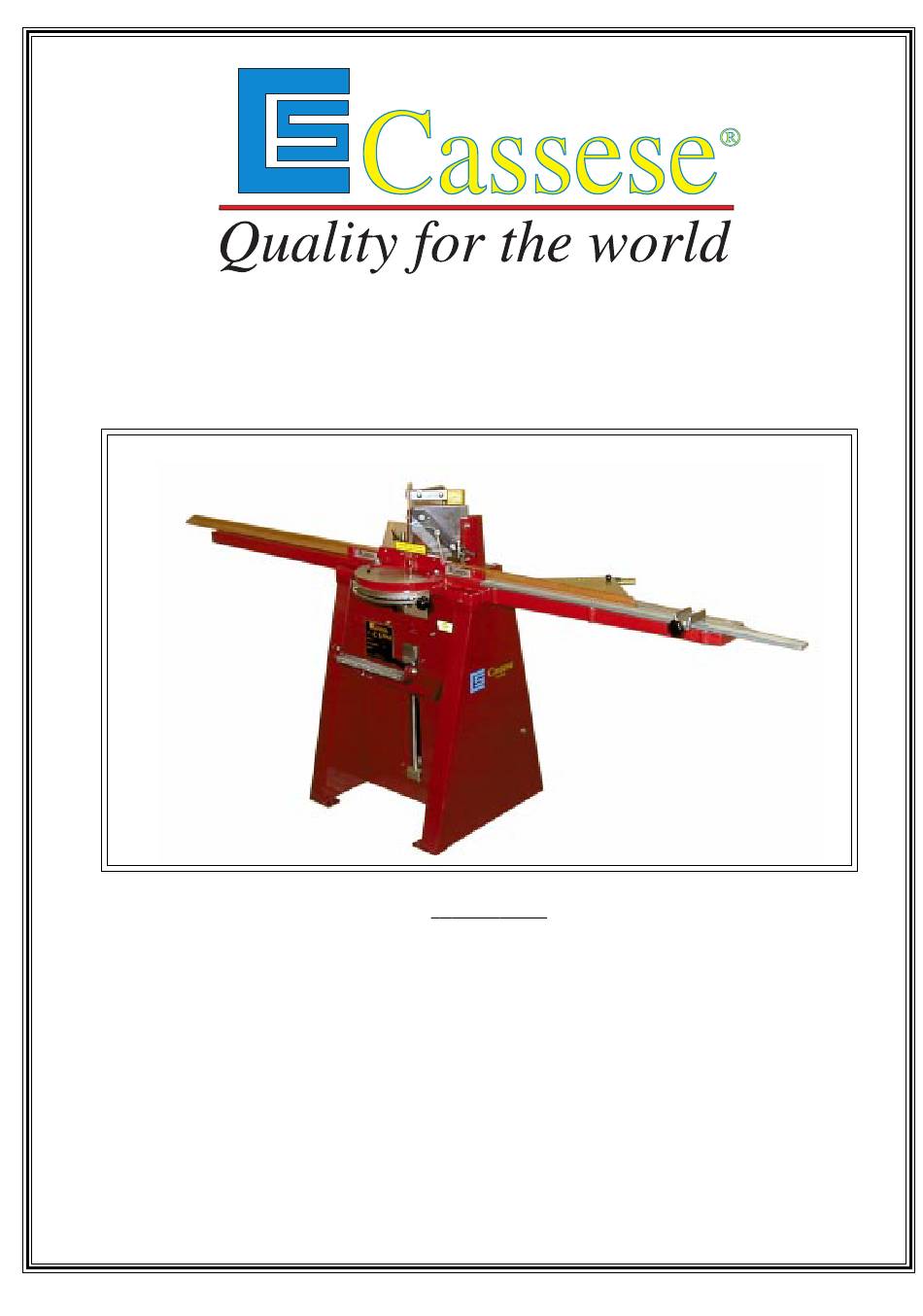

- Page 1 CS 55M Version 1 : 02 / 99 Technical and User Manual Cassese / Communication...
- Page 2 WARNING NEVER LEAVE YOUR FOOT ON THE PEDAL DURING ADJUSTMENT OPERATIONS NOR YOUR HANDS UNDER KNIVES OR CHIP SECTION PUTTING INTO OPERATION Fittings - 1 x 17 mm monkey wrench - 1 x 15 mm Allen wrench. Table extension assembly Make sure the both sides coming into contact are cleaned, especially in place of the two pins and of the threaded hole so that the table extension lies level with...
- Page 3 CS 55 M OPERATION Rabbet holders adjustment SELF ADJUSTING RABBET HOLDER A) rabbet holder rod B) locking screw C) rabbet holder sash angle Unlock locking screw (B), ..while maintaining the Finally lock screw (B). push down rod (A) to bring moulding flat on machine’s table, It is essential to maintain sash angle ( C ) close to...
- Page 4 The pedal can be adjusted at the required height. While putting the foot on the pedal, release the operating handle (MP). With the foot, release the pedal up to the height required. Lock the handle again (MP). MACHINE MAINTENANCE 1)Cleaning Push the knives back as far as possible ( operating handle B to the left, see page 2) and remove wood scraps which may be in the way of the rabbet holders when sliding, with a blow gun.
- Page 5 After many sharpening operations, knives might become too short, that means the position of the knife holder related to the pedal has to be adjusted. Press down the pedal and lock it with the aid of the operating handle (MP) ( see page 3). Unscrew the adjusting nut (ETT) ( 19 mm wrench maintaining the con-rod located at the clamp top and screw on the nut (EBT) until the knife edge 4-6 mm...
