Evluma ROADMAX Series Installation Instructions

ROADMAX SERIES LUMINAIRES
INSTALLATION INSTRUCTIONS

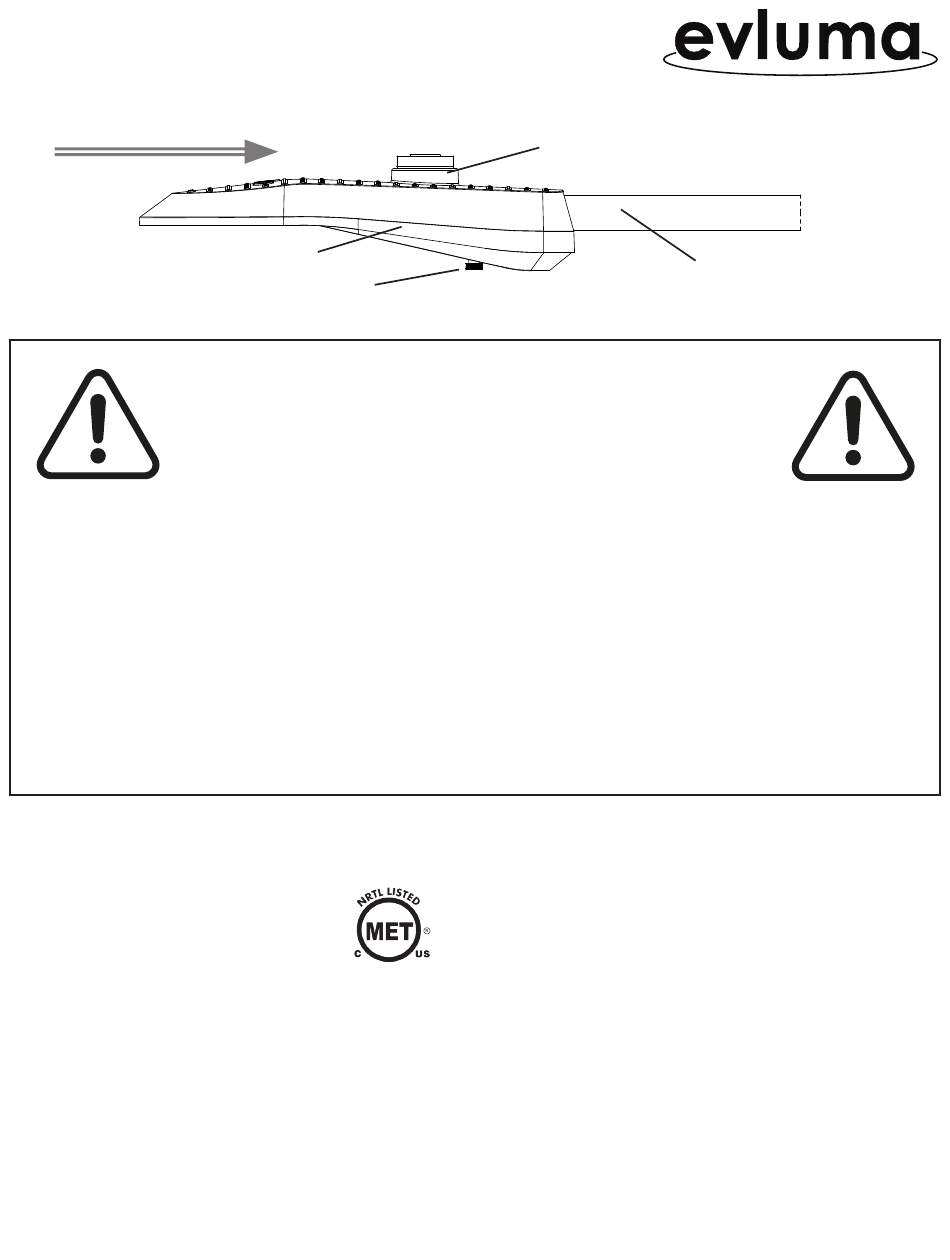

install direction
Verify that supply voltage is correct. RoadMax RX1 operates at 120-277 VAC, 60 Hz current.
Do not exceed maximum voltage marked on luminaire label.
LED luminaires should be powered directly from a switched service unless specification indicates otherwise.
Do not connect directly to control devices, such as occupancy sensors, timing devices or dimmer packs.
Follow all National Electrical Codes (NEC) and any applicable local code requirements for electrical and
grounded connections. Wiring connections should be capped with UL listed or recognized connectors.
Wear gloves and safety glasses when removing luminaire from carton, during installation, or while performing
maintenance.
Avoid direct eye exposure to an LED light source while in operation.

PRODUCT DESCRIPTION

The RoadMax RX1 has been listed to
U.S. and Canadian safety standards
CSA per Met Labs. It is suitable for use
in wet locations. Temperature operation
range is -40°C min to 50°C max.
This luminaire is designed for outdoor lighting
purposes. It should not be used in an area with
limited ventilation or an enclosed area with a high
ambient temperature. Store in a dry location prior to
installation. Do not expose luminaire to the weather
without a shorting cap or photocontrol installed
unless the luminaire has been ordered with the
Evluma integrated photocontrol.
PN-101047-001 REV A01
access panel
access panel knob
PLEASE READ AND FOLLOW ALL SAFTEY INSTRUCTIONS!
Disconnect power before wiring the fixture. High voltage may be
present even when the photocontrol is removed.
If not qualified, consult an electrician.
photocontrol socket
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.

TOOLS REQUIRED

• 1/2 inch drive socket, or box wrench for tenon bolts
• #2 Phillips screwdriver for photocontrol socket, or photocontrol
• 5/16 inch drive socket, or 1/4 inch slotted screwdriverfor lens,
or shields
• 1/4 inch slotted screwdriver for conductive wires
3600 Lind Ave SW, Suite 140, Renton, WA 98057 425-336-5800 evluma.com
mounting arm
