Eat Smart ESBS-64 User Manual

EatSmart Products
Oak Brook, IL, 60523

Call: 866-843-3905 (8 to 5 MST)
eatsmartproducts.com

INTRODUCTION

Please read this instruction manual carefully before use.
Your EatSmart Bathroom Scale comes with the following:

  • EatSmart Digital Bathroom Scale
  • Instruction Manual
  • 3 AAA batteries
  • 2 Year EatSmart Guarantee

If you have any questions please contact us - eatsmartproducts.com.

OPERATION

Battery Installation and First Time Setup

  1. This scale operates on 3 'AAA' batteries (included). The batteries included with the scale will be placed separately inside the box with the unit. Always replace all batteries at the same time: do not combine old and new batteries. Do not mix alkaline, carbon-zinc (standard) or nickel-cadmium (rechargeable) batteries.
  2. Locate and remove the battery compartment cover on the underside of the scale.
  3. Insert batteries as indicated by the polarity symbols (+ and –) marked inside the battery compartment. Replace the battery compartment cover.
  4. The scale needs to be initialized and calibrated before first use and after moving your scale. Place scale on flat, hard surface. The harder the surface the more accurate your readings will be. Please keep in mind the first reading will not be accurate and can be disregarded. Carpeted or uneven floors may affect accuracy.
  5. Step off the scale and allow it to turn off.
  6. The scale is now ready for normal use. If the scale is moved again or stored on its side, repeat step #4.
  7. Replace batteries when the scale indicates 'Lo' on the display.

NOTE:

  1. New batteries should last for approximately two years under moderate use. Batteries included with your scale are trial batteries and may last a shorter length of time.
  2. Please recycle or dispose of batteries per local regulations.
  3. Batteries may pose a choking hazard. As with all small items, do not let children handle batteries. If swallowed, seek medical attention immediately.
  4. Do not dispose of batteries in fire. Batteries may explode or leak. Remove the batteries if the scale will not be used for a long period of time.

Weighing Operation

Your EatSmart Bathroom Scale operates as a basic body weighing scale. No special programming is required.

  1. Select your desired measurement unit. Your scale has been set at the factory to read weight in pounds. You can switch to kilograms or stones units of measurement by pressing the "Kg/Lb/St" button on the bottom of the scale.
  2. Place the scale on a hard, flat surface. Carpeted, uneven or cushioned flooring can negatively affect the accuracy of the reading.
  3. Initialize the scale.
  4. Step on. Place both feet on the center of the platform and stand still.
  5. Your weight will appear on the digital display. Your weight will blink when your final weight has been calculated.
  6. Step off the scale. It will reset to "0.0" turn off automatically.


Your EatSmart scale operates with "Step-On" technology but still needs to be auto-calibrated after battery installation or after the scale is moved, to ensure accuracy.

TROUBLESHOOTING

PROBLEM SOLUTION

Scale is inaccurate or weight varies

Place feet in center of scale platform and stand still. Allow weight to lock in before looking down at display. Flooring may be reason for fluctuation. Use on the hardest floor available for best accuracy.

First weight is higher than normal

Your scale must be allowed to auto-calibrate. Follow instructions under "Operation" for proper use.

Scale displays "Lo" for low battery; No power

Check batteries for proper installation (polarities are correct). Replace all worn batteries.

Overload indicated "Err"

Too much weight has been placed on the scale and it is overcapacity. Remove weight before proceeding.

Problem persists or other conditions

Call Eat Smart for support at 866-843-3905 (8 to 5 MST).

CARE & MAINTINANCE

To protect and maintain your EatSmart bathroom scale in the best possible condition follow these directions as closely as possible.

  1. Store and operate the unit in a safe dry location.
    Drastic changes in temperature over time can affect the quality of weight measurement. Do not expose to direct sunlight, extreme hot/cold or high humidity.
  2. Clean with a damp, soft cloth. Avoid abrasive cleaners and never sink or submerge in water.
  3. Remove batteries if not in use for three months or longer.
  4. Do not store scale where you store cleaning chemicals. The vapors from some household products may affect the electronic components of your scale. Do not store scale on its side.
  5. This scale is designed to read weights between 11 and 330 lbs / 5 and 149.6 kgs / 11lb and 23st 8lb. To prevent damage, do not place more than 330 lbs / 149.6 kgs / 23st 8lb on it.
  6. Use unit consistent with instructions provided in this manual.

SPECIFICATIONS

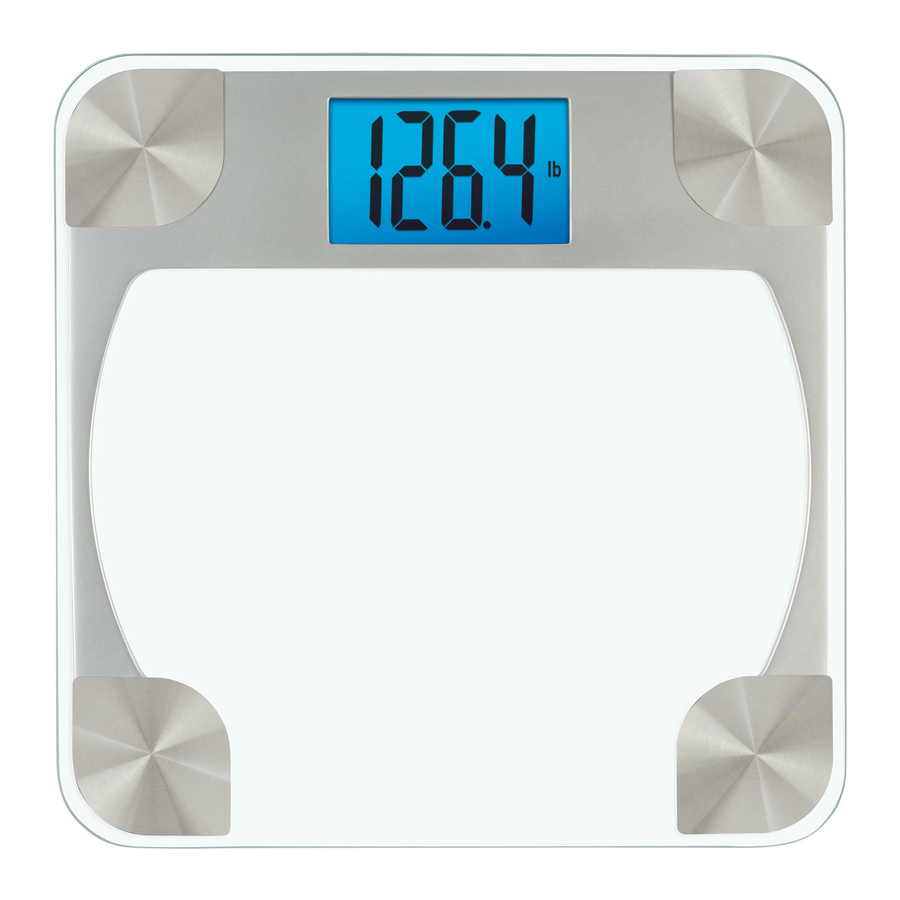

Model: EatSmart Digital Glass Bathroom Scale ESBS-64
Capacity: 330 lbs | 149.6 kgs | 23st 8lb
Measurement Units: Pounds / Kilograms / Stones
Graduation: 0.2lb / 0.1kg
Display: 3.7" x 2.28"
Low Battery Indicator: "Lo"
Overload Indicator: "Err"
Unit Dimensions: Approximately 12.2" x 12.2" x 1.1"
Unit Weight: Approximately 4.65 lbs
Power: 3 'AAA' Batteries (included)

WARRANTY

The EatSmart warranty covers defects in material and workmanship (excluding batteries) of the product under normal use for a period of two (2) years from the date of retail purchase. The warranty does not cover damages resulting from misuse, abuse, immersion, normal wear and tear or unauthorized modification.
Should this scale require service (or replacement at our option) while under warranty, please contact EatSmart for troubleshooting.
EatSmart 866-843-3905 (8 to 5 MST) or eatsmartproducts.com There are no expressed warranties except as listed above. This warranty gives you specific legal rights which may vary from state to state. NOT LEGAL FOR TRADE.
Made in China

FCC INFORMATION

Party issuing Supplier's Declaration of Conformity & Responsible party – U.S. Contact information:
Taylor
2311 W. 22nd Street, Suite 200
Oak Brook, IL 60523
Equipment:
Product Name: Digital Scale
Model No.: ESBS-64
Trade Name: EatSmart

We declare under our sole responsibility that the above referenced product has been tested according to FCC requirements and this device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.


Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.
