Secrui Wireless Doorbell M523 Manual

Overview

Package

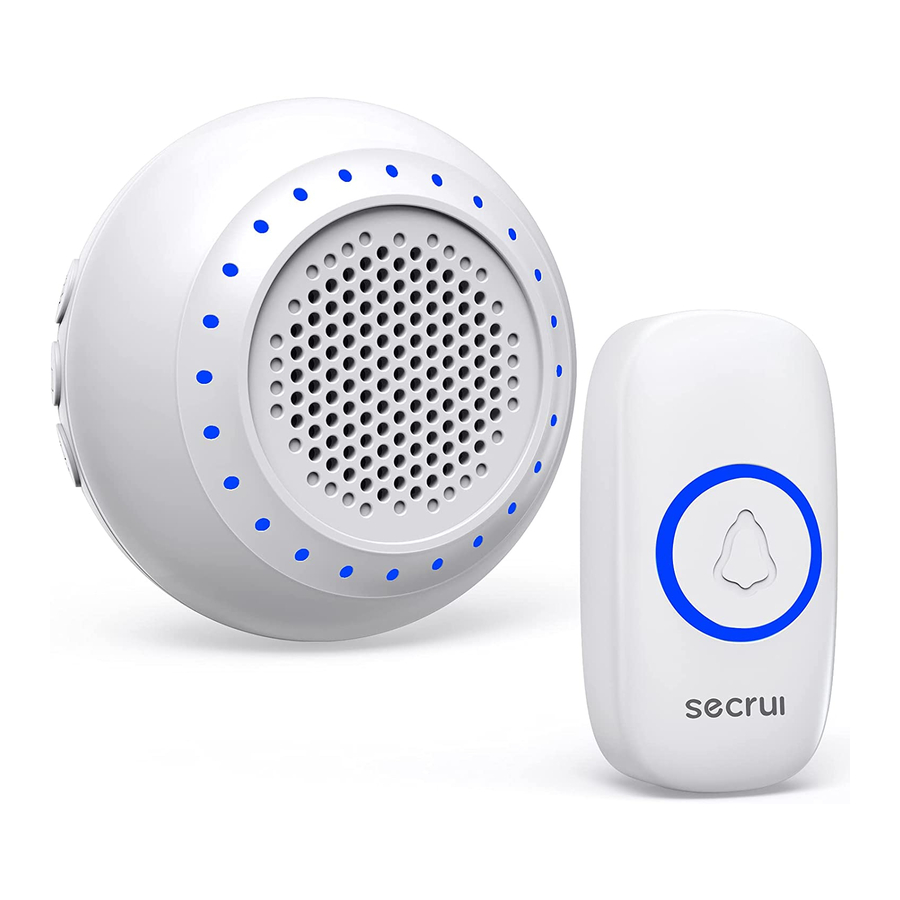

1 x Secrui wireless doorbell receiver
1 x Secrui transmitter button
1 x Double-side adhesive table
1 x Secrui User manual

Product features

1. 4 levels of adjustable volume.
2. 32 ringtones options
3. Memory function
4. Fixed tone buttons settable
5. Each doorbell receiver works with up to 20 transmitter buttons at most.

Product Specification

1. Doorbell receiver power supply: 100-240V
2. Doorbell receiver working current: 100mA
3. Battery lifetime: 3 years
4. Transmitter button working voltage: 12V (built-in battery)
5. Sound volume: 25dB - 130dB
6. Working frequency: 433MHZ
7. Wireless range: 1000ft (in open air)

Operation instruction

Short press---press button for <3S
Long press---press button for >3S

Receiver power on

Plug the doorbell receiver into the AC Electric outlet. The doorbell receiver will beep once and LED light will flash in each color circularly.

Chime setting

1. Short press: Loop tones in sequence and play the current tones.
2. Long press: Change tones loop direction.

Volume adjustment

1. Short press to increase or decrease the volume
2. The volume will turn to maximum automatically when the doorbell receiver reboots.

Doorbell Transmitter button pairing

1. Long press on doorbell receiver, the LED light flashes and beeps once, the doorbell receiver has entered the pairing state.
2. Short press transmitter button.
3. Short press , the doorbell receiver LED light is off.
4. Short press transmitter button, the pairing is done.

Recommend: Fixed-tone transmitter button pairing

(1 doorbell receiver with 2 or more transmitter buttons)

1. Short Press , select a tone, long press and , do not release them until the doorbell receiver LED light is green and beeps
2. Short press transmitter button A.
3. Short press , the doorbell receiver LED light is off, then short press transmitter button A. Done!
4. Short Press , select another tone, long press and , do not release them until the doorbell receiver LED light is green and beeps.
5. Short press transmitter button B.
6. Short press , the doorbell receiver LED light is off, then short press transmitter button B. Done!

Note: When the doorbell receiver is in pairing state: short press any key on the doorbell receiver or leave it 20 seconds without any operation, the doorbell receiver will quit the pairing state automatically.

Delete pairing method

1. Unplug the doorbell receiver.
2. Press and hold button, plug in doorbell receiver. (Do not release the button until the doorbell receiver LED light flashes and beeps 10 times, then beeps continues)
3. Delete pairing is done!

Attention

Do not let children play with it.

Do not expose the doorbell receiver to rain, fire, excess moisture or snow.

Do not disassemble.

Do not operate product with damage cord or plug.

Do not throw or shake the product.

For any product issue, we sincerely appreciate if you could contact us.
