Boundless CFX Manual

What's in the Box

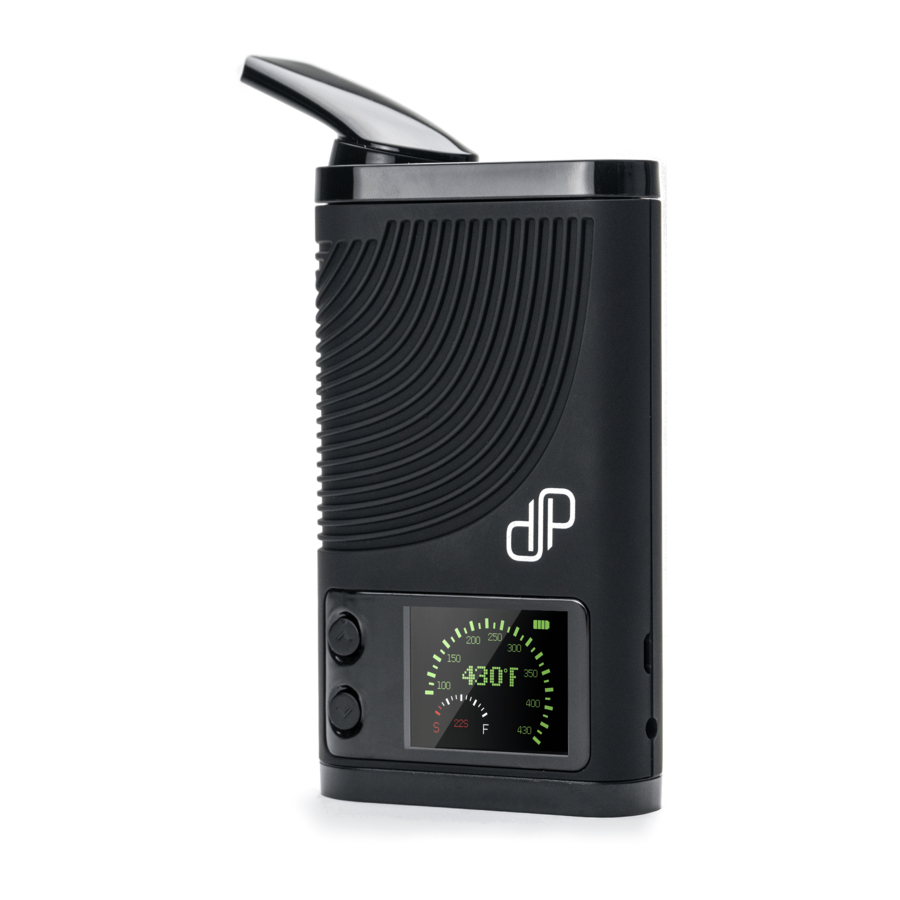

1 CFX Dry Herb Vaporizer
1 Liquid/Wax Chamber (Organic Cotton)
3 Stainless Steel Screens
1 Packing Tool and Dabber
1 Cleaning Brush
1 USB Charger
1 DC Adapter
1 User Manual

Key Features

• 1.77'' Colored Display with Full Range Temperature Control: 100˚F - 430˚F.
• Next Generation Patented Convection-Airflow-System (CAS) Technology.
• Portable Vaporizer that is Ergonomically Designed and Easy to Hold and Operate.
• Non Combustion Vaporizer.
• Fully Isolated Air Path allows for Clean and Pure Vaping.
• Compact, Rugged Design.
• Vibration Feedback for Operations.
• Built with Medical and Food Grade Material.
• Dual Charging: Fast Charging DC 12V 1.5A Port, Regular Charging Micro 5-Pin 5V 2A Port.

What's in a CFX Vape?

Product Configuration

1. Power Button - On/Off with Vibration Feedback.
2. Temperature Control Buttons - Adjusting accurately by 1˚F per setting, 100˚F-430˚F.
3. Mouthpiece - Food Grade, Rotary 360°, Vape from any direction.
4. Mouthpiece Base - Made with different easy disassembled components.
5. Housing - Hot-Dissipation Design. Rugged and Ergonomically Designed.
6. Display - 1.77'' TFT Colored Display indicates Temperature Information, Battery Status, Duration Timer etc.
7. USB Charge Port - Regular Charging, Micro 5-Pin 5V 2A is best suggested.
8. DC Charging Port - Fast Charging, DC 12V 1.5A.
9. Vaporizer Base - Air Inflow.
10. Liquid/Wax Chamber - Fill your choice oil/waxy (not the same time)

How to Use CFX with Dry Herbs?

How to LOAD

• Remove mouthpiece from the CFX. Insert Screen into ceramic heating camber.
  Note: Screens (3 included) in the housing unit and heating chamber can be changed periodically to ensure clean vaping. Additional screens sold separately.
• Load choice blend loosely into the ceramic heating chamber. Tamp down with the dabber tool. Do not over-fill. (note: do not turn on device while loading blend).
• Attach CFX mouthpiece.

ACTIVATE

• Rapidly press Power button five times within 2 seconds to power on CFX. The display will turn on.
• The display indicates the Temperature Information, Battery Status, Session Timer etc.
• The Session time is 300 seconds (5 minutes). "S" is short for Starting, "F" is short for Finishing.
• The Temperature Range is 100˚F-430˚F, shown as below:


DISPLAY INDICATION

When setting the Temperature, the display is Red.

After Temperature is reached, the display turns Green. With Session Timer running.

How to Use CFX Vape with oil/wax

LOAD

Oil

• Fill oil/wax chamber with at least 5 drops of (0.2 - 0.3ml) oil. Let oil settle for a few seconds.
• Insert oil/wax chamber into ceramic heating chamber (note: do not turn on device while loading oil/wax chamber).

Wax

• Place concentrated oil around the recess of the lid. Screw lid on to oil/wax chamber.
• Insert oil/wax chamber, with lid facing down towards ceramic heating chamber (note: do not turn on device while loading the oil/wax chamber.

Fully Isolated Air Path for Clean Vaping

Air is fully directed to the heating chamber, isolating its path from the electronics. Ensuring a clean and pure vaping each time.

Technical Specifications

CFX VAPE

• Dimension: 5.07''H x 1.26''D x 2.79''W (129mmH x 32mmD x 71mmW)
• Temperature Levels: 100˚F - 430˚F
• Capacity: 2500mAh
• Output Voltage: 7.4V
• Power On/Off: Press power button 5 times rapidly
• Safety Power Duration: 5 minutes
• Safeguard: Dual PCBA/IC Protection

Battery and Charging

CHARGING

• Initially charge the CFX for 4 to 4.5 hours by Micro 5-Pin Port (5V 2A), 1 to 1.5 hour by DC Port (12V 1.5A). The battery will stop charging when the icon is full. When the battery level is low, charge battery with included Micro 5-Pin Charger or DC Charger. Low battery level will be indicated with icon flashing 10 times repeatedly.
• Charging the CFX while powered on, the OLED display will stay lit.
• Charging the CFX while powered off, only the battery icon will be visible.
• Do not use CFX while charging. This will cause damage to the device.
• To prevent the device from overheating, do not leave the charger plugged in overnight.
• Do not leave charger plugged in or unattended without the device. Do not charge unit on bare carpet or rug.

BATTERY

The device contains a Lithium-Ion battery. Take caution and dispose in the correct receptacle. Do not discard in trash. Do not over charge. Do not short circuit the battery.

Notice: Lithium Ion Batteries are subject to degradation and reduced run time over the course of regular use while Boundless Technology took great care in selecting premium quality long life Lithium Ion batteries due to their non-memory features and ability to cycle 300 times preceding degradation, battery life will gradually diminish with extended use.

How to Load and Remove the Mouthpiece

How to Load the Mouthpiece Components:

1. Place Mouthpiece Components and the Device at a 90°Angle.
2. Press the Mouthpiece Components into the device downward as shown.
3. Rotate the Mouthpiece Components clockwise.

To Remove follow above steps in reverse.

How to Disassemble the Mouthpiece Components

1. Use the Opener to pry open as shown, to disassemble the Mouthpiece Components into two parts.
2. To disassemble the Silicone Ring, use the Opener again to pry apart as shown.
3. Unscrew the Filter components from the Mouthpiece Base Bottom, to disassemble the Filter into Filter Top and Filter Base.
4. Unscrew the Mouthpiece from the Mouthpiece Base Top.

Safety

WARNING

Failure to follow these safety instructions could result in personal injury or damage. Users of this device do so at their own risk. Neither Boundless Technology, LLC nor its retailers assume any responsibility or liability associated with the use/misuse of the device. Boundless Technology branded products are intended for adult use and consumption only. Keep this booklet in a safe place for future reference.

DISCLAIMER

This device is designed as a mobile solution for the practitioners of aromatherapy and should be used for dry herbal blends as indicated. This device is not intended for use with illegal substances.

CHOKING HAZARD

The CFX contains small parts which may be a choking hazard to small children. Keep device away from children.

HANDLING

• Do not drop, deform, bend, crush, puncture, incinerate, microwave, shred, paint or insert foreign objects into a Boundless Technology, LLC CFX.
• Do not clean CFX other than instructed by Boundless Technology, LLC.
• Do not attempt to repair or modify CFX yourself.
• Do not use a damaged CFX charger or non Boundless Technology charger. Incompatible chargers may carry different voltage, which may be a fire hazard. Use only the charger provided. Failure to do so will void the limited warranty offered on Boundless Technology Technology products.
• Use caution when handling CFX, the heating chamber area is hot powered on. Refrain from direct contact with the main heating chamber when hot. Do not leave the device unattended when it is powered on or while the device is still hot.

Safety Features

SLEEP PROTECTION

The device is equipped with a safety sleep mode. When the device is powered on and after 6 minutes vaping, it will go into sleep mode to avoid over-use. Press and Hold the power button for 3 seconds to resume vaping.

MEMORY FUNCTION

The device features a smart memory function. It will memorize the data of current use before powering off. When powered on for next use, the last setting will be displayed.

SMART TEMPERATURE LEVELS

The CFX is equipped with a smart OLED display to manually configure any desired temperature setting within the modular range.

Warranty

1 YEAR LIMITED WARRANTY
Boundless Technology, LLC warrants this Boundless Technology, LLC branded device against defects in materials and workmanship under normal use for a period of one (1) year from the date of retail purchase by the original end-user. The original bill of sale is required to redeem warranty. The limited warranty covers one (1) year for electronics, ceramic heating chamber, structural integrity and attachments. The Lithium-Ion battery ninety (90) days. If a physical defect arises and a claim is made within the Warranty Period, at its option and to the extent permitted by law, Boundless Technology will either:

• repair the product defect
• exchange the product with a product warranty that is new or functionally equivalent
• refund the purchase price of the device.

EXCLUSIONS & LIMITATIONS
The Limited Warranty applies only to products manufactured by Boundless Technology, LLC, which can be identified by the "Boundless Technology, LLC" trademark, tradename or logo affixed to the device. The Limited Warranty does not apply to any non-Boundless Technology, LLC products. This warranty does not apply to (i) damage caused by accident, abuse, misuse, flood, fire, earthquake, acts of piracy or other external causes; (ii) damage caused by operating the product outside the permitted or intended use as described by Boundless Technology, LLC; (iii) a device or part that has been modified to alter the funcitonality or capability without the written permission of Boundless Technology; (iv) cosmetic damage, including but not limited to dents, scratches and/or broken plastic.
This warranty applies to the original end-user and is non-transferrable. Boundless Technology, LLC warranties only apply to devices that are purchased from authorized retailers serviced by an authorized Boundless Technology, LLC distributor.
For questions regarding authorized retailers, additional warranty details, please visit: www.BNDLSVapes.com
