Summary of Contents for Clarion MCD360
-
Page 2: Table Of Contents
The Clarion MCD360 has the ability to accept one, two or three sets of RCA cables as an input. Both the front and rear outputs of the MCD360 make use of a built-in 18dB per octave electronic crossover that is continuously variable from 32Hz to 8kHz. -
Page 3: Input/Output Connections And Audio Controls

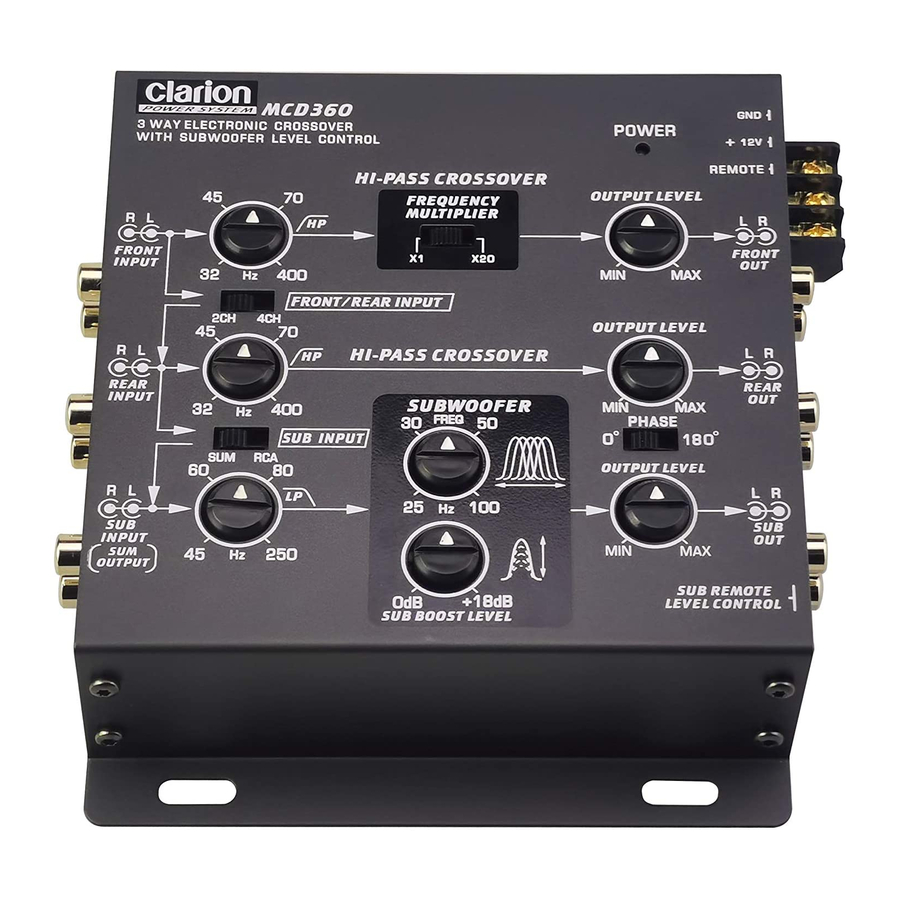

INPUT/OUTPUT CONNECTIONS AND AUDIO CONTROLS The top panel of MCD360 contains the controls for the crossover and output levels as shown below. Figure 1- 1. Front RCA Input 2. Front Crossover Frequency Control 3. Front/Rear Input Selection Switch 4. Rear RCA Input 5. - Page 4 • Remote Sub Level Control - When the remote sub level control is plugged into the MCD360, the sub output level control on the MCD360 will be defeated. Instead the remote sub level control will set the sub output level.
-
Page 5: Mounting Precautions
MOUNTING PRECAUTIONS The MCD360 crossover can be mounted in any convenient location in your vehicle that allows access to the controls and is away from moisture. The flanges on the chassis have mounting holes which can be used as a template for screw holes. -
Page 6: Wiring Precautions
Read all wiring precautions. If you are not sure of the connections, contact your authorized Clarion dealer. If you are using a source unit, without a remote turn-on lead, the MCD360 can be turned on with a switched accessory lead. You can find this accessory power source in the factory harness at the back of the radio. - Page 7 Figure 3 - Electrical connections for the MCD-360...
-
Page 8: Applications
APPLICATIONS The MCD360 allows you to design either a 2-way system with front and rear output or a full 3-way system. After determining which system best fits your requirements, thoroughly read and follow the directions below for your system type. - Page 9 For 2 channel input, configure switches as shown. For 4 channel input with front and rear fade, configure switches as shown. For front and rear fade with dedicated subwoofer input, configure switches as shown. Figure 5-...
- Page 10 2-Way System Application Notes After all the wiring connections are made and before the system is turned on for the first time, you need to make some basic adjustments. It is important that the High-Pass and Low-Pass Frequency Controls are set correctly before turning on the system for the first time.
- Page 11 5. Fine tune the bass response using the Sub Boost Controls. 6. Plug the Remote Sub Level Control cable back into the MCD360 crossover. Setting the Sub Boost Level 1.
- Page 12 3-Way System Figure 6 - In this illustration, the MCD360 is configured for single channel input with dedicated amplifiers for tweeters, midranges and subwoofer(s).
- Page 13 1. Be sure the front and rear High-Pass crossovers are set properly. NOTE: When the MCD360 is used in a 3-way system, the front outputs must be connected to the tweeteramplifierand the rearoutputs must be connected to the midrange amplifier.
-
Page 14: Troubleshooting
5. Fine tune the bass response using the Sub Boost Controls. 6. Plug the Remote Sub Level Control cable back into the MCD360 crossover. Setting the Sub Boost Level 1. -
Page 15: Product Specs
Problem: Midrange speakers “pop” with loud passages. Solution: High-Pass Frequency Control is set too low. Gain Controls on amplifiers are set incorrectly. Reduce the gain setting on high frequency amplifier. Problem: One channel does not operate. Solution: Swap left and right connections at the source unit. If the problem trades sides in the vehicle, then the source unit is the defective. - Page 16 661 W. Redondo Beach Blvd. Gardena, CA 90247 1-800-GO-CLARION www.clarion-usa.com MCD360-10 Rev.1 (02/00)
