Summary of Contents for Clarion EQS560
-
Page 2: Table Of Contents
The subwoofer output makes use of a built-in 18dB per octave electronic crossover that is fixed at 60Hz or 90Hz. Built into the EQS560 is an auxiliary input that allows use with portable devices (such as an MP3 player) or a video system. -
Page 3: Control Glossary

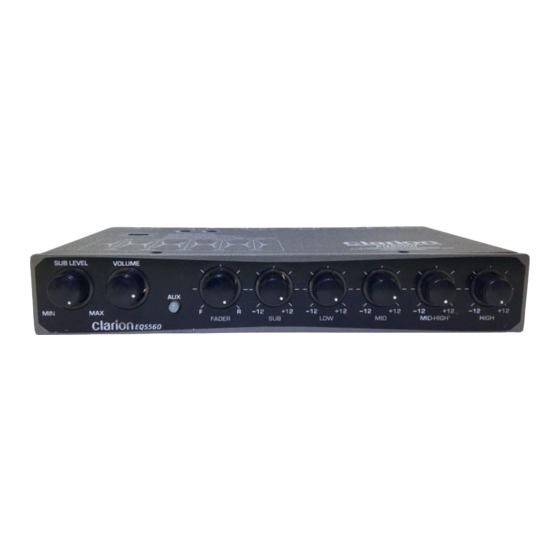

1. Sub Level 2. Volume Control 3. Aux Switch 4. Fader Control 5. Sub Frequency Adjustment 6. Low Frequency Adjustment 7. Mid Frequency Adjustment 8. Mid-High Frequency Adjustment 9. High Frequency Adjustment CONTROL GLOSSARY • Volume Control - This is the master volume control for the system. •... -
Page 4: Applications
The system diagram below will help you plan your own installation. MOUNTING PRECAUTIONS The EQS560 graphic equalizer can be mounted next to the source unit or under the dash with the supplied mounting brackets. For easy system set-up, mount the equalizer so the front panel controls will be easily accessible from the driver’s seat after installation. -
Page 5: Wiring Precautions
RCA cables that are no longer than necessary to make a direct connection with the source unit and amplifiers. 5. If you are using a source unit, without a remote turn-on lead, the EQS560 can be turned on with a switched accessory lead. You can find this accessory power source in the factory harness at the back of the radio. -
Page 6: System Set-Up
After completing the system wiring, follow the steps below to properly adjust the EQS560. 1. Turn the master volume control on the EQS560 and the amplifier gain controls to their minimum setting. 2. Turn the source unit on and increase the volume until distortion is heard, then reduce volume just below this point.* Once the source unit volume has... -
Page 7: Troubleshooting
4. Adjust the auxiliary input gain controls, located on the top panel of the EQS560, so that the volume of the auxiliary source matches the volume of the main source. TROUBLESHOOTING Problem Unit does not work; no lights. Solution • Power wires are not connected. Check battery and ground wiring at unit;... - Page 8 661 W. Redondo Beach Blvd. Gardena, CA 90247 1-800-GO-CLARION www.clarion-usa.com PEQ460-10 Rev.1 (12/99)
