Ver 1.6

May.2018

RD-UM-200(E) Rev.0

Rodek Co.,Ltd

Table of Contents

Need help?

Do you have a question about the RT-200 and is the answer not in the manual?

Questions and answers

Summary of Contents for RoDEK RT-200

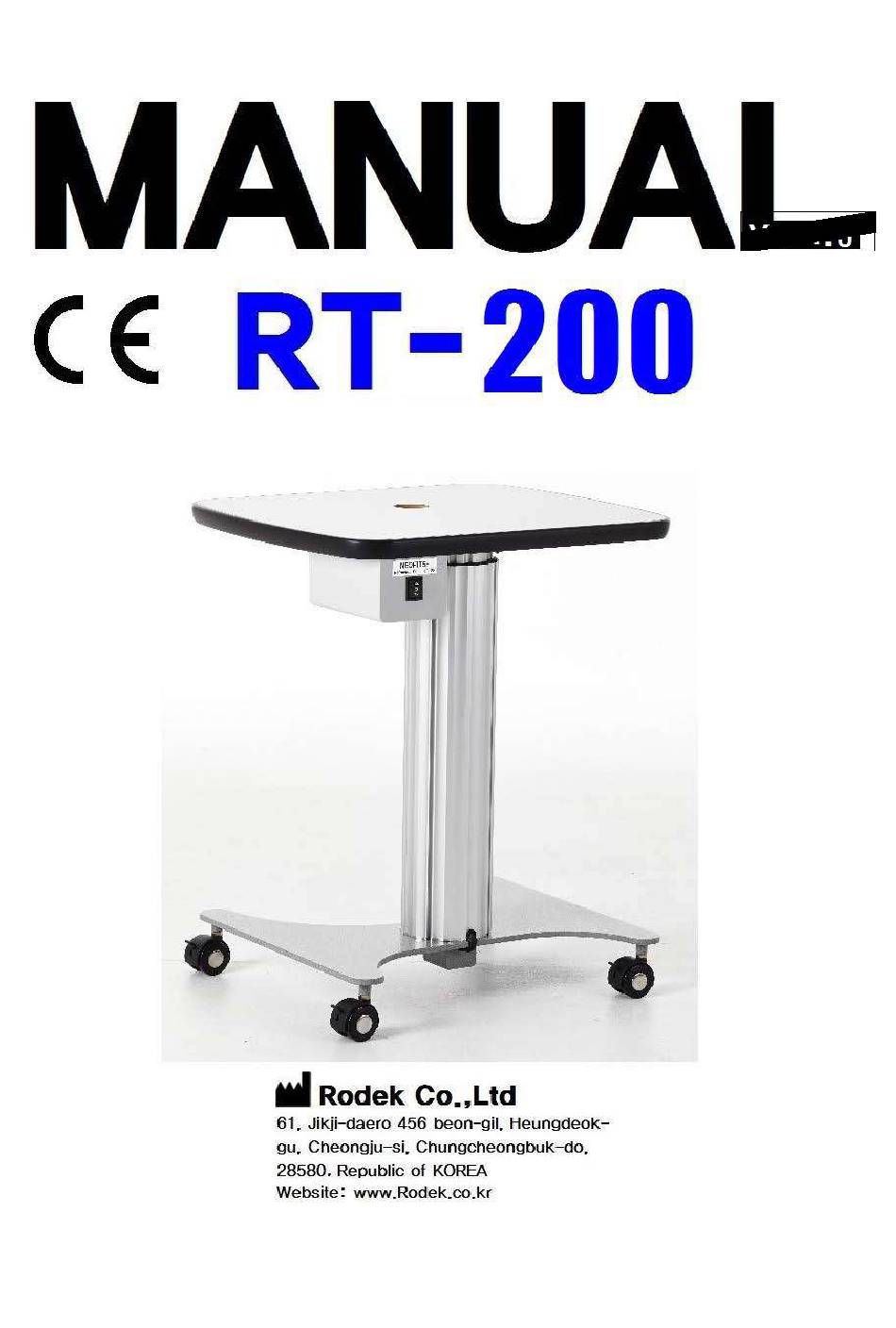

Page 1 Ver 1.6 May.2018 RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 2: Table Of Contents
Detailed Description------------------------------------------------22 Rough Map of company ------------------------------------------------23 Preface ■ Thank you for purchasing the Refraction Table RT-200. Be sure to read the "Safety Precautions" carefully before use. Be sure to observe the precautions shown here because they contain important safety information.
Page 3: Safety Alert Signs
Template for a warning sign (yellow background and black triangle); The black symbol or text shall be placed centrally on the background, or a supplementary text next to the sign. RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 4 4. For more detailed information about disposal of your waste products, please contact your city office, waste disposal service or the shop where you purchased the product. RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 5 To ensure the protection and electrical safety of the equipment, the power socket to which the equipment is connected must not have multiple sockets or other connections for power use. RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 6 EN 60601-1, 3rd edition for requirements. The external and internal socket-outlets shall be connected with ophthalmic instruments only complying with IEC 60601-1. Name of Each Part ■ RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 7: Management
The items listed below can be managed by customers:  Fuse Replacement The fuse is a replaceable item. Refer to its handling method in the manual. RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 8 Do not arbitrarily manipulate people who do not have the knowledge of using the equipment, and do not allow children to access or manipulate the equipment arbitrarily. RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 9 ③ After connecting the power, check the machine for proper operation. Operation Method and Procedures ① Insert the POWER CABLE into the input socket at the bottom of the equipment and connect it to a commercial power supply. RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 10 Push the green switch on the control panel at the left of the ② product to the “I” position. The light will turn green (POWER ON). Press the UP(▲)/DOWN(▼) Switch at the lower of the table to ③ adjust the table’s height. RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 11 Position the POWER switch to of the POWER Switch “I,” and check that the green table does turns ON. LED turns on. not work Refer to “fuse replacement.” properly Check the fuse for normal conditions. -10- RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 12 Do not place the equipment in a dusty area.  Replacement of Fuse Disconnect the fuse from the power cord before Warning replacing. Otherwise, electric shock may occur. Use a rated fuse only. Make sure that the power switch is “OFF”. -11- RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 13: Warranty Period
■ How to keep and manage after use When you are finished, lower the chair to the lowest position Move the table for treatment to the rest position after use -12- RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 14 Clean the equipment with a soft cotton cloth. If the surface is dirty, spray it with household cleaner and wipe it with a cotton swab. If equipment moves during use, check table’s horizontal state. Table U/D Motor Duty Cycle: 10% -13- RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 15: Assembly And Installation
The following tools are required. Driver(+)  Hexagon Wrench(Allen Wrench)  Tools with pointed ends such as an awl  1. Assembly the motor column on the table.  Use M8*20L Round Headed Bolts (4 pieces). -14- RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 16 2. Fasten the cable at the top of the motor column as below. Fasten the power cable so that it doesn't fall out.  Tighten the connector clockwise to the groove.  -15- RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 17 3. Remove the bolt fastened at the bottom of the motor column.  Separate the 4 M5*30L Flat Headed Bolts. 4. Fasten the base to the motor column.  Use 4 M5*30L Flat Headed Bolts.  Pay attention to the direction of the base tightening. -16- RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 18 ①Fasten the three Terminal Sockets inside the power input box. ②Insert the cable holder into the groove of the power input box. ③Place the power input box on the top of the base as it is. -17- RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 19 6. Fasten the power input box to the base.  Fasten the M4*6L Round Head Bolts (4). 7. Fasten the four casters to the base. -18- RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 20: Storage After Use & Maintenance
 Storage & transportation : -10 to +55°C, 10 to 95% r.h., 50 to 106 kPa  Do not store the equipment in a chemical storage or gas- generating area. Clean the accessories, power cords, etc. before storage. Clean the equipment thoroughly for future use. -19- RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 21: Composition Of The Product
Composition of the Product ■ ① Table ② Motor Column ③ Base Plate ④ Power Inlet Box ⑤ Caseter(4ea) ⑥ M8*20L Round Head Wrench Bolt(4ea) ⑦ M5*30L Flat Headed Bolt(4ea) ⑧ M4*6L Round Head Bolt(4ea) -20- RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
Page 22: Detailed Description
Cheongju-si, Chungcheongbuk-do, 28580, Korea • TEL: +82-43-274-2520 • FAX: +82-43-275-2520 • Website: http://www.Rodek.co.kr • Product Name, Model Name: Refraction table, RT-200 2. Package Unit: 1 BOX 3. Technical Specifications • Table size: 550x500mm • Height of table: 670~970mm • Rated Power: 230V~ 50/60 ㎐...
Page 23: Rough Map Of Company
Rough Map of the Company ■ -22- RD-UM-200(E) Rev.0 Rodek Co.,Ltd...
