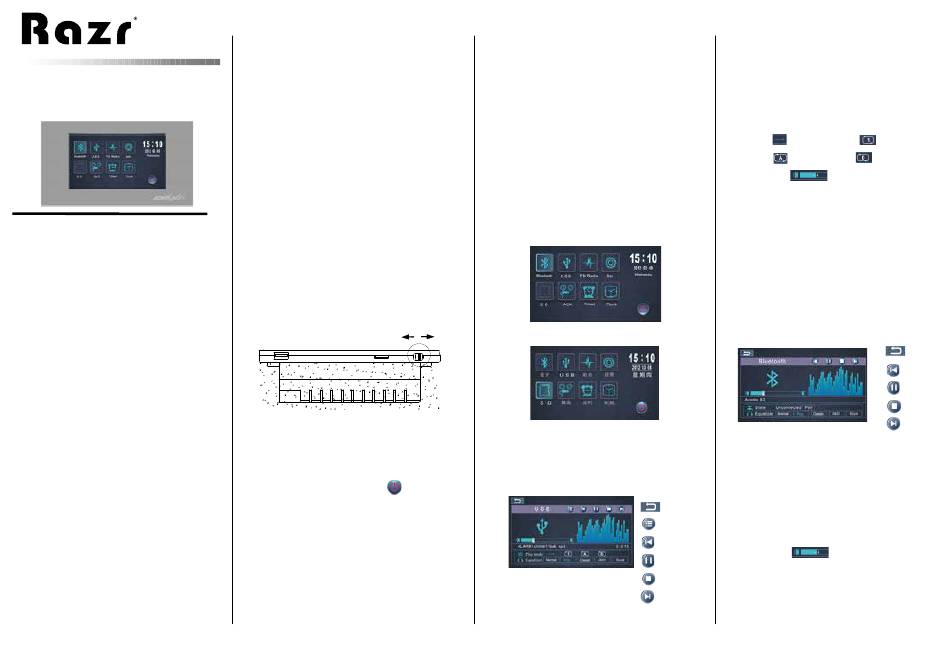

Razr DM836 Manual

Back Ground Music Mini Controller
DM836
Please read the manual before install or
operate the system.
Function Instruction
Unique, simple appearance design.
-
- 4.3'' TFT true color screen full touch
screen, with graphical operation
interface.
- 5 sources: USB, SD card (support MP3,
WMA format,etc.), built-in FM tuner,
AUX and you can play music on your
device via Bluetooth.
- Built-in Hi-Fi digital amplifier, offering
2.1 outputs connect to active subwoofer.
- Built-in DSP effect, offering 5 effect
options: normal, pop, classic, jazz and
rock.
- Independent timer with power off
memory function.
Background options.
-
- RS485 interface for connecting to
intelligent central control, and integrate
with other smart home devices.
RJ45 network interface， connect to LAN
-
and wireless router. With wireless router
DM836 can be controlled by iPhone,
iPad, iPod or Android smart phone.
Infrared control.
-
Functions
1. Power on/Power off
⑴ Power on: Push the right bottom switch to
left and wait 5s to enter the main
interface. （See Chart 1）
⑵ Power off： Push the right bottom switch to
right （See Chart 1）.
Tips: Restart should be 5s later after power
On Off
off.
（Chart 1 Power On/Off）
2
. . . . Standby/Power on o
⑴ Standby： Keep touching for 2s in
main interface and enter the standby state.
DM836 still can be controlled by smart
phone or RS485 device when standby.
⑵ Power on： When standby, touch screen to
turn on.
3.
Main Interface
5 audio sources:
Bluetooth/USB/SD Card
/FM/AUX & System Set, Timer and Clock.
⑴ Choose audio source by first touch audio
button, enter to operation interface by
second touch.
⑵ In the main interface, USB/SD have 3
states: ① 'Grey' when without USB/SD
card insert (see chart 2), ② 'Blue' when
USB/SD card insert (see chart 2), ③
'Light up' when the USB/SD card is
selected (see chart 3).
（Chart 2 Main interface）
（Chart 3 Main interface）
USB/SD card
USB sample (SD card is same as USB):
a " "Back
b " "List
c " "PREV
d " "Pause/play
e " "Stop
（Chart 4 USB operation）
f " "Next
1 ． Touch "USB" (or use controller) to enter
USB operation interface（see chart 4）.
2． Choose USB play mode by touch following
icon：
"list play ○ "single cycle
○ 1 " 2 "
"all play ○ "list cycle
○ " "
3 4
3．Touch" "icon to control volume.
4．Touch "standard", "pop", "jazz", "classic",
"rock" to choose DSP sound mode.
Tips: Can NOT operate when without USB or
SD Card insert.
Bluetooth
1．Touch "blue tooth" in main screen (or use
controller) to enter Bluetooth operation
interface.（see chart 5）.
a " "Back
b " "PREV
c " "Pause/play
d " "Stop
e " "Next
（Chart 5 Bluetooth Operation）
2 ． Take play music on mobile phone as
sample: firstly, turn on Bluetooth search
in mobile, then touch "match" in DM836
(DM836 Bluetooth item is "Auxdio B01),
When match you will hear a "Bi" sound .
3．Touch " "to control volume.
4．Touch "standard", "pop", "jazz", "classic",
"rock" to choose DSP sound mode.
Tips: After first time matched, DM836 can be
