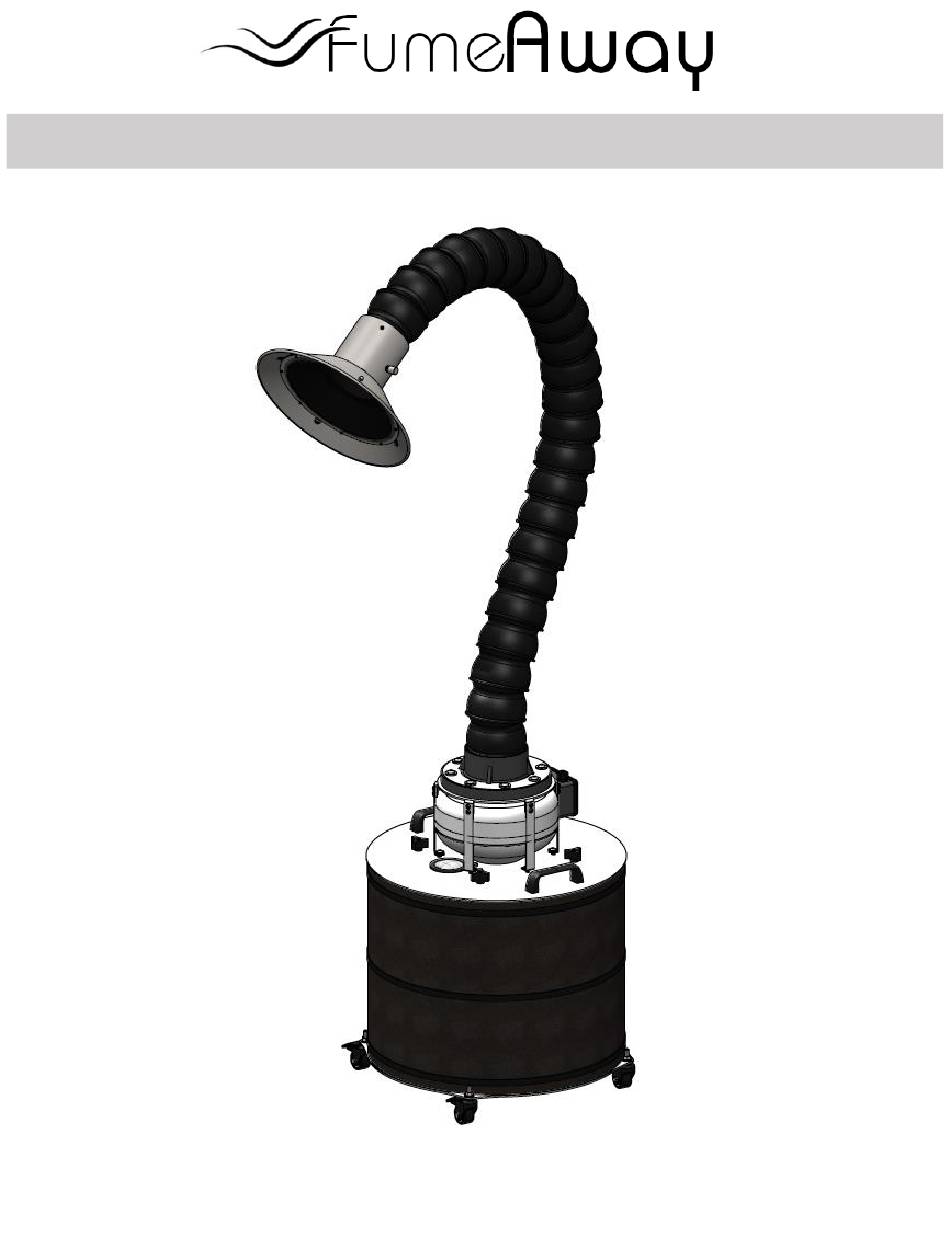

- Page 1 User Manual FumeAway Fume Extractor | MODEL #FA200 For Industrial or Commercial Use Only Manufactured by: Mistaway Filtration Systems 14 Industrial Park Rd. Troy, NY 12180 www.mistawaycollector.com...
-
Page 2: Table Of Contents
Table of Contents SECTION 1: SAFETY ....................2 Safety Guidelines ................................2 WARNINGS ..................................3 SECTION 2: INTRODUCTION .................. 4 DESCRIPTION ..................................4 APPLICATIONS ..................................4 DISCLAIMER ..................................4 WELDING FUME EXTRACTION CODES AND STANDARDS ....................4 3D PRINTING ................................... 5 WELDING .................................. -
Page 3: Section 1: Safety
SECTION 1: SAFETY CAUTION! For Your Own Safety, Please Read This Entire Operation Manual Before Using The FA200 Unit. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury. Safety Guidelines •... -
Page 4: Warnings
WARNINGS 1. CUSTOMER/OWNER/SUPERVISOR MUST CONDUCT HAZARD ASSESMENTS AS NEEDED AND PERFORM AIR SAMPLING TO ENSURE SAFE VOC LEVELS AND PROPER AIR QUALITY FOR WORKERS. IF REQUIRED ALWAYS WEAR A RESPIRATOR. THIS FUME EXTRACTOR IS NOT A SUBSTITUTE FOR A RESPIRATOR. 2. -
Page 5: Section 2: Introduction
SECTION 2: INTRODUCTION Description The FumeAway FA200 Extractor is a Portable Fume Filtration unit that is designed to provide high efficiency filtration of fumes generated from a variety of different applications (see below). The FA-200 is designed to maximize filter life while remaining as compact, lightweight, and quiet as possible. -
Page 6: 3D Printing
3D Printing The FA200 Extractor can be used directly for fume extraction of 3D printing applications such as SLA/Resin 3D Printers, and FDM printing of ABS. It can also be used for FDM printing to prevent fume build-up from the materials that are more commonly used such as PLA. -
Page 7: Section 3: Specifications
SECTION 3: SPECIFICATIONS Patent Pending FA200 Air Filtration Base Unit Specifications Power Usage 120V AC, 60Hz, 1 phase, 101 Watts, Max 0.9 amps Air Flow 190 CFM, Variable Speed Noise 62 dB @ 6ft 5’, standard 3 prong plug (NEMA 5-15P) Power Cord 15”... -
Page 8: Section 4: Unpacking
SECTION 4: UNPACKING The Base Unit arrives assembled and ready to use. The unit is comprised of the components listed below. Item Number Description Base Assembly 1200-HEPA-95-C (95% efficiency at 0.3μm) Blower Assembly 5/16-18 Threaded Knob Page | 7... -
Page 9: Section 5: Installation Instructions
SECTION 5: INSTALLATION INSTRUCTIONS Direct Machine Application The FA200 filtration system can be directly connected to machine via a ducting system. If the machine is not enclosed an enclosure could be fabricated for direct venting. Note that a hole may need to be cut on the machine enclosure for ducting. -
Page 10: Extraction Arm Accessory
Extraction Arm Accessory The FA200 filtration system includes an Extraction Arm Assembly. This accessory can be used to make the unit portable for use in multiple applications. The Extraction arm includes a spark guard screen to help prevent and mitigate the possibility of a fire. The Extraction Arm will arrive semi- assembled, and the customer will just need to mount it to the unit. - Page 11 Extraction Arm Assembly Page | 10...
-
Page 12: Section 6: Operational Instructions
SECTION 6: OPERATIONAL INSTRUCTIONS 1. Plug the AC plug into a 120V wall outlet. DO NOT TAMPER WITH OR MODIFY THE GROUNDING PRONG ON THE PLUG FOR ANY REASON! If you do not have access to a grounded outlet, consult an electrical professional to install the proper receptacle. 2. -
Page 13: Section 7: Filter Replacement
SECTION 7: FILTER REPLACEMENT Page | 12... - Page 14 Page | 13...
- Page 15 Page | 14...
-
Page 16: Section 8: Troubleshooting
Diagnose and fix the cause for high current draw and close the circuit breaker. Contact MistAway Support. Gauge reads in red (Dirty). Filters are clogged or dirty Replace primary filter unit via instructions shown in Section 7. -
Page 17: Warranty & Disclaimer
Any parts that are determined to be defective by Mistaway are to be returned shipping prepaid and will be repaired or replaced at Mistaway and shipped back to the customer.
