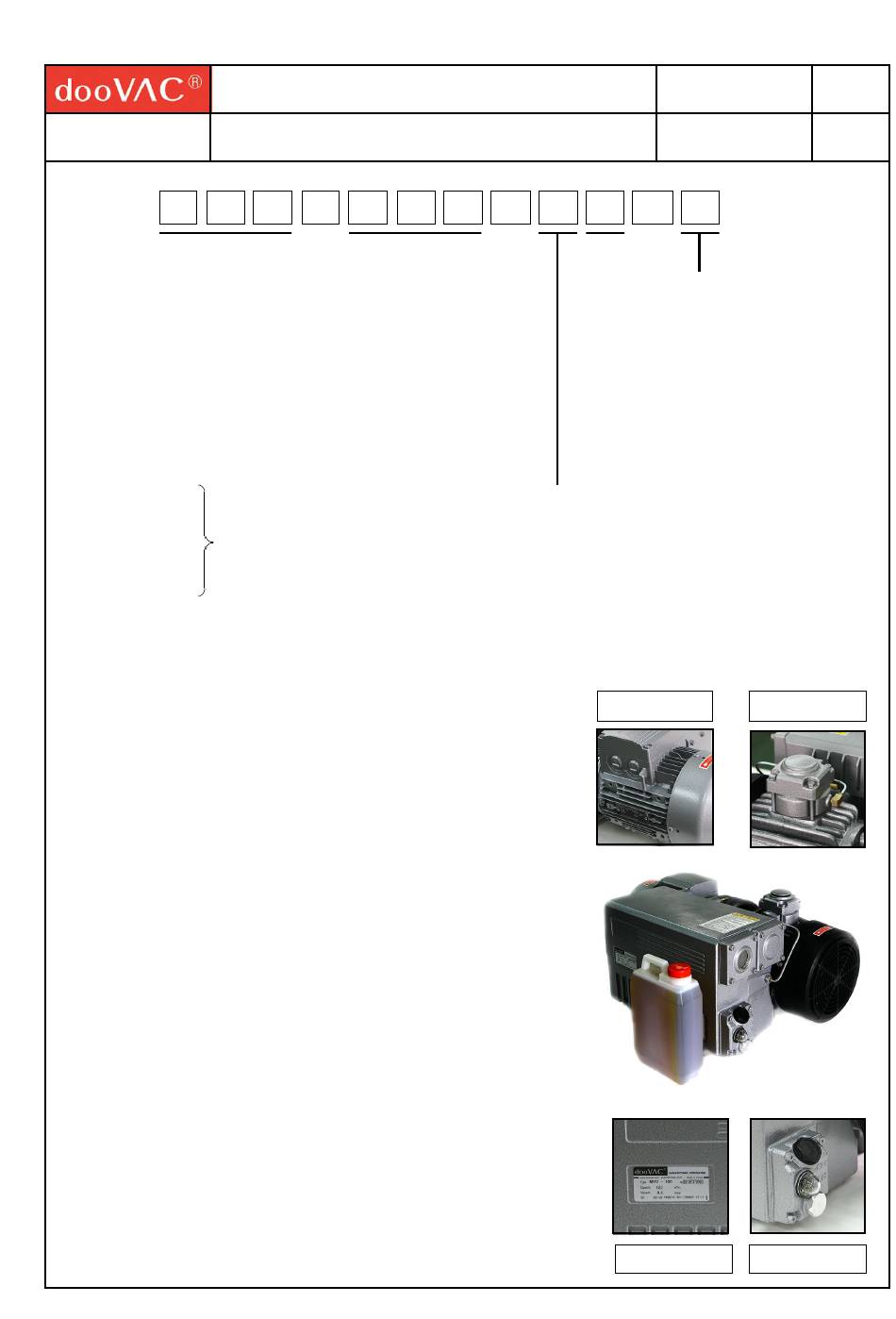

DOOVAC MVO-100 Installation Instruction

Maintenance guide
M V
Product's name division
MVO : Oil-circulated(built-in exhaust filter)
SVO : Oil-circulated(no built-in exhaust filter)
MOT : Oil-flooded
SML : Dry running
DWV(X) : Water-sealed
ENT : Medical purpose(otolaryngology)
DEN : Medical purpose(dentistry)
Product's volume mark
MVO form : m3/hr (50Hz standard)
SVO form
MOT form
SML form
DWV(X) form
ENT form
DEN form
Check the product
1. Make sure to check the product's nameplate and the order
information.
2. Check the package contents.
- Vacuum pump, particular oil.
3. Check the installation condition
1) Inhalant gas : air and inert gas
2) Inhalant gas temperature : 0℃ ~ 42℃
3) Ambient temperature : 5℃ ~ 40℃
4) Working pressure : below the maximum pressure of the pump.
[ 0.5 mbar below or 20 mbar below ]
4. Installation place
1) Install the product as little dirt and humidity as possible.
The place whose the ambient temperature is not over 40℃
2) Install the product where is easy to inspect and maintain.
The place where is easy to check the oil inlet.
3) Install horizontally where the ground is flat and around 25cm
space from the wall is needed for ventilation.
Vacuum pump installation instruction
Product check and installation preparation.
O - 1
Liter/min
0 0 - D
LV.1~2
PF001
A - B
The degree of a vacuum mark
No mark(A) : standard
B : 2mbar
C : 20mbar
Power frequency(Hz)
A : 50Hz
B : 60Hz
C : 50/60Hz
Power voltage(Volt).
A : single phase 110/220 V
B : single phase 220 V
C : single phase 110 V
D : three phase 220/380 V
E : three phase 380 V
F : three phase 220 V
G : three phase 440 V
H : three phase 460 V
Nameplate
Vacuum oil
Nameplate
1/11
Inlet port
MVO-100
Oil inlet
