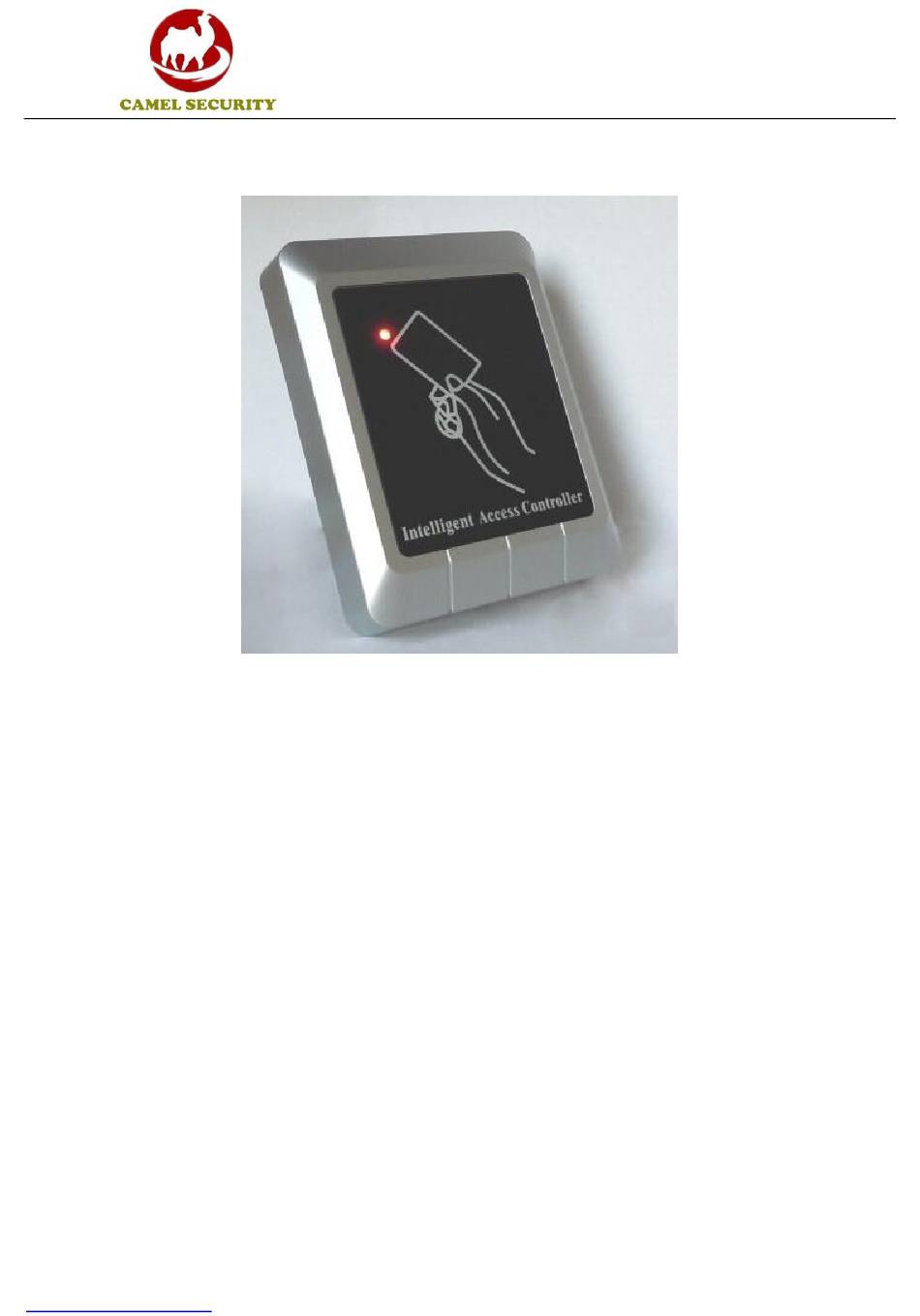

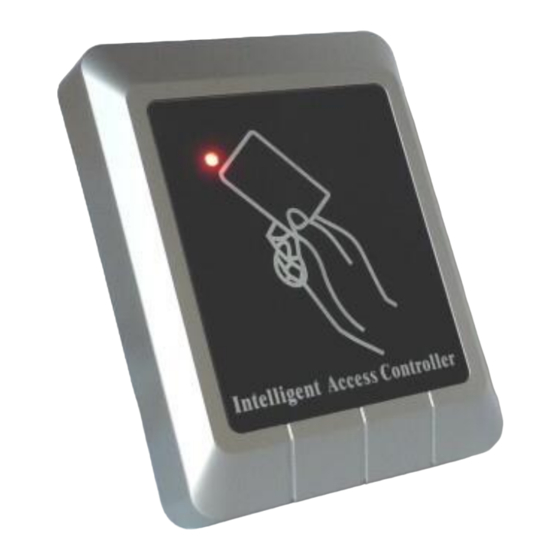

ACS14-W Standalone Controller without Keypad Manual
Characteristic parameter：
1、 Working Voltage： DC10V－DC20V
2、 Standby Current：<60mA
3、 ID card or EM compatible card，Read Range 5-15CM (distance depends on the coil and the installation environment)
4、 Capacity：A registration card, A deletion card , the user card 2000（Customizable card 5000 or 10000 card capacity）
5、 You can delete user card individually ,by infrared remote control feature.
6、 Open the door mould: Swipe user card to open the door and out switch door
7、 Output：Relay output (switch)；Unlock time 1S, 5S, 15S, reverse, adjustable four ways
8、 Operating Temperature：－40℃——60℃
9、 Humidity：<95%
10、 Remote control receiver distance：3M
11、Standby, red light with a frequency of 1HZ flash
12、Two reader coil interface, enabling access doors inside and outside the credit card
Issue card operation steps
Operation： Swipe registration card one time （buzz one time, yellow light） ——> Continuous swipe card， Then this card is the user card
（Login is successful, then buzz one time, green light） ，——> To exit the card operation, just swipe the registration card again.Note：
recommended that user's registered copy number, which can be convenient for future management.
After lost card
1、How to do after lost Registration card, remove the card or forget remote control password?
You can reset the function of card, operation steps as follow：
First off——> Dial No.1 to "ON" position，Then energized（Lights flash, buzz）——> Dial No.1 to "OFF" position， （Lights not flash,
buzz stop）——> Continuous swipe two new cards, the first card for the registration card, the second card for deletion，At the same
time the system remote control password recovery 123456.
2、How to do after lost user card?
Operation steps：Reference infrared remote control instructions！
