Summary of Contents for FootfallCam SpaceSense

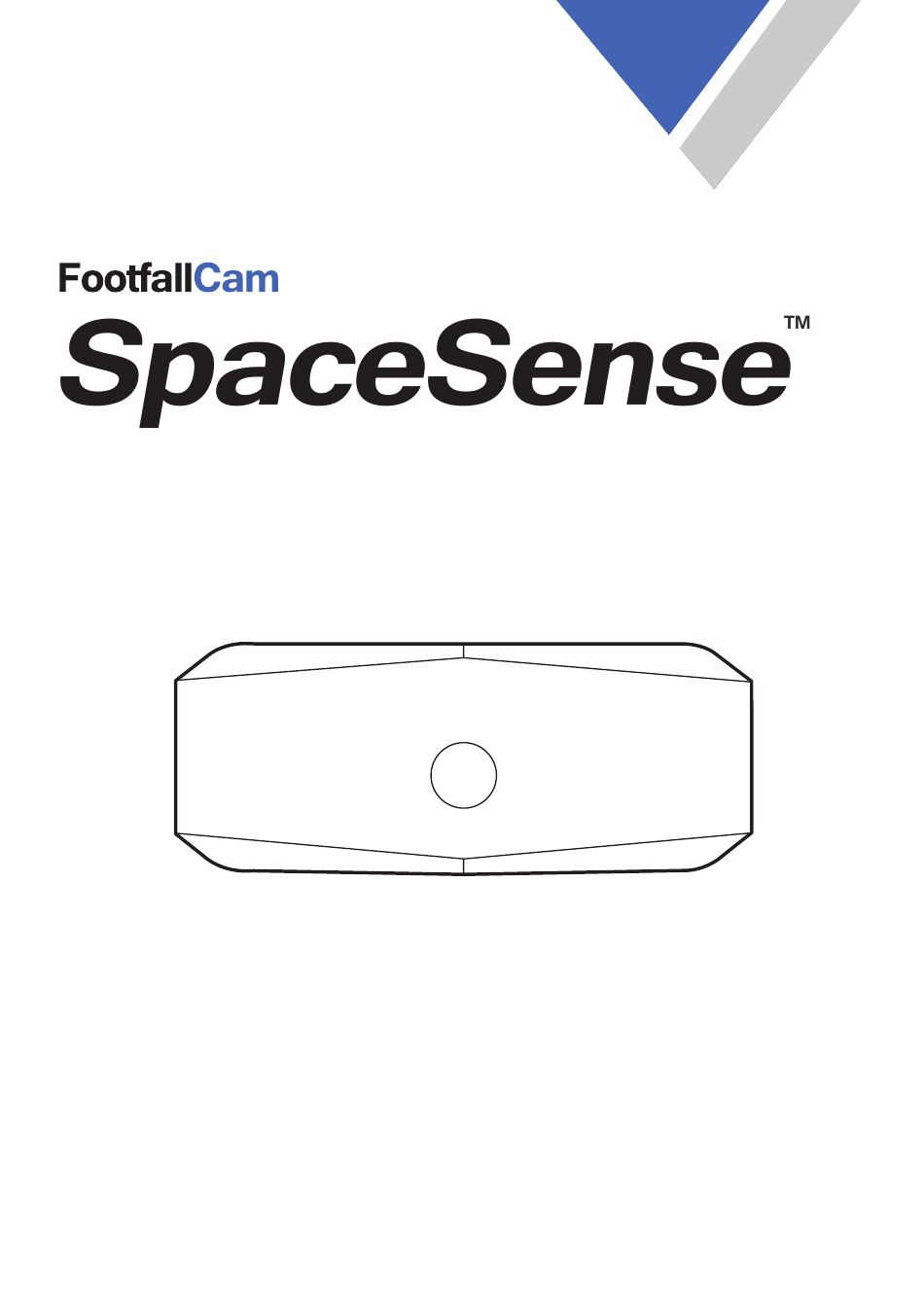

- Page 1 Installation Guide...
- Page 2 What Installer Need to Bring 1) Screw drivers and drill 4) 20-24 SWG / AWG wires (Wired version only) 2) Ladder: depends on the ceiling height 5) Wire crimp tool (Wired version only) 3) Microfibre cloth: cleanup sensor glass 6) 12V DC Adapter (Optional, wired version only) Part 1: Determine Mounting Position IMPORTANT The Space Sense should be installed in the center of coverage area.
- Page 3 (1s interval) turned on. Pairing successful Fast blinking (for 2 seconds) Everything OK Note: For battery version, the led light will be off (no light) after pairing to reduce battery usage. You may monitor the device status in FootfallCam Analytic Manager.
- Page 4 Sensor Nodes Pairing with the IP Address. Please get Sensor Nodes Pairing from FootfallCam support personnel. Network Information Channel : 01 Kindly refer to FootfallCam Space Sense Installation Guide Pan ID : 1234 for more details. Search Unpaired Sensor Paired Sensor Nodes (3) (Update)
