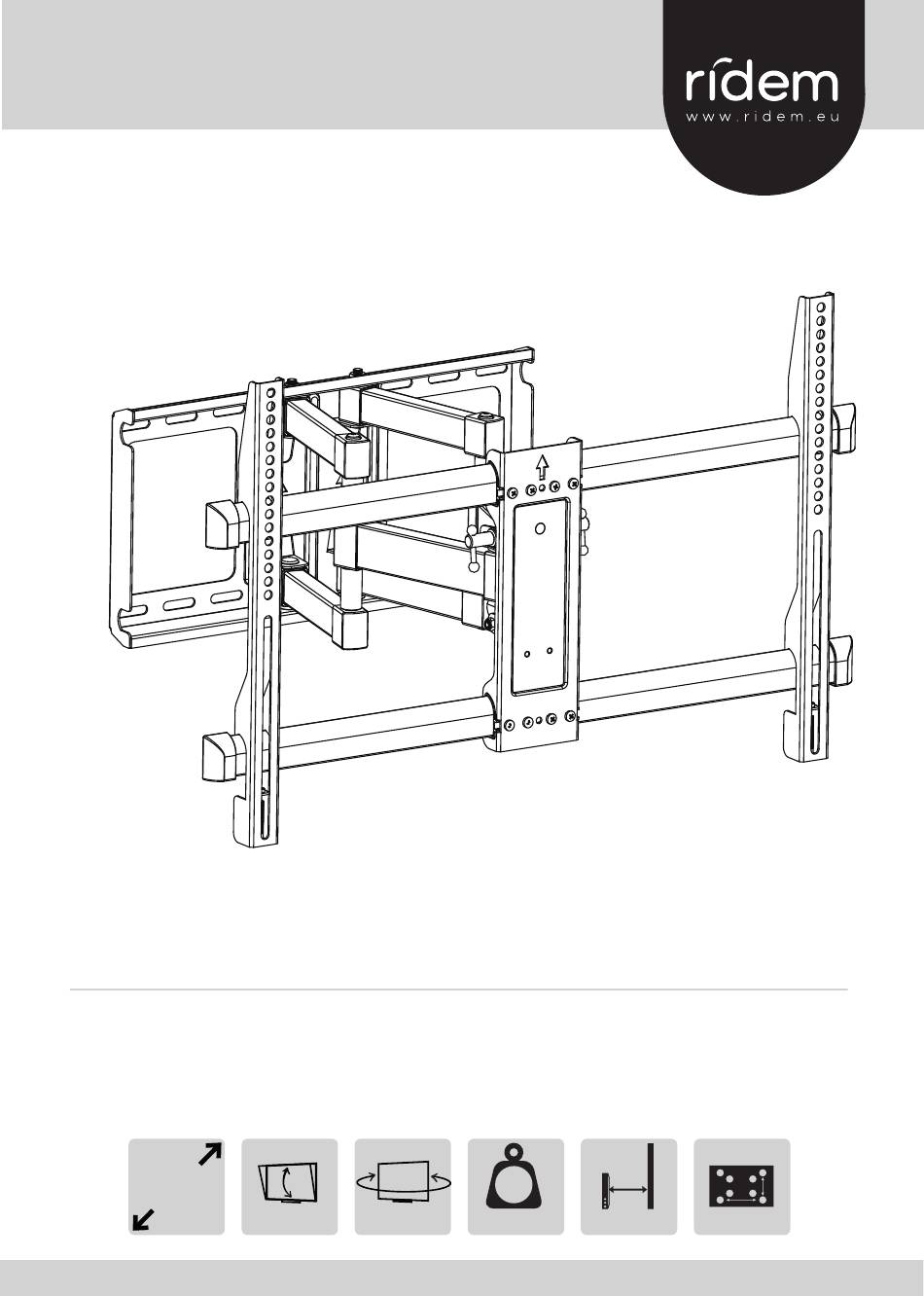

RDM S4
Manuale di Istruzioni - Instruction Manual
SUPPORTO TV
wall mount
32"
VESA
to
70"
MAX
TILT -3° +12°
TURN 180°
6,5/39,5 cm
50 Kg-110 lbs
100/600/200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RDM S4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ridem RDM S4

  • Page 1 RDM S4 Manuale di Istruzioni - Instruction Manual SUPPORTO TV wall mount 32” VESA 70” TILT -3° +12° TURN 180° 6,5/39,5 cm 50 Kg-110 lbs 100/600/200...
  • Page 2 SUPPORTO TV wall mount Utensili necessari/ Reccomended tools Matita Trapano Cacciavite Metro Martello Livella a bolla Chiave inglese Pencil Drill Screwdriver Measuring tape Hammer Bubble level Wrench Contenuto della confezione/ Inside the box Appoggiate al retro della TV le due staffe verticali (04) e fissatele ai fori della TV utilizzando le viti adatte (MA/MB/MC).
  • Page 3 w w w . r i d e m . e u Appoggiate la staffa (01) sulla parete nella posizione desiderata. Con l’aiuto di una bolla di livello assicuratevi che sia perfettamente allineata. Quindi con una matita segnate sul muro i punti esatti dove effettuare i 4 fori.
  • Page 4 SUPPORTO TV wall mount I fori dovranno avere una profondità minima di 50mm per poter accogliere il tassello. The holes must have a minimum depth of 50 mm to place the rawlplug. Servendovi di un martello spingete delicatamente i tasselli (B) all’interno dei fori appena effettuati. Abbiate cura di inserire i tasselli fino a filo del muro.
  • Page 5 w w w . r i d e m . e u 3/8" 10mm 3/8" Come unire i prolungamenti (03) alla staffa (02) 10mm How to join the extensions (03) to the bracket (02) Screw Rimuovete le viti preassemblate dai prolungamenti driver e conservatele per l’uso Remove the pre-assembled screws...
  • Page 6 x Min 2 x Min 2 SUPPORTO TV wall mount The anchor must be nk up to 3/8" / 10 mm The anchor must be nto the plaster coating nk up to 3/8" / 10 mm Appendete lo schermo TV con le staffe sul blocco nto the plaster coating Hang the TV screen with the brackets...
  • Page 7 w w w . r i d e m . e u Per regolare l’inclinazione da entrambi i lati, allentate entrambe le levette e spostate il pannello nella posizione desiderata. Poi stringete entrambe le levette per bloccare la posizione. To adjust the tilt in both sides, loosen both tilt levers end move panel to desired position.
  • Page 8 La linea RIDEM è prodotta e distribuita da:/ RIDEM line is produced and distributed by: KARMA ITALIANA srl - Via Gozzano 38/bis - 21052 Busto Arsizio - www.karmaitaliana.it w w w . r i d e m . e u...
