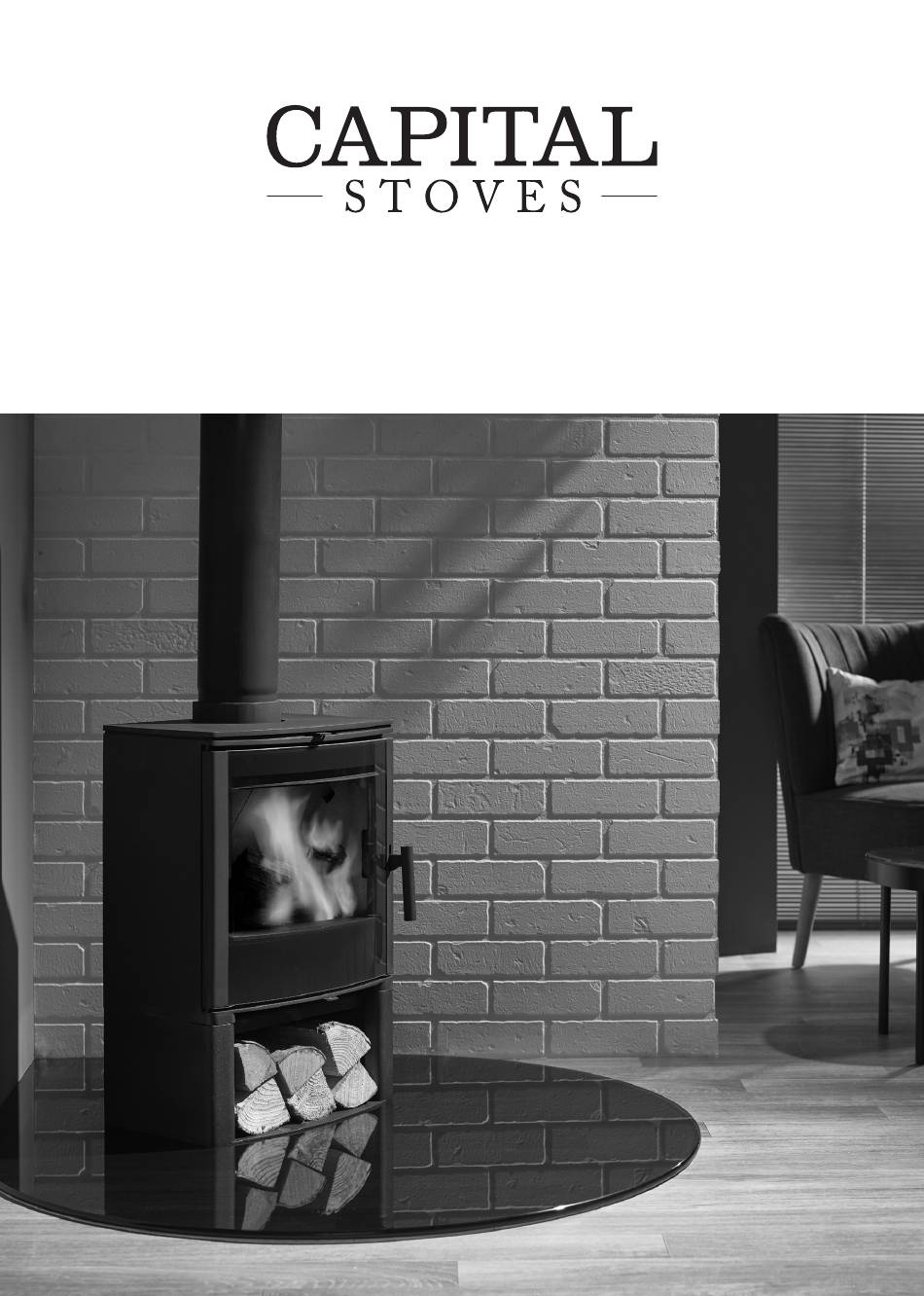

- Page 1 V E R E N A E C O S T O V E I N S T R U C T I O N S PLEASE READ THESE INSTRUCTIONS AND USE ONLY THE RECOMMENDED FUELS...
- Page 2 QUICK START GUIDE PERFORMANCE REDUCING CARBON EMISSIONS IN THE UK STOVE SAFETY HEALTH & SAFETY HANDLING FIRE CEMENT ASBESTOS METAL PARTS WEIGHT FIREGUARD SAFETY CHIMNEY STOVE CLEARANCES FLUE LINER YOUR FIREPLACE AIR SUPPLY EXTRACTOR FANS FITTING LIVING WITH YOUR STOVE 10-12 OPERATING TOOLS LIGHTING...
- Page 3 QUICK START GUIDE To get the most out of your stove you should take the time to read the instructions provided. This guide is intended to help you get the best possible fire started. Even if you have previous experience with stoves, all makes and models vary and the information below will help you gain the optimum performance from your new stove.
- Page 4 PERFORMANCE Verena Eco / Vega Verena Eco Solid Fuel Stove Manual Version 1.4 Issued 18.06.21 This document is to be left with the householder after installation. All our stoves exceed the safety and performance requirements of European Standards. Independently tested by SGS (Notified Laboratory No: 0608) in 2018.
- Page 5 Clean Air Act requirements. The Verena Eco and Vega Verena Eco stoves may be used in smoke control areas strictly in accordance with these instructions and (UK) when fitted with a modified air control to prevent closure of the secondary air control beyond 10% open when burning untreated wood logs.
-
Page 6: Stove Safety
STOVE SAFETY Installers must work accordingly under the Health and Safety at Work Act 1974. This appliance becomes extremely hot and can produce poisonous gases. A fire guard should be used if children or the infirm are present. The installer is required to exactly follow these instructions and to completely comply with all relevant local, national and international standards. - Page 7 Stove clearances to non-combustibles Distance to Non-combustible Materials 125mm Flue Liner Stove Minimum Wall Minimum Wall Height (h) It is recommended to fit with a Distance From Thickness (t) 150mm liner for best performance, Wall (x) however, If only dry wood or 300mm above height of 0-50mm 200mm...
- Page 8 FITTING Before beginning the installation, please refer to the British Standard BS 8303 Code of Practice for installation of domestic heating and cooking appliances burning solid mineral fuel and the current issues of British Standards BS EN 15287-1:2007 design, installation and commissioning of chimneys. CO Alarms: Building regulations require that whenever a new or replacement fixed solid fuel or wood/biomass appliance is installed in a dwelling a carbon monoxide alarm must be fitted in the same room as the appliance.
- Page 9 3) The entire construction is of durable fireproof materials. 4) The flue presents a draught in use of at least 12Pa and not in excess of 25 Pa. Verena Eco Base 1) Lift the Verena stove onto the top of the base and ensure that it is correctly aligned.
- Page 10 LIVING WITH YOUR STOVE Every fuel, chimney and condition of use is different. Only experience will show which are the best settings for you. Operating Tools: Parts become very hot while the stove is running so should not be touched with bare hands.
- Page 11 CO Alarm: Your installer should have fitted a CO alarm in the same room as the appliance. If the alarm sounds unexpectedly, follow the instructions given under “Warning Note” on page 15. Air Supply: It is essential that the fire has adequate air supply for combustion and ventilation. Apertures provided for this purpose shall not be restricted.
- Page 12 THE USE OF UNAUTHORISED FUELS CAN DAMAGE YOUR STOVE AND WILL INVALIDATE YOUR LIFETIME GUARANTEE COMPONENTS PARTS - VERENA ECO STOVE Many spare parts are stocked – please refer to your retailer or supplier if you require any replacement parts. Please only use components made specifically for your stove.
-
Page 13: Spare Parts
SPARE PARTS Please see listed parts on the left hand page ISSUE REVISION NOTES NUMBER INITIAL ISSUE MATERIAL DRAWN WEIGHT DATE 13/11/2019 TITLE CHECKED DEBURR ALL SHARP EDGES DRAWING SIZE A3 DATE LIMITS UNLESS OTHER STATED MILLIMETERS PART NUMBER DRAWING SCALE THIRD ANGLE MK2-ST-POD45F = ±0.8... -
Page 14: Troubleshooting
TROUBLESHOOTING Problems like those listed here are usually due to some difficulty with the installation, chimney or fuels, so please check back through these instructions carefully. If necessary seek specialist advice. Smoke from the chimney: It is quite normal for a little smoke to be emitted from the chimney when the fire is cold, so start the fire using only a very little fuel. - Page 15 Chimney Fire: In the rare event of deposits inside the chimney igniting (roaring sound + dense smoke and sparks from the chimney) immediately close the door, shut all air controls, evacuate the premises and call the fire brigade. Prevent fires by using very dry fuel and having your chimney swept regularly.
- Page 16 For South of England sales please contact: For North of England sales please contact: Capital Fireplaces Ltd Percy Doughty & Co Ltd Unit 12-17 Imperial Point Henlow Trading Estate Express Trading Estate Henlow Camp Stone Hill Road Bedfordshire Farnworth SG16 6DS...
