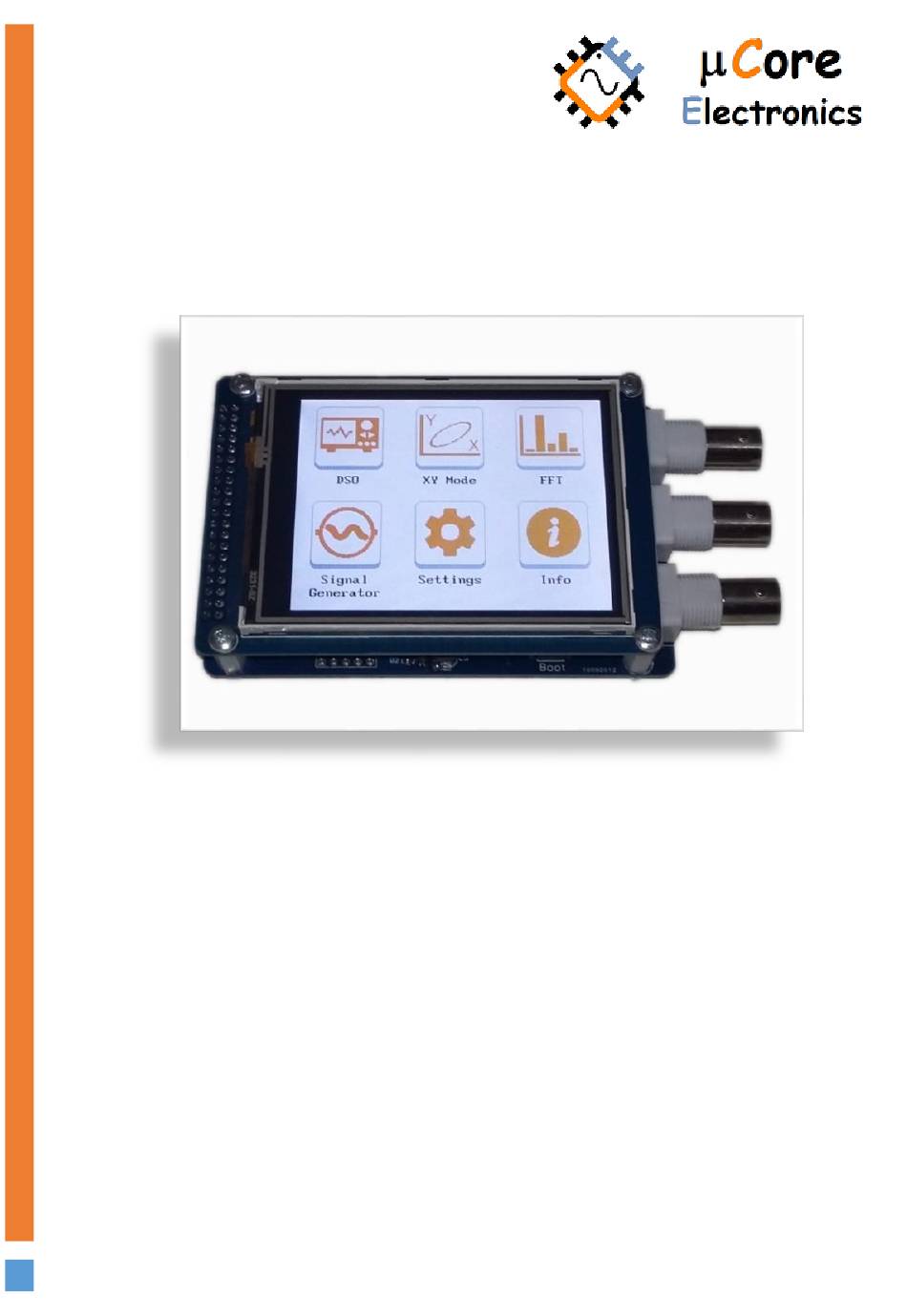

- Page 1 UCE-DSO212 DIGITAL OSCILLOSCOPE HOW TO UPDATE TUTORIAL UCORE ELECTRONICS www.ucore-electronics.com 2017...
- Page 2 Contents Introduction ............................2 Download the firmware ........................2 Connection ............................2 Firmware Update ..........................4 www.ucore-electronics.com...
- Page 3 UCE-DSO212 U Disc to PC. First way, Plug the UCE-DSO212 with USB Cable to PC. And then Click ‘USB Disc’ icon at Settings menu (Figure 1). USB Disc symbol is shown on the screen (Figure 2).
- Page 4 When the device recognizes as U Disc, it is listed in the ‘Devices and drivers’ (Figure 3). Second way, Plug the UCE-DSO212 with USB Cable to PC. And then while pressing and holding ‘BOOT’ button, press and release ‘RESET’ button (Figure 4). Finally, release ‘BOOT button too. When the device recognizes as U Disc, there will be a connection information on the screen (Figure 5) and it is listed in the ‘Devices and drivers’...
- Page 5 4. Firmware Update After recognizing as U Disc, firmware file (dso212.bin) must be copied in UCE-DSO212 U Disc (Figure 6). And then reset the device. To reset the device, you can press ‘RESET’ button (Figure Figure 6. After reset, the update progress will start and there will be some information about process on the screen (Figure 7).
