Summary of Contents for Aussie PRO BIKE

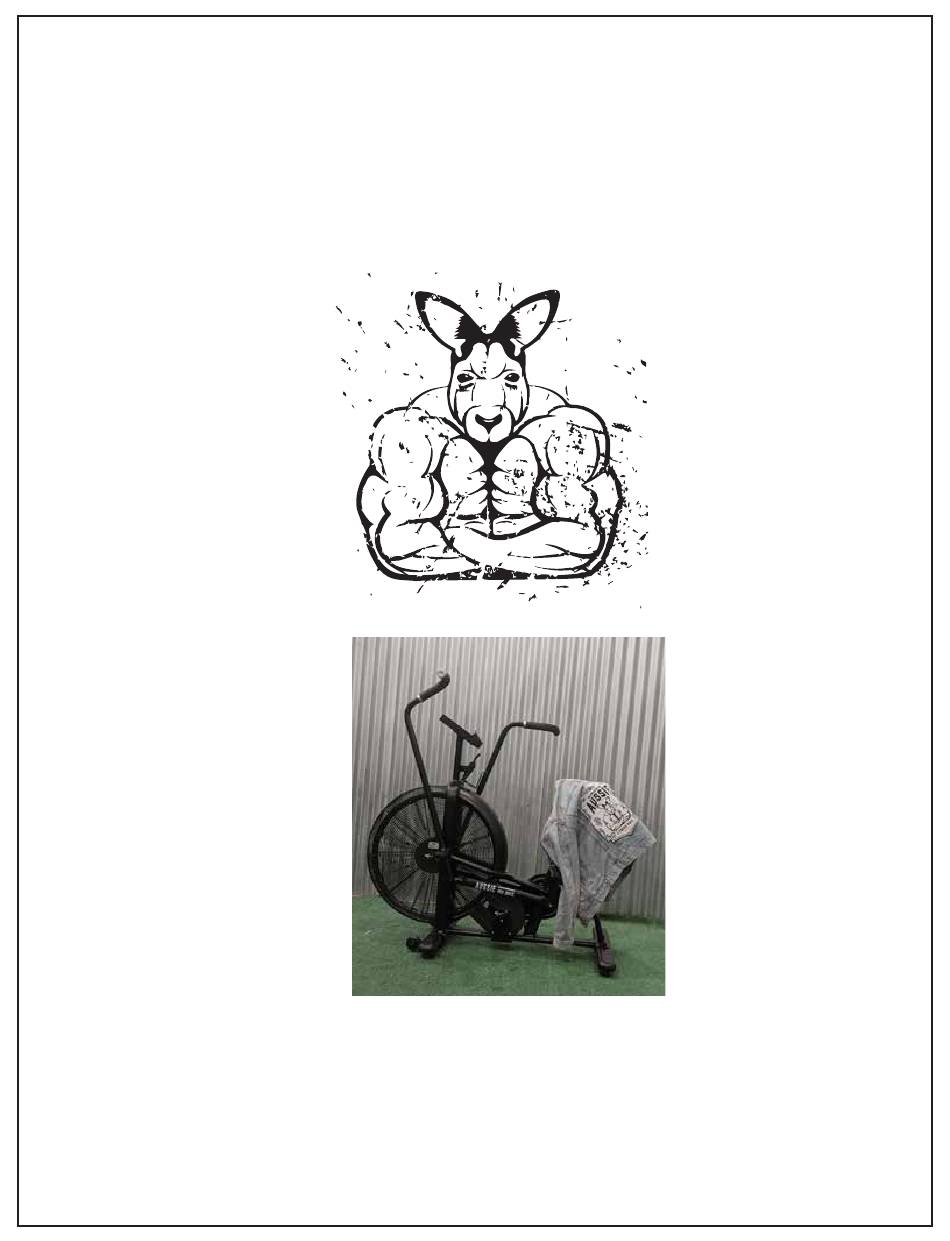

- Page 1 AUSSIE PRO BIKE Owners Manual Read all instructions carefully before using this prouct. Retain his owner’s manual for future reference AUSSIE F I T N E S S P R O S...
-
Page 2: Important Safety Instructions
WARNING - FOR YOUR SAFETY AND BENEFIT Read the entire AUSSIE PRO BIKE Operating Instruction manual before use. To prolong the life of your AUSSIE PRO BIKE it is important that you provide regular mainte- nance. Failing to do so will void your warranty. - Page 3 -Pregnant or breastfeeding -Stop exercising immediately and consult your doctor if you feel dizzy, have heart pain or any other illness. -Drink water when exercising longer than 20 minutes AUSSIE F I T N E S S P R O S...
- Page 4 ASSEMBLY Carefully open all sides of the Box Remove the content making sure not to miss a piece There are two bolts holding the bike to the plywood packagaing. Remove them with the wrench provided...
- Page 5 ASSEMBLY Lay out all the parts...
- Page 6 ASSEMBLY insert the 4 rubber foot pads into the front and rear stabilizer. You will then take the two wheels attach them to the Front stabilizer.
- Page 7 ASSEMBLY take the front stabilizer (with the wheels) and position under the bike frame so that the holes are aligned. Do the same for the rear stabilizer. Bolt the front and rear stabilizer to the frame with the large bolts provided.
- Page 8 ASSEMBLY attach the top console mount. Remover the two bolts. Carefully pull the wire out of the frame and weave through the console mount. Be sure not to pinch the wire. Line the holes up and hand tighten the two bolts before fully tightening.
- Page 9 ASSEMBLY place the seat on the seat post. You will be able to adjust it left right and up and down before fully tightening. Make sure to have the seat level from the front to back.
- Page 10 ASSEMBLY attach the arm bars by carefully screwing the large bolt into the frame. Before fully inserting, connect the lower linkage arm by inserting the bolt through the eye and screwing the nut on. You can now fully tighten the arm bars with the wrench provided.
- Page 11 ASSEMBLY attach the pedals. They are marked Left and Right, the left pedal will attach by rotating in a counter clockwise rotation. Once they are hand tight, be sure to go back and fully tighten with the wrench provided.
- Page 12 ASSEMBLY Your Aussie Pro Bike is complete...
