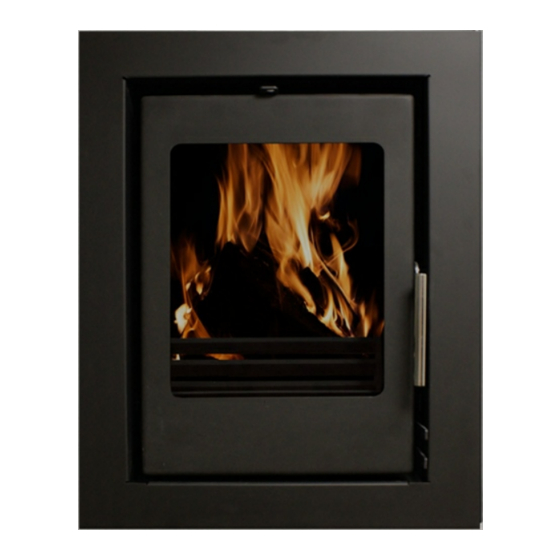

5kW Nominal Output
FW5C
HOLFORD
Installa�on and Opera�ng
Instruc�ons
Please hand these instruc�ons to the stove user when the installa�on is complete. Leave the stove ready for
opera�on and instruct the user in the correct use of the appliance and opera�on of controls.
Important: – This product must be installed by a suitably qualified and competent engineer.
Beltane Stoves
Eurostove Limited
Unit H1, Mendip Industrial Estate,
Mendip Road, Rooksbridge.
Somerset
BS26 2UG
PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY!
For safety reasons it is essen�al that your stove is correctly installed and operated. Eurostoves cannot accept
responsibility for any fault or consequen�al problems arising through incorrect installa�on or opera�on.
1 of 20
Advertisement
Table of Contents
Related Manuals for Beltane Stoves HOLFORD
Summary of Contents for Beltane Stoves HOLFORD
- Page 1 5kW Nominal Output FW5C HOLFORD Installa�on and Opera�ng Instruc�ons Please hand these instruc�ons to the stove user when the installa�on is complete. Leave the stove ready for opera�on and instruct the user in the correct use of the appliance and opera�on of controls.
- Page 2 This manual refers to the stove listed above, which is tested in accordance with EN 13240. Thank you for purchasing your new stove from Beltane Stoves. Please read this manual carefully to ensure that you get maximum enjoyment and performance from your new stove and to prevent any poten�al opera�onal problems.
-
Page 3: Table Of Contents
Sec�on Page No. 1.List of Components 2. Component Iden�fica�on and Assembly 3. Installa�on Instruc�ons 3.1 Warnings and important safety informa�on 4 Installa�on Informa�on 6 - 9 4.1 Chimney 4.2 Ven�la�on 4.3 Flue Draught 4.4 Connec�on to Chimney 6 - 7 4.5 Fixings 4.6 Material Clearances 4.7 Hearths... -
Page 4: List Of Components
Component Iden�fica�on and Assembly Your Holford Casse�e Stove is shipped securely packed and strapped. Carefully remove any straps and remove all wood, cardboard and any plas�c packaging, open the door and remove all the contents. See List of Components sec�on and check contents carefully. -
Page 5: Installa�On Instruc�Ons
Installa�on Instruc�ons 3.1 Warnings and important safety informa�on READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION It is very important to understand the requirements of the Na�onal Building Regula�ons (England and Wales – Document J / Scotland - Part F/Document J (Republic of Ireland only) and standards BS 8303, BS 6461, BS 7566, along with any local regula�ons and working prac�ces that may apply. -
Page 6: Installa�On Informa�On
3.1.5 Fuels Only use recommended fuels. The appliance can be damaged by burning Petroleum Co, liquid fuels or general rubbish and this will invalidate your warranty and risk personal safety. The appliance MUSTNOT be used as an incinerator. 4.0 Installa�on Informa�on 4.1 Chimney The chimney height and the posi�on of the chimney terminal should conform to Building Regula�ons. -
Page 7: Fixings
If necessary a hole must be opened up into the flue way above the fireplace in order to fit the appliance to the flue correctly. Please consult HETAS recommended fi�ng methods if in doubt. It is essen�al that all connec�ons between the stove and chimney-flue are sealed and made air�ght with sealing rope, clamping rings and/or fire cement or heat resis�ng cement where required. - Page 8 Ideal Installa�on 225mm non-combus�ble hearth 8 of 20...
-
Page 9: Commissioning & Handover
Installing the Stove Please note that the each installa�on is unique to the par�cular household and it is not possible to give recommenda�ons in this manual to cover every situa�on. The installa�on must comply with Building Regula�ons and be completed using “Best Prac�ce” methods. Note that most fireplaces have a suppor�ng Lintel. - Page 10 FW5C Casse�e Stove Dimensions 500 mm 3 sided frame 595 mm 4 sided 555 mm frame 645 mm 400 mm 335 mm 500 mm 10 of 20...
-
Page 11: Opera�Ng Instruc�Ons
Opera�ng Instruc�ons This stove should not be operated with the doors open. Only when refuelling and where indicated in these instruc�ons should the door be opened. When used correctly this stove will burn very efficiently, cleanly and with clean glass. However, for this product to work properly it must be used in accordance to these instruc�ons, burning wood fuel of 20% moisture or less. -
Page 12: Cleaning
Ashpan It is essen�al that you empty the ash pan every day. Use the thick end of tool to hook onto and li� the ash pan out of the stove. Replace the empty ashpan in the stove making sure to push it fully into place so that all the ash falls into it. -
Page 13: Ligh�Ng The Stove
6.5 Ligh�ng the Stove We recommend that you have two or three small fires before you operate your stove to its maximum heat output. This is to allow the paint to cure in steadily and to give a long service life of the paint finish. During this curing in process you may no�ce an unpleasant smell whilst the finishes finally cure. - Page 14 BURNING WOOD IN A SMOKE CONTROL AREA You must purchase a smoke control version of the Mendip stove which is modified slightly to comply with regula�ons. Any change to this modifica�on will invalidate the stoves compliance for smoke control areas. The Clean Air Act 1993 and Smoke Control Areas Under the Clean Air Act local authori�es may declare the whole or part of the district of the authority to be a smoke control area.
-
Page 15: Shu�Ng Down
Shu�ng Down The stove will normally shut down by itself as the fuel is consumed. In order to shut down the stove for other reasons, close the secondary air control. If the control is le� in this posi�on, the fire will eventually burn out. If you want to revive the fire open the secondary air controls fully. -
Page 16: Frequently Asked Ques�Ons And Trouble Shoo�Ng
IN THE EVENT OF A CHIMNEY FIRE Raise the alarm to let others in the house know. � Call the Fire Brigade � Reduce the appliance-burning rate by closing all air controls. � Move furniture and rugs away from the fireplace and remove any nearby ornaments. �... - Page 17 10 What is Over Firing? Your stove should never be used in a manner to cause over firing. Over firing can be caused by over loading the stove with fuel, and opera�ng with primary controls le� open once the fire has established.
- Page 18 The return on the frame pushes into the tension clips on the body of the stove. Tension clip on side of the body Push the frame onto the body un�l it is flush fit. 18 of 20...
- Page 19 Name: ………………………………………………………………………….. Address: ………………………………………………………………………… …………………………………………………………………………………… Telephone Number: ……………………………………………………………... Complete upon stove installa�on Date of Installa�on: …………………………………………………… Model Number: (Holford Landscape 5Kw …………………... Serial Number: ………………………………………………………… Fi�ng Engineer Name: ………………………………………………………………….. Address: ………………………………………………………………... Telephone Number: ……………………………………………………. Commissioning Checklist – Installer to complete and sign-off Stove correctly flued according to building regula�ons...
- Page 20 Beltane Stoves Eurostove Ltd. Unit H1, Mendip Industrial Estate Mendip Road Rooksbridge Somerset BS26 2UG Tel: 01934 750 500 www. eurostove.co.uk E-mail : info@eurostove.co.uk Holford Manual: 13.10.2021 ver1.2 20 of 20...
