Signal Driver
MANUAL
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Signal Driver and is the answer not in the manual?

Questions and answers

Related Manuals for Demonic Machines Signal Driver

Summary of Contents for Demonic Machines Signal Driver

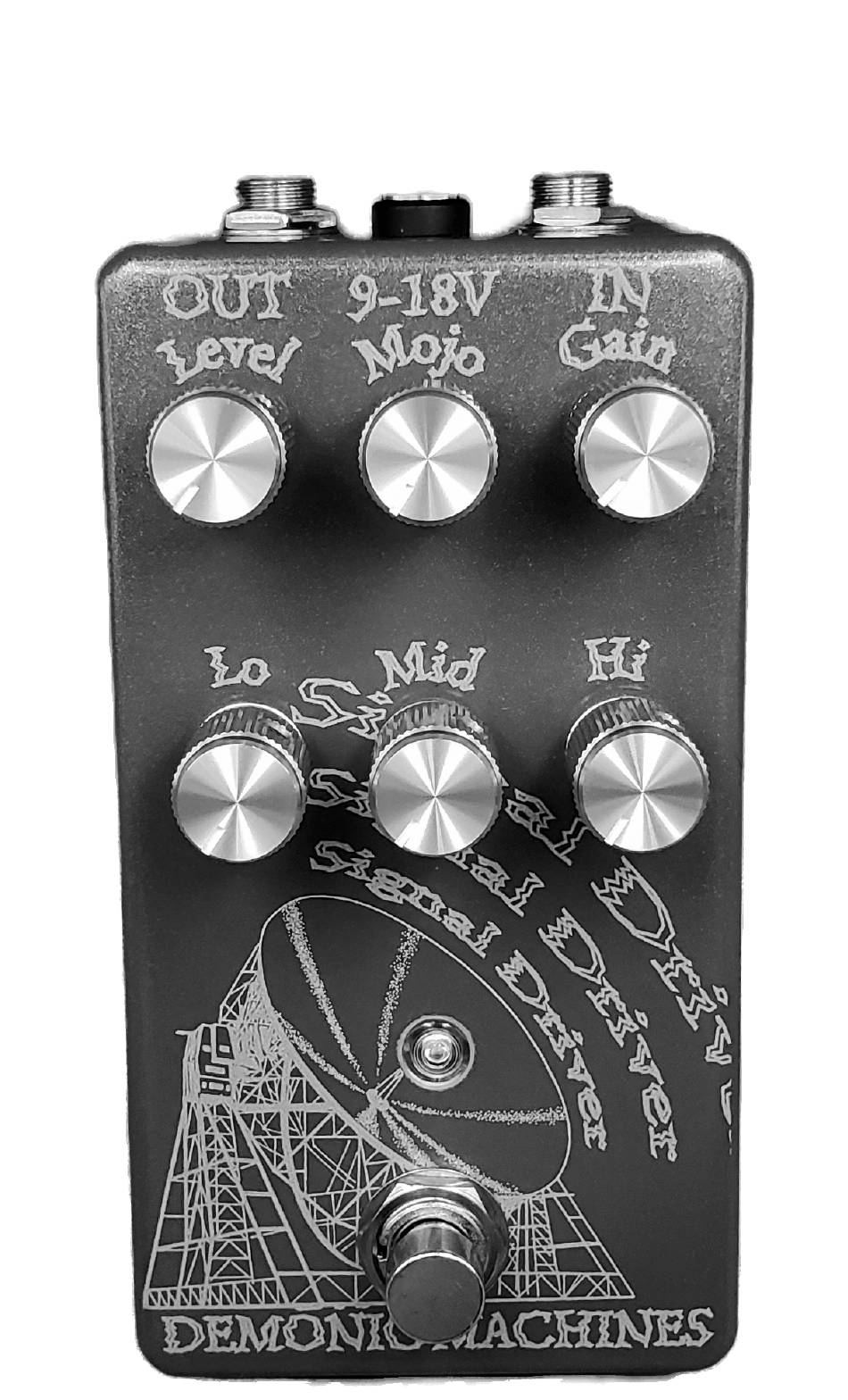

  • Page 1 Signal Driver MANUAL MANUAL...
  • Page 2 The SIGNAL DRIVER is a unique soft-clipping overdrive circuit. It features internal DIP switches that give you over 4,000 options for clip- ping flavors and an active 3-band EQ that can provide up to 10dB of boost or cut. CONTROLS •...
  • Page 3 Additionally, the signal driver has two banks of internal DIP switches that you can use to select the clipping diodes. The switches are as follows: 1. 1N4148 silicon diode 2. 1N4148 silicon diode 3. 2N7002 MOSFET 4. Red LED 5. 1N3666 germanium diode 6.
  • Page 4 SUPER DISTORTION GERMANIUM+MOSFET LED DISTORTION NO CLIPPING N.Y.C.B.M.P.
  • Page 5 MY SETTINGS...
  • Page 7 SWITCHING This pedal features DPDT true relay bypass switching. POWER REQUIREMENTS This machine takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power sup- plies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power.
  • Page 8 CHECK US OUT ONLINE! https://demonicmachines.com/ Tone is in the signal.
