Summary of Contents for MAGNITUDE LIGHTING CFLEX

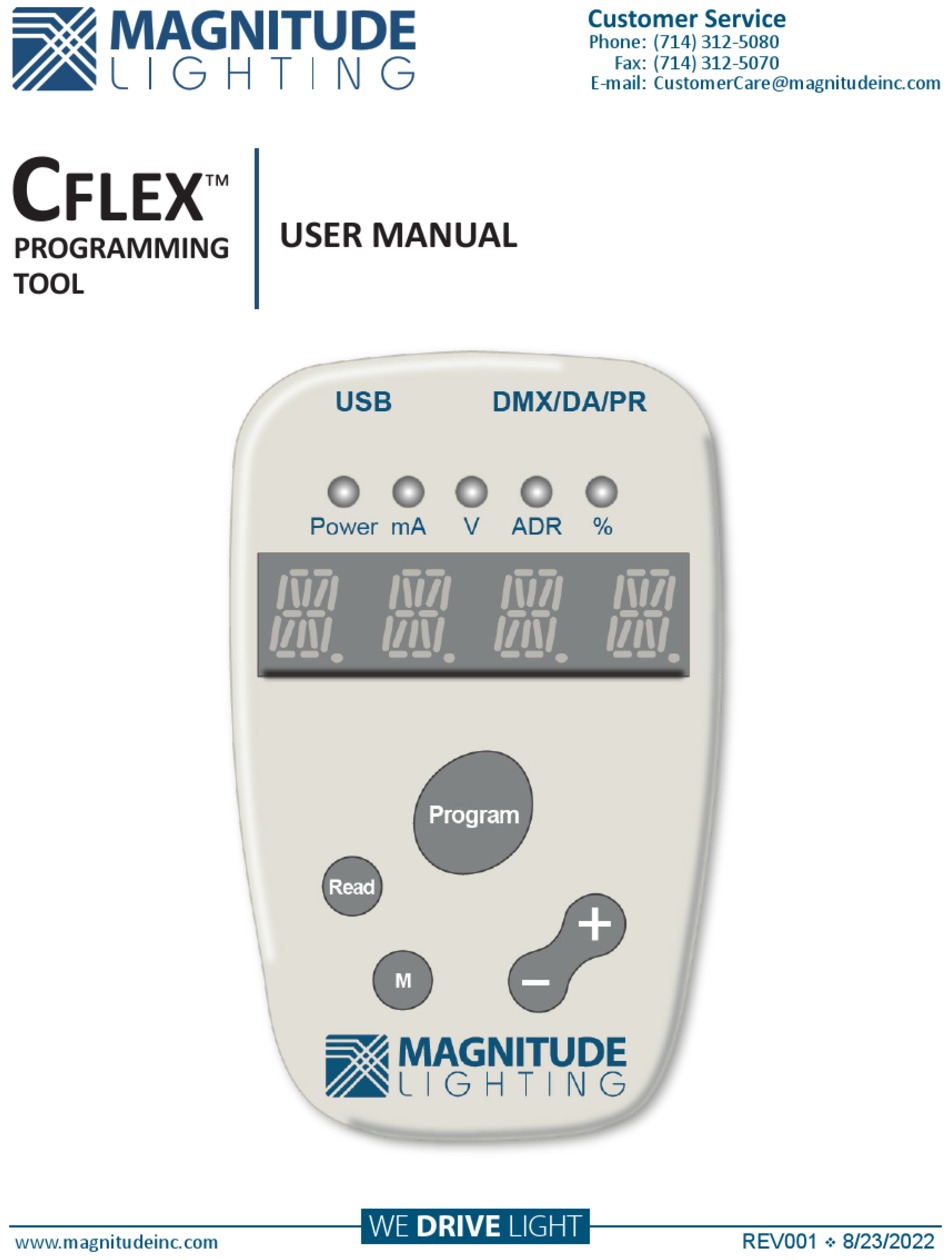

- Page 1 Customer Service Phone: (714) 312-5080 Fax: (714) 312-5070 E-mail: CustomerCare@magnitudeinc.com FLEX USER MANUAL PROGRAMMING TOOL WE DRIVE LIGHT www.magnitudeinc.com REV001 8/23/2022...
- Page 2 End users, electrical distributors, contractors, and OEMs can tune The toolset is an easy-to-use smart the settings of Magnitude Lighting system that consists of a standalone CFLEX™ LED drivers for their dedicated Programming Tool as well as optional applications with these powerful tools.
- Page 3 FLEX USER MANUAL PROGRAMMING TOOL Standalone Operation Programming Tool & Hardware Kit The hardware kit consists of a Programming Tool and other accessories: 1. Programming Tool 2. USB 2.0 Cable A-type to Mini B type (USB) 3. Programming Wire (PR) 4.
- Page 4 “ISET”/ “VSET” display indication. Note: “ISET” is the only setting available for the Magnitude CFLEX. “VSET” setting is reserved for future use as are the “ADR” and “%” settings. Press the “+” or “-” button to adjust the shown decimal value to setting. Hold the button down and it will scroll faster.
- Page 5 FLEX USER MANUAL PROGRAMMING TOOL Standalone Operation - How to Use the Programming Tool Reading Parameters Press the “Read” button to read out current/voltage value in the driver and display. When reading the LED driver has failed, the screen digits will show “E-02” or “E-03” error code.
- Page 6 PROGRAMMING TOOL Optional PC Programming The Magnitude CFLEX programming tool is a stand-alone device that does not require a PC or cellphone interface. However, a PC can also be used to program with the following software: Windows XP SP2 and above (32 & 64 bit) Windows Vista/Windows 7 (32 &...
