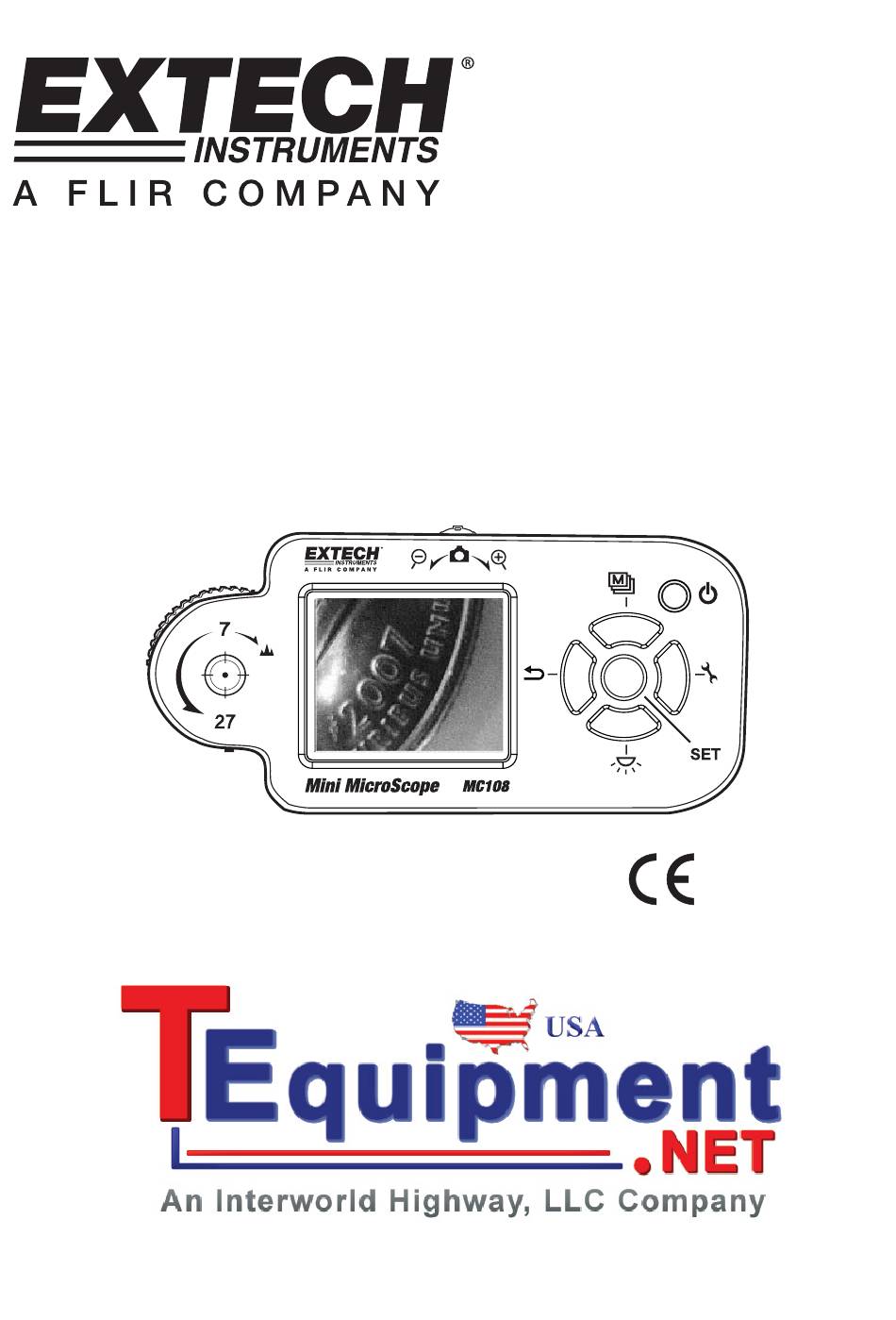

- Page 1 User's Guide Mini Microscope Model MC108...
- Page 2 Introduction Congratulations on your purchase of this Extech Meter. This digital microscope with 7 to 27X optical magnification, 4X digital zoom, image capture and real time mode via the PC USB interface, is ideal for quality control, engineering and hobbyist applications. Features include rechargeable batteries, split screen comparison mode, light level adjustment, four image processing modes and digital camera operation.
-
Page 3: Operation
Operation Power Supply • The unit includes three Ni-MH rechargeable batteries. • The unit can run from the batteries or from USB power when the USB cable is connected to a PC or to the power adaptor. • The Ni-MH batteries will recharge automatically when the microscope is connected, with the USB cable, to a PC or to the USB power adapter. - Page 4 Optical Zoom/Focus: The microscope has an optical zoom function at 2 points ( 7x & 27x ). The Optical Zoom/Focus can be used to adjust both the zoom rate and the focus. When the indicator is moved to a lower magnification than 7x, the unit will operate just like a digital camera.
- Page 5 Accessories Power-adapter: Plugs into wall socket and into USB cable. Will accept 100V ~ 240V AC and output 5V DC. Mini-USB cable: Used for data communications and battery charging. Settings Press the settings button to open the settings menu. Press the up or down buttons (arrows) to move the cursor to the desired selection.
- Page 6 Preview: In normal observation mode, press the Preview button to recall a saved image. The saved image will be shown on the screen. The up/down and tool buttons can be used to change pages and erase the image. Press the Preview button again to exit this mode. Dual Window Compare: While in Preview mode, press the SET button to enter the Compare mode.
- Page 7 Microscope-to-PC Connection The microscope application program comes with the microscope installation disk (CD), to allow you delivery of images to your PC via USB port, or from your PC to the microscope. This application program is compatible with Windows 2K, XP, and Vista. Installation procedure: Do not connect the microscope to PC.
- Page 8 Click icon to permanently erase the image files inside the Flash-Memory. Figure 2. The right lower portions of the screen both have the same function in the VT101 Click the icon for real-time imaging.The observed image is shown as figure 3. You may click the “Show Magnification”...
-
Page 9: Specifications
Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle Copyright © 2012 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form.
