Summary of Contents for Orisec WIFI-2

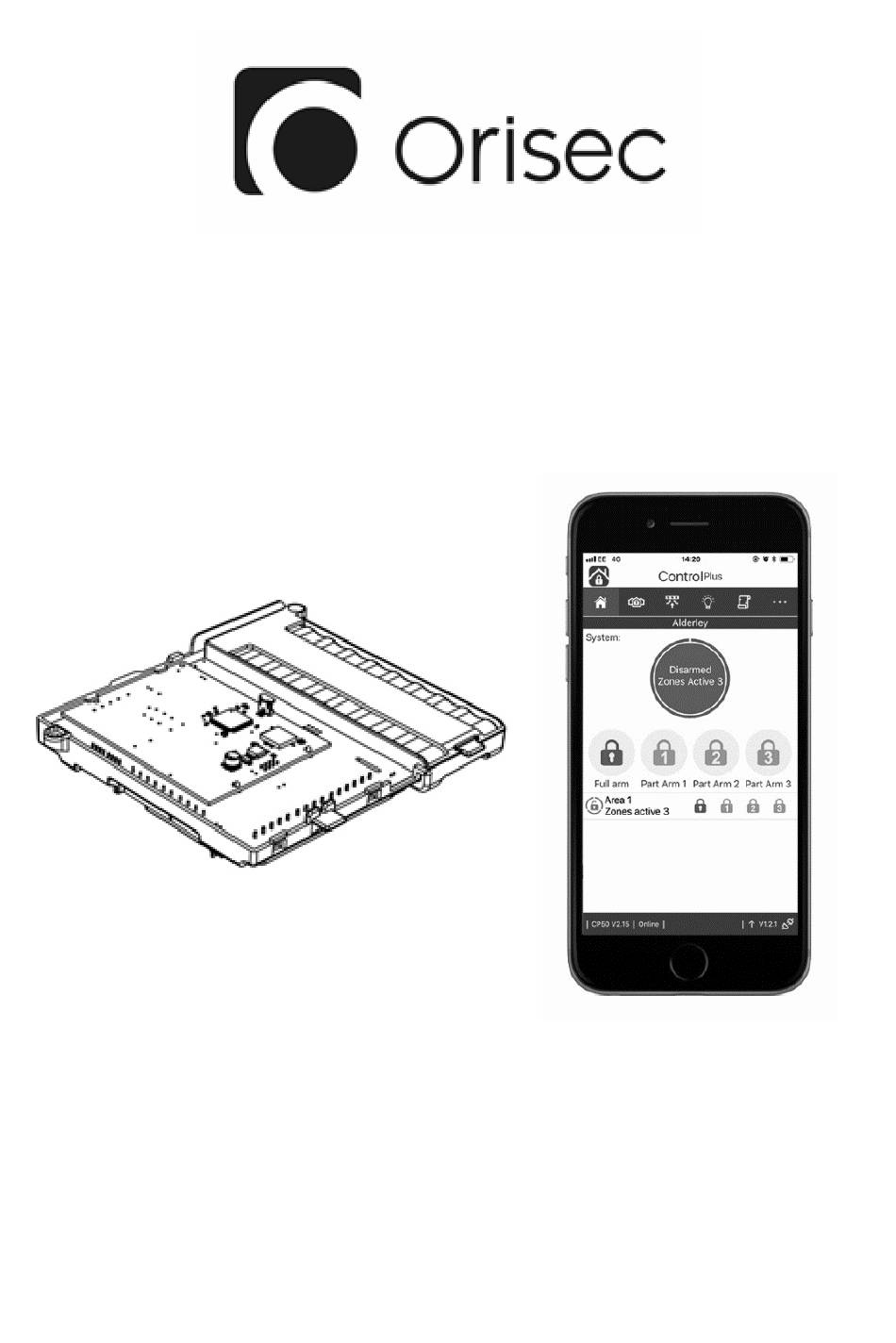

- Page 1 WIFI-2 Module & ControlPlus App Installation and Programming Guide Designed and Manufactured in the United Kingdom www.orisec.co.uk...
-
Page 2: Table Of Contents
Contents Introduction ........................... 3 Installation ..........................3 Programming the WIFI-2 Module ..................5 Wi-Fi status for the WIFI-2 Module ................. 6 ControlPlus setup for iOS & Android ................7 Specifications ......................... 8 Standards ..........................9 EMC ..............................9 Warranty ............................9... -
Page 3: Introduction
The WIFI-2 Module is fully compatible with the W-CP-40K, W-CP-40T and W-CP-40E control panels. The control panels must be version 1.05 onwards. The WIFI-2 Module provides local and remote connections for the Orisec UDL, Apps and Web Browser Sessions via the internet. 2. Installation Connect the WIFI-2 module to the reverse of the W-CP-40 control panel as shown below. - Page 4 Connect the Wi-Fi antenna. Peel off the self-adhesive backing and stick the PCB antenna to the bottom left-hand side of the enclosure as shown below. Carefully connect the antenna cable to the WIFI-2 Module antenna socket.
-
Page 5: Programming The Wifi-2 Module
The additional settings (below) are only required if DHCP is not being used. Address = Local IP address for the network (i.e. 192.168.1.75) Port = Port number for the Orisec WIFI-2 Module (i.e. 10006) Mask = Subnet mask for the internal network (i.e. 255.255.255.0) -
Page 6: Wi-Fi Status For The Wifi-2 Module
‘Ready’. Ready The WIFI-2 Module is Ready for use with the Orisec UDL, Orisec Apps and Orisec web Browser. In Fault The WIFI-2 Module is in fault, check to ensure all settings are correct and the aerial is not damaged. -
Page 7: Controlplus Setup For Ios & Android
Site – Unique identifier for the site i.e. My House User Code – Enter a valid user code for the control panel. Use Cloud – Enable this option to create a connection via the Orisec Cloud. *Authorisation – An authorisation code can be assigned as an extra level of security. -
Page 8: Specifications
6. Specifications Electrical Operating Voltage: 10 – 15Vdc Current Consumption: Receive Mode: 110mA, Transmit Mode: 290mA Environmental Operating Temperature: -10°C to +55°C Storage Temperature: -20°C to +60°C Max. Humidity: 95% non-condensing EMC: Residential, Commercial, Light Industrial & Industrial Physical Dimensions: HxWxD: 76mm x 100mm x 17.5mm Packed Weight: 140g... -
Page 9: Standards
2 years from the date of purchase. Disclaimer: Orisec will not accept any liability based on a claim that the WIFI-2 Module failed to perform correctly as it is a component part of an installation and not a complete intruder... - Page 10 Notes...
- Page 11 Notes...
- Page 12 UK Based Technical Support t: +44 (0) 1706 398740 e: support@orisec.co.uk © Orisec Ltd 2018 INS094...
