Oneinmil IF-1330TCL Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

□ IF-1330TCL □ IF-1340TCL
CONSUMER SAFETY INFORMATION
 Read this manual before installing and operating this appliance
 Failure to follow these instructions may result in electric shock, fire property,
or personal injury
 Do not store or use gasoline or other flammable liquids in vicinity of this
appliance.

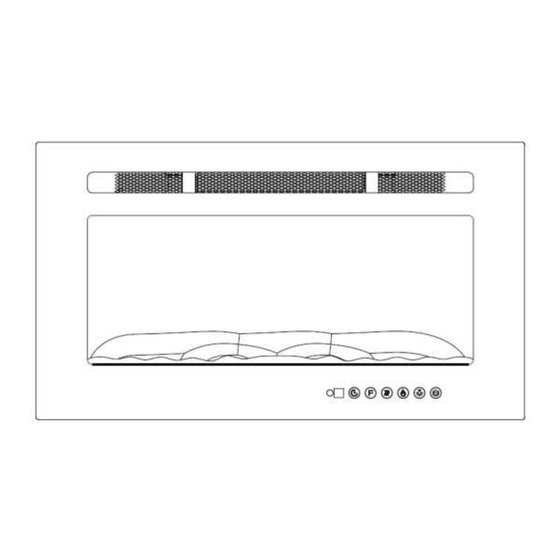

Electric Fireplace
Model No.:
□ IF-1350TCL
1

Advertisement

Table of Contents
loading

Summary of Contents for Oneinmil IF-1330TCL

  • Page 1 Electric Fireplace Model No.: □ IF-1330TCL □ IF-1340TCL □ IF-1350TCL CONSUMER SAFETY INFORMATION  Read this manual before installing and operating this appliance  Failure to follow these instructions may result in electric shock, fire property, or personal injury  Do not store or use gasoline or other flammable liquids in vicinity of this...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION! WARNING  Read all instructions before using this heater!  This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater, and keep them away from the sides and rear.
  • Page 3  NEVER use a wall mount bracket from another manufacturer.  This product is not intended to be a primary heat source. It is for supplemental heat only.  INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock! ...

  • Page 4: Parts & Hardware

    C. Drywall anchors D. Remote control E. Wall Bracket F. Log set Fixed on back of firebox A. Fireplace G. Decorative Crystals Specification and Dimension PRODUCT DIMENSIONS Model Number IF-1330TCL 30” 17.0” 4.13” 26.2” 16.2” 9.1” 23.7” 76.2cm 43.2cm 10.5cm 66.5cm...

  • Page 5: Installation And Assembly

    Installation and Assembly Your appliance is a wall-mounted, recessed, and /or mantel-installed appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture, and high-traffic areas. Follow all National and local electrical codes. NOTE: MINIMUM CLEARANCE TO COMBUSTIBLES Measurements are taken from the glass front.
  • Page 6 RECESSED TO WALL INSTALLATION STEP 1. Selection of a dry wall to open a hole for the fireplace box. Size of the hole as below chat. Figure (A) Figure (A) Hole cut size of IF-1330TCL Figure (A) Hole cut size of IF-1340TCL...
  • Page 7 Framing Hole Size Model Number 26.77”(68.1cm) 16.54”(42.0cm) IF-1330TCL 36.77”(93.5cm) 16.54”(42.0cm) IF-1340TCL 46.77”(118.9cm) 16.54”(42.0cm) IF-1350TCL STEP 2. Fix the four wall anchors on each side of the fireplace box according to the dimensions. Shown on the drawing. Figure (B) Figure (B) Hole cut size of...
  • Page 8 Figure (B) Hole cut size of IF-1340TCL Figure (B) Hole cut size of IF-1350TCL...
  • Page 9 STEP 3. Take off the two screws in both sides of fireplace. Figure (C) STEP 4. Have two-person take the glass panel out of the fireplace box. Place it in a soft and clean place. Figure (D), take two pieces of foam out of the fireplace. Figure (E) STEP 5.
  • Page 10 Wall Mounted Installation Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. A. Select a location that is not prone to moisture and is located at least 36”(914mm) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc.
  • Page 11 NOTE: It is Strongly Recommended that the mounting bracket(d) be screwed into the wall studs where possible. If the wall studs cannot be used, ensure that the supplied plastic anchors are used to affix the bracket to the wall and the bracket are adequately secured. With the wall mounting bracket installed have two people lift the appliance up and insert the two hooks on the bracket into the two slots on the back of the appliance.
  • Page 12 Log set /Crystal Ember Installation (Note: Please make the installation according to the embers which you bought or selected.) A. The glass front must be removed and the appliance must be mounted in its final location before the log set/crystal embers are installed. B.
  • Page 13 WARNING Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure do to so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into a 110-120V Volt 12 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).
  • Page 14 Touch panel/Remote control Operation BUTTON FUNCTION ACTION&INDICATION ON: Enables control panel functions and remote control. 1. Press once. The indicator light turns on. Power Turn on flame effect. turns on. All functions enabled. OFF: Disabled control panel functions and remote control. 2.

  • Page 15: Care And Maintenance

    NEVER dispose of batteries in the fire. Failure to observe this precaution may result in an explosion. Dispose of batteries at your local hazardous material processing center. CARE AND MAINTENANCE Cleaning ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace.

  • Page 16: Troubleshooting

    Troubleshooting WARNING DISCONNECTED THE APPLIANCE COMPLETELY AND LET IT COOL PRIOR TO ANY SERVICE. ONLY A QUALIFIED SERVICE PERSONNEL SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. Problem Possible Cause Solution 1. Fireplace turns off 1. Fireplace has overheated 1. Reset switch by turning main and will not turn on.

This manual is also suitable for:

If-1340tclIf-1350tcl
