NuTone Knock DCAM100RB Installation Instructions

Flush Mount
Installation
DCAM100FM
Instructions

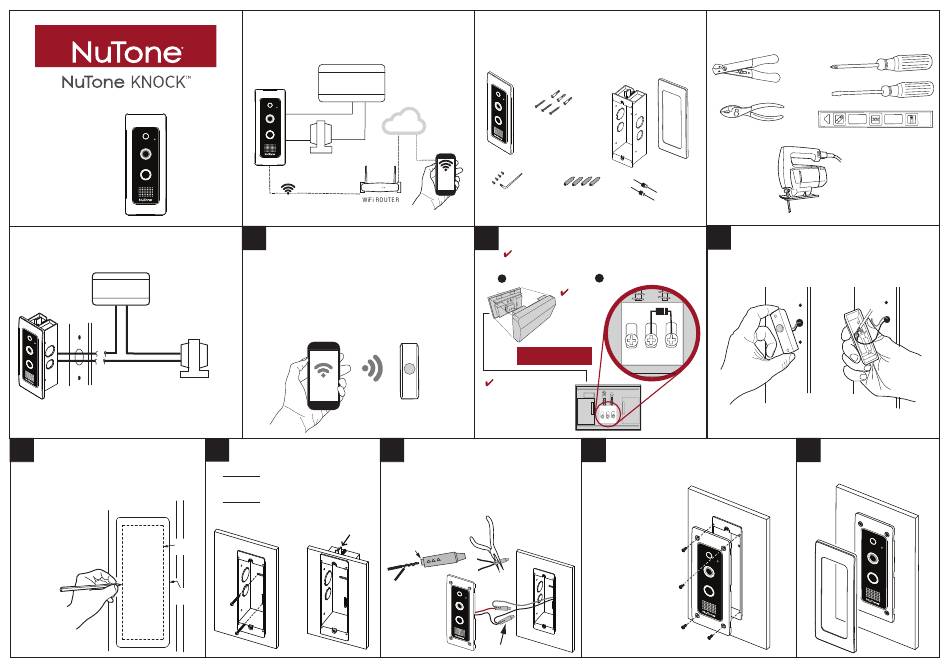

System Overview
CHIME BOX
DOORBELL TRANSFORMER
4

Cut Out for Rough-in Box

• Use template (provided) to trace the
rough-in cutout area in desired location.
• Use a level to align the
template.
• Use a saw to cut
out traced area
TRACE
accurately.
AND CUT
TRIM RING
LOCATION

System Description

CHIME BOX
SMART
DOORBELL
CAMERA
DOORBELL
TRANSFORMER
WiFi COMMUNICATIONS
1

Prepare for Installation

VERIFY WiFi STRENGTH
• Go to existing doorbell location.
• Use a Smartphone connected to the installations WiFi
router to confirm adequate signal strength (2 - 3 bars).
SMARTPHONE DOORBELL
5 6

Install Rough-in Box

• Method 1: Ensure that screws will have
• Run wires into rough in box for
proper supporting material in the wall.
• Connect doorbell wires using weather-resistant
• Method 2: Wall board must be 1-inch or
less in thinkness to use tabs. Do not
overtighten, as tabs can break.
1. TWIST THEN
FEED WIRES INTO
SHORT END OF
CONNECTOR
- OR -

Doorbell Camera Components

SMART
DOORBELL
CAMERA
ANCHORS
(3)
CLOUD
PHILLIPS SCREWS
(3)
SMARTPHONE
TORX SCREW (4)
CONNECTORS (4)
TORX
WRENCH
2

Installing Diode in Chime Box

NOTE: It is recommended to TURN POWER OFF
before performing any wiring.
1 OPEN CHIME BOX
NOTE: Not
compatible
with
electronic
EXISTING
chimes
IMPORTANT STEP
NOTE: When (2)
DCAM100FM's are used,
connect a second diode
between REAR and
TRANS terminals.

Wiring Doorbell Camera

electrical connections.
wire connectors (included).
2
CRIMP WIRES WITH
.
PLIERS ON SHORT END
OF CONNECTOR
CONNECTORS IN PLACE
CAMERA
ROUGH-IN
TRIM
MOUNTING
RING
BOX
WIRE STRIPPERS / CUTTER
PLIERS
WIRE
DIODES FOR
CHIME BOX (2)
JIGSAW
3
• Remove existing doorbell pushbutton from location.
• Disconnect wires from back of pushbutton.
2 INSTALL DIODE AS SHOWN
REAR TRANS FRONT
CHIME BOX
FRONT VIEW
REAR TRANS FRONT
WITHOUT COVER
7

Camera Installation / Security Screw

• Use 4 security screws
(provided) with tool
(provided) to secure
camera to rough
in box.

Tools For Installation

PHILLIPS SCREWDRIVER
FLAT SCREWDRIVER
LEVEL

Existing Doorbell Removal

DISCONNECT WIRES
FROM PUSHBUTTON
DOORBELL
8

Complete Installation

• Press the trim ring into place.
