Summary of Contents for Light O Rama Easy Light Linker RF-V4

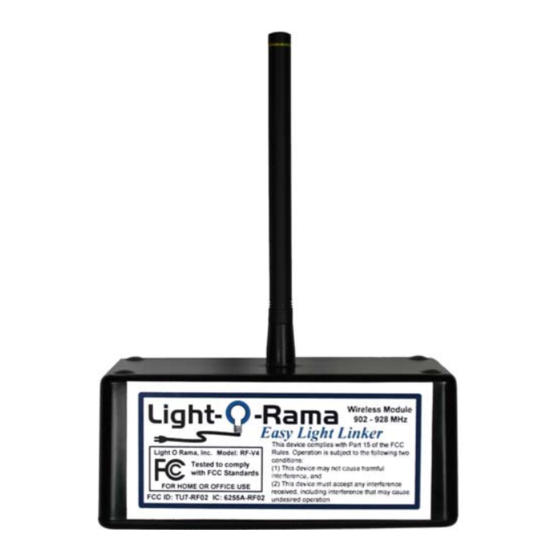

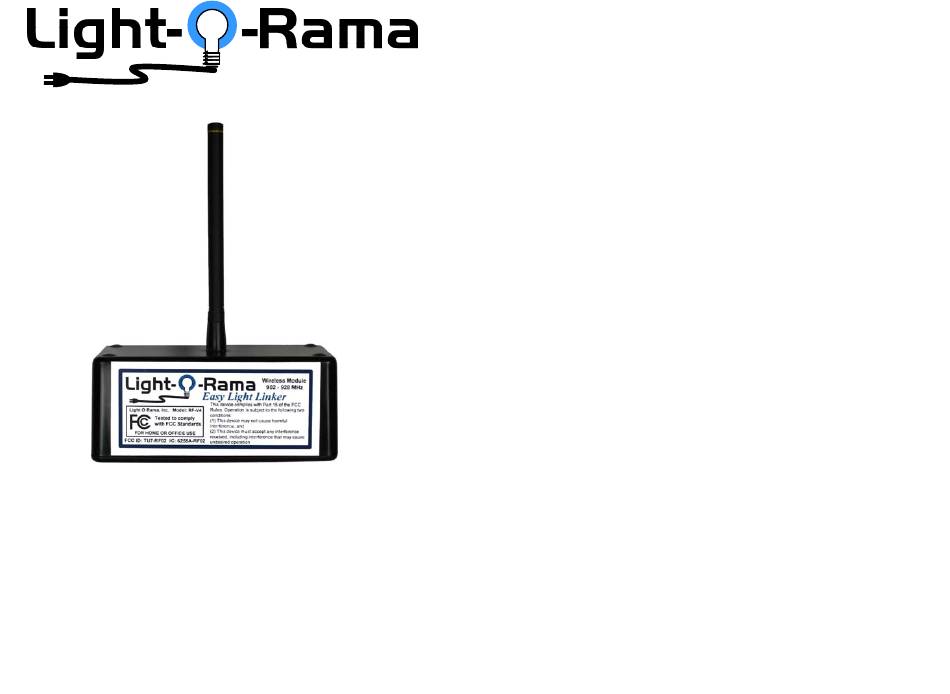

- Page 1 Easy Light Linker™ RF-V4 Wireless Module User Manual March 1, 2006 V1.0 Copyright © Light O Rama, Inc. 2006...
-
Page 2: Table Of Contents
LOR-RF-V4 Table of Contents Introduction Introduction ............. 4 What’s in the Box ............ 5 The Light-O-Rama (LOR) Easy Light Linker is a Transceiver Configuration ........6 transceiver designed to work with LOR controllers. Radio Frequency (RF channel)......7 The user can select one of 32 operating frequencies Network Speed (RS485 link speed)..... -
Page 3: What's In The Box
LOR-RF-V4 LOR-RF-V4 What’s in the Box Transceiver Configuration Your Easy Light Linker™ wireless module includes The LOR Hardware Utility is used to change the the transceiver, bottom cover, bottom cover screws default configuration of the Easy Light Linker and user’s manual. transceiver. -
Page 4: Radio Frequency (Rf Channel)
LOR-RF-V4 LOR-RF-V4 buttons. The “Current Device Parameters” window Persistent Memory will display this information and more. The transceiver has an EEPROM that is part of the CPU to remember its configuration settings over power failures. The transceiver will immediately Radio Frequency (RF channel) reboot when “Update Configuration”... -
Page 5: Wireless Network Configurations
LOR-RF-V4 LOR-RF-V4 Wireless Network Configurations Multiple Homes This section shows a few ways you can use Easy House #1 Light Linkers to link LOR networks. They behave as wire replacements, so anything you can do with over a hard wire, you can do through the wireless units. Controller Controller RF-V4... -
Page 6: Long Distance Relay
LOR-RF-V4 LOR-RF-V4 Installation Considerations Long Distance Relay The Easy Light Linker was designed to be a simple replacement for the data cable between LOR controllers and/or the controlling PC. It requires no change (software or hardware) in any LOR controller. You do not configure Easy Light Linkers as transmitters or receivers. -
Page 7: Circuit Board
LOR-RF-V4 LOR-RF-V4 transceiver where water can splash upward or Circuit Board be forced into the case from below. (I.e. avoid mounting it where an irrigation system may force water up into the case.) 4. Don’t use data cables with boots. The boot results in too tight a fit against the transceiver case and puts too much stress on the RJ45 jack when the bottom cover is put on. -
Page 8: Status Leds
LOR-RF-V4 LOR-RF-V4 Status LEDs Pin Headers There are three labeled LEDs above the RJ45 No connections should be made to the two pin connectors. They are used as follows: headers on the circuit board. One of these headers is used to program the board at the factory. The LED1 This LED pulses approximately once per other is reserved for possible future versions of the second when the unit has successful... -
Page 9: Specifications
Réglement sur le matériel brouilleur du Canada. Modifications Warning Changes or modifications to this device not expressly approved by Light O Rama could void the user’s authority to operate this device. Page 17 Page 18... -
Page 10: Rf Exposure Warning
LOR-RF-V4 RF Exposure Warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device's external antenna must be installed in accordance with provided instructions and it must be operated with a minimum 20 cm spacing between antennas and all persons’...
