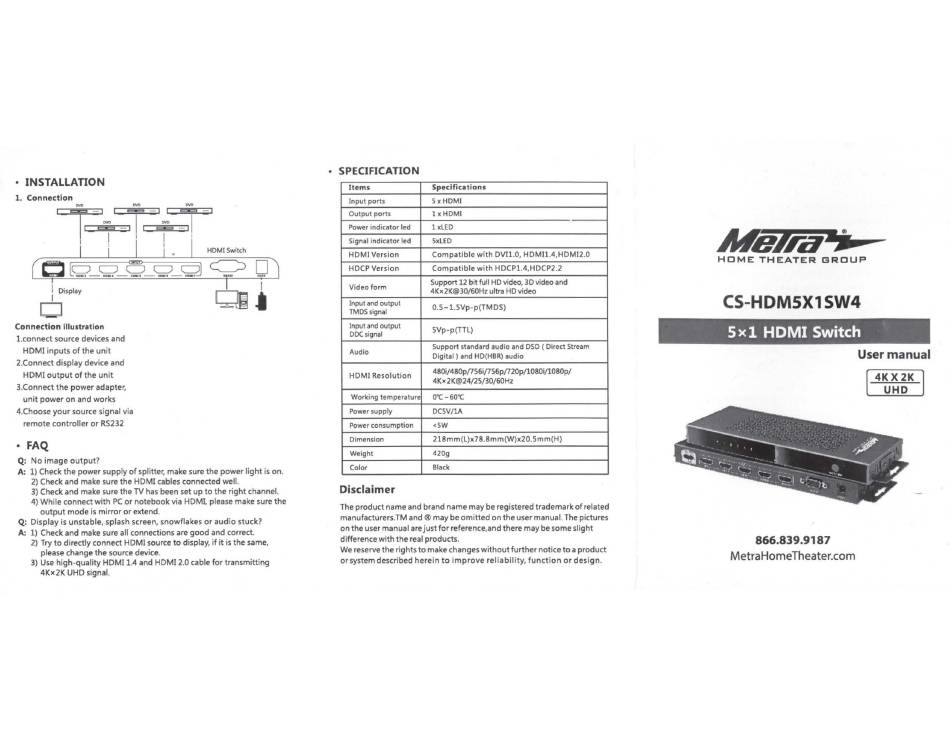

Metra Electronics CS-HDMSX1SW4 User Manual

• INSTALLATION
1. Connection
~
- lc:slj=~ ···· I IC§!=~ ··· •
1
l_E-= .... 1
I ~;;;;::::::. - = J .
I ! I I
HOM!Switch
I
Display
I
□
Connection illustration
l .connect source devices and
HDMI inputs of the unit
2.Connect display device and
HDMI output of the unit
3.Connect the power adapter,
unit power on and works
4.Choose your source signal via
remote controller or RS232
• FAQ
Q:
No image output?
A: 1) Check the power supply of splitter, make sure the power light is on.
2) Check and make sure the HDMI cables connected well.
3) Check and make sure the TV has been set up to the right channel.
4) While connect with PC or notebook via HDML please make sure the
output mode is mirror or extend.
Q: Display is unstable, splash screen, snowflakes or audio stuck?
A: 1) Check and make sure all connections are good and correct
2) Try to directly connect HDMI source to display, if it is the same,
please change the source device.
3) Use high-quality HDMI 1.4 and HDMI 2.0 cable for transmitting
4Kx2K UHD signal.
• SPECIFICATION
Items Specifications
Input ports Sx HOM!
Output ports l x HOM!
Power indicator led
l xLEO
Signal indicator led SxLEO
HDMI Version
Compatible with DVll.O, HDMl1.4,HDMl2.0
HDCP Version Compatible with HDCP1.4,HDCP2.2
Video form
Support 12 bit full HD video, 3D video and
4Kx2K@30/60Hz ultra HD video
Input and output
0.5-1.SVp-p(TMDS)
TMOSsignal
Input and output
SVp-p(TTL)
DOC signal
Audio
Support standard audio and OSO ( Direct Stream
Digital) and HD(HBR) audio
HDMI Resolution
480i/480p/756i/756p/720p/1080i/1080p/
4K•2K@24/25/30/60Hz
Working temperature trc-60-C
Power supply OCSV/ lA
Power consumption <SW
Dimension
218mm(L)x78.8mm(W)x20.Smm(H)
Weight 420g
Color Black
Disclaimer
The product name and brand name may be registered trademark of related
manufacturers.TM and® may be omitted on the user manual. The pictures
on the user manual are just for reference.and there may be some slight
difference with the real products.
We reserve the rights to make changes without further notice to a product
or system described herein to improve reliability, function or design.
CS-HDMSX1SW4

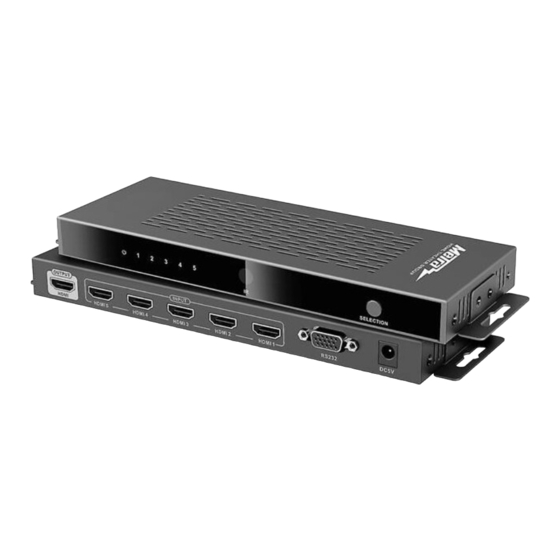

Sxl HDMI Switch
User manual
866.839.9187
MetraHomeTheater.com
4KX2K
UHD
