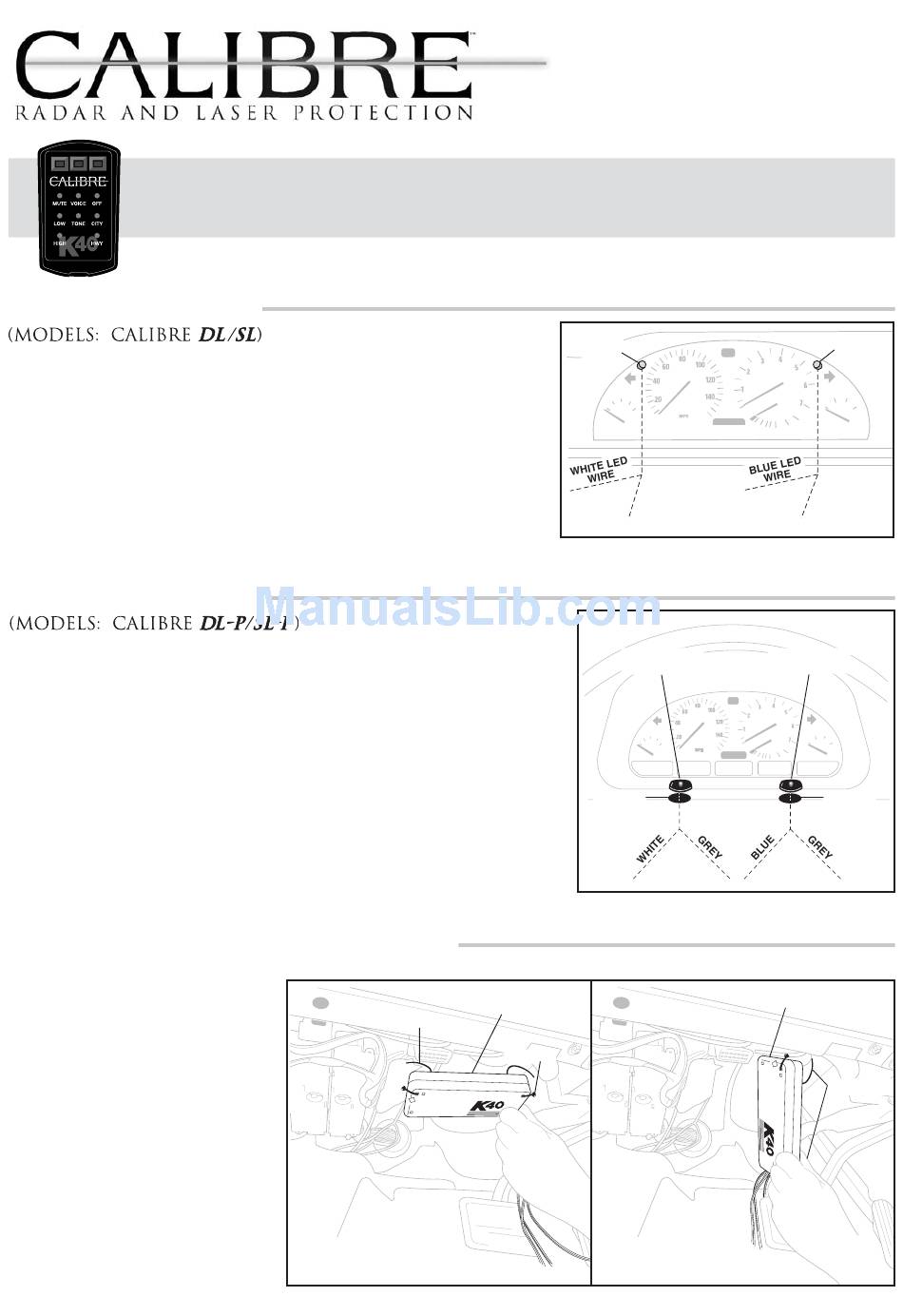

The included CALIBRE Remote Control is used to allow the driver to adjust settings on the
CALIBRE and to mute audio alerts during prolonged encounters. It may be mounted virtually
anywhere inside the vehicle with the included double stick tape or remain unmounted.
Warning LED(s)
1. Consult with vehicle owner about LED location. For best visibili-
ty, choose a mounting location as close to the vehicle gauges
as possible.
2. Check for proper clearance behind the area where the LED(s)
will be installed (approximately 1") and drill a 3/16" hole in the
chosen location for the LED(s). CALIBRE DL models require the
mounting of a second LED for rear radar warnings.
3. Route all of the LED wires under the dash per DIAGRAM A1.
Warning Pod(s)
1. Consult with vehicle owner about Pod location. For best visibility,
choose a mounting location as close to the vehicle gauges as
possible.
2. Before mounting the Warning Pod(s), clean both the Pod surface
and desired mounting location on the dash with isopropyl alcohol.
3. Position the Warning Pod(s) on the dash with the provided double
stick "O" ring tape. CALIBRE DL-P models require the mounting
of a second Pod for rear radar warnings.
4. Route the black cable(s) from the Warning Pod(s) through or under
the dash per DIAGRAM B1.
Interior Network Module
1. Remove the under dash
panel and mount the Interior
Network Module using the
supplied cable ties to the
existing factory wire looms,
brackets, or other support
structures as per DIAGRAM
C1. The Interior Network
Module can be mounted
horizontally or vertically
under the dash.
2. Connect the LED, ignition-
on, and ground wires per the
separate enclosed block
diagram sheet.
INTERIOR NETWORK
WIRE TIE
HORIZONTAL MOUNT
Installation
Installation
Instructions
Instructions
& R e c o m m e n d e d
P r o c e d u r e s
FRONT
ALERT
GREY LED WIRE
FRONT
WARNING POD
"O" RING
TAPE
MODULE
WIRE TIE
DIAGRAM C1
ALERT
GREY LED WIRE
DIAGRAM A1
REAR
WARNING POD
"O" RING
TAPE
DIAGRAM B1
INTERIOR NETWORK
MODULE
WIRE TIES
VERTICAL MOUNT
REAR
Advertisement
Table of Contents
Related Manuals for Calibre Calibre DL
Summary of Contents for Calibre Calibre DL
- Page 1 2. Check for proper clearance behind the area where the LED(s) will be installed (approximately 1”) and drill a 3/16” hole in the chosen location for the LED(s). CALIBRE DL models require the mounting of a second LED for rear radar warnings.
- Page 2 Amplified Speaker 1. Route the amplified speaker cable around a panel edge and reattach the under dash panel per DIAGRAM D1. 2. For maximum audio output and concealment, mount the amplified speaker to the outside of the under dash panel with the supplied screws per DIAGRAM D1.
