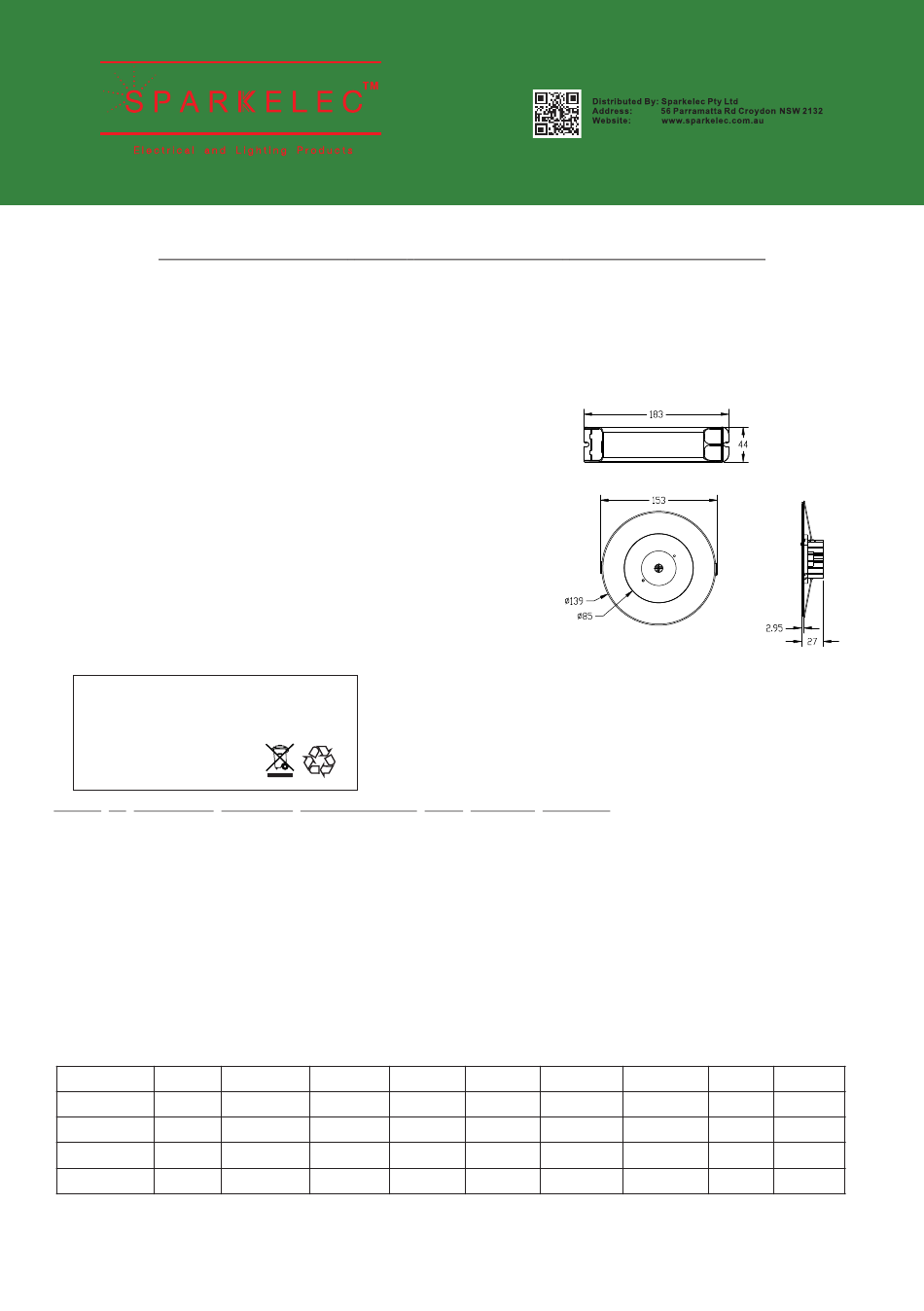

INSTALLATION AND OPERATING INSTRUCTIONS
Recessed LED Emergency Light(
A P P L I C AT I O N
During Normal operating conditions, this LED Emergency light should be connected to a Permanent Active
Circuit (not a switched active circuit). When mains power supply is available, AC provides power and charges
the built-in rechargeable batteries. The LED Chip is always "unlit." The LED Chip will only "light up" when
there is a cut to the mains power supply.
T E C H N I C A L DATA
1. Input voltage:
2. DC power consumption:
3. Charge time:
4. Emergency time:
5. Operation:
6. Function:
7. Working temperature:
8. Battery:
9. Mounting:
10. IP rating:
11. Material:
12.Classification:
13.SP3001-FE/DA
Series product appearance unified. The functions of each MODEL is similar.
Please refer to the following table.
Battery type:
LiFePO4
:6.4V 1500/3000mAh
Max Ambient temperature:60℃
Installed date:
Manufactured date:
Used date:
PLUG IN BATTERY BEFORE CONNECTING 240V POWER SUPPLY
SP3001FE/DA-xx-yy series
Charging mode: Max.4 W 220-240 V 50/60 Hz
Emergency lighting mode: 6.4 V battery,2.5/5W
Battery supply: 1500/3000 mAh, 6.4 V d.c.
Cl. II, IP20, ta 0 - +40 ℃ , Non-maintained, 2 hours duration
The "xx" in the type designation can be D40 or D63,
indicating different emergency luminaire:
xx=D40
xx=D63
The "yy" can be "WH" or "BK", indicating the color of housing.
yy = WH: white;
yy = BK: black
T E C H N I C A L I N F O R M AT I O N
Model No.
Classfication
D40
SP-3001FE/DA-D40-WH
D40
SP-3001FE/DA-D40-BK
D63
SP-3001FE/DA-D63-WH
D63
SP-3001FE/DA-D63-BK
220-240V, 50Hz
2.5/5w
16/24 Hours
2/3 Hours
NON-maintained operation
Manual Test Switch & LED Indicator
0℃ to 40℃
LiFePO4 Battery
Recessed
IP20
Plastic
C0:D40/63 C90:D40/63
FE: Standard ; DA: with DALI function
LiFePO4
Charge
Charging mode
Input Voltage
4W
220-240V 50/60Hz
16/24 Hours
4W
220-240V 50/60Hz
16/24 Hours
4W
220-240V 50/60Hz
16/24 Hours
4W
220-240V 50/60Hz
16/24 Hours
SP3001FE/DA-D40/D63-WH/BK
.
Discharge
Operation
Time
Time
2/3 Hours
NON-Maintained
2/3 Hours
NON-Maintained
2/3 Hours
NON-Maintained
2/3 Hours
NON-Maintained
-1-
Emergency Mode
DC Power
Output lumen
Battery
200lm
2.5W
LiFePO4, 6.4V 1.5Ah
200lm
2.5W
LiFePO4, 6.4V 1.5Ah
400lm
5W
LiFePO4, 6.4V 3Ah
5W
400lm
LiFePO4, 6.4V 3Ah
)
Advertisement
Summary of Contents for SPARKELEC SP-3001FE/DA-D40-WH
- Page 1 Model No. Classfication Input Voltage Operation DC Power Output lumen Battery Time Time 220-240V 50/60Hz 16/24 Hours 2/3 Hours 200lm SP-3001FE/DA-D40-WH NON-Maintained 2.5W LiFePO4, 6.4V 1.5Ah 220-240V 50/60Hz 16/24 Hours 2/3 Hours 200lm NON-Maintained 2.5W LiFePO4, 6.4V 1.5Ah SP-3001FE/DA-D40-BK 400lm...
- Page 2 S A F E T Y This is a mains powered product. Before Installation or maintenance, please make sure power supply is isolated. If the external flexible cable of this luminaire is damaged, it should only be replaced by a licensed electrician or equivalent qualified person to avoid any safety hazards.
- Page 3 If you have installed and connected the fitting as per the instruction contained within this manual and the light fails to work properly, please use the following table as a guide to fixing the problem. FAU LT POSSIBLE CAUSES ▪ AC Supply is not connected Indicator is not lit ▪...
- Page 4 Australian & New Zealand Classifications Luminaires shall be classified as at least one of the following: a) Non-IC b) Do-not-cover c) CA90 d) CA 135 e) IC f) IC-4 a) Non-IC luminaire a recessed luminaire that cannot be abutted against or covered by normally flammable materials or used in installations where building insulation or debris is, or maybe, present in normal use.
