Summary of Contents for DVI LM-THF123D
- Page 1 LM-THF123D DVI Fiber Optic Extender User Manual...

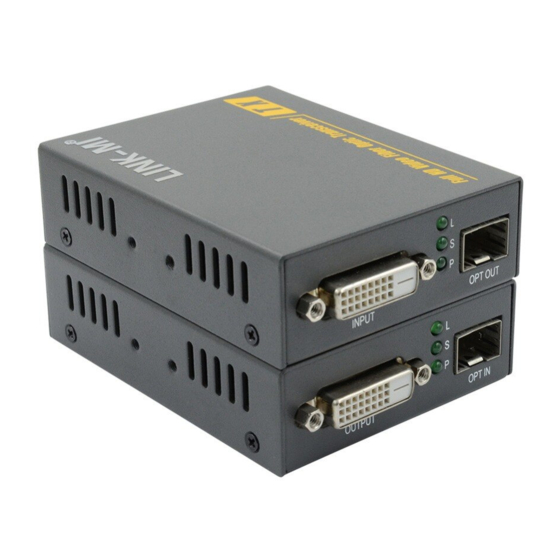

- Page 2 1. Description The DVI Fiber optic extender provides extension of DVI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K, EDID copy/pass-thru function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
- Page 3 3. Specifications Parameter Description Standards DVI 1.0 Maximum pixel 225MHz clock Maximum data 6.75Gbps Video rate Resolution range Up to 3840*2160@30Hz Connector DVI interface Impedance 100Ω Interface SFP model – LC connector Fiber type Single-mode Wavelength Single-mode 1310nm Optical Interface...
- Page 4 Transmitter: Receiver: Port name Description DVI IN/OUT DVI signal input/output EDID Copy button, Press 3 seconds, copy EDID from DVI IN EDID display device to system .If DVI IN interface no display connect, restore default EDID. DC/5V Power adapter socket...
- Page 5 User manual ……………………………….….. 1 pcs 6. Installation 1. Connect an DVI cable between the DVI input port of transmitter and the DVI output port of the video source, 2. Connect the DVI output port of receiver to the display device with DVI cable, 3.
