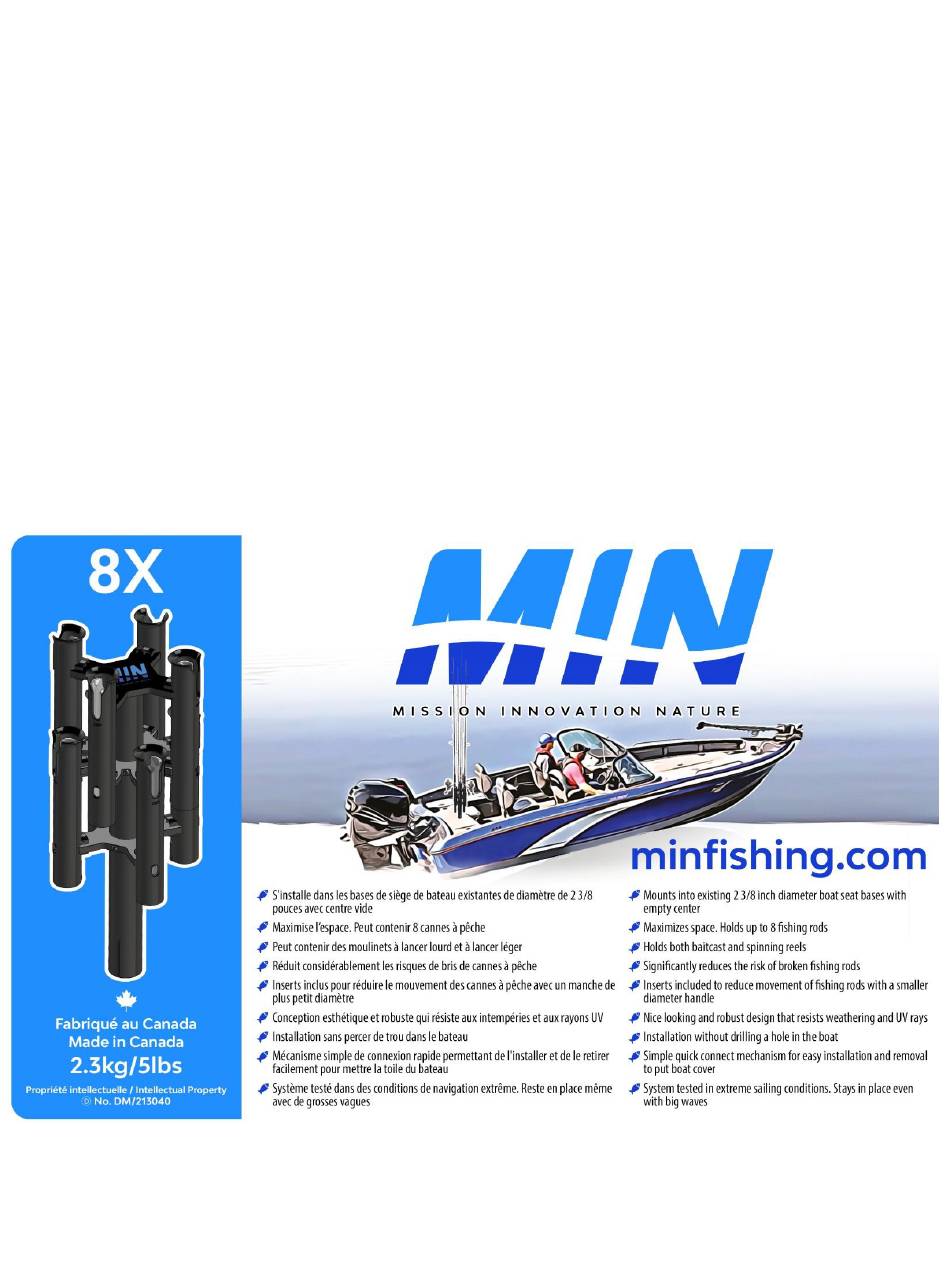

Page 1 ASSEMBLY INSTRUCTIONS...
Page 2 Mission Innovation Nature thanks you for purchasing a product proudly designed and made in Canada. Your satisfaction is a priority for us. For any questions or comments please contact us through our website. Web site: www.minfishing.com Warnings! - Plastic bags and small parts contained in this product can be dangerous. To avoid the risk of suffocation, keep out of the reach of babies and children.
Page 3 2. Insert the washers into the 1.5 "screws. 1. Prepare all piece and tools on a worktable (protect the surface with a towel). 4. Insert the middle piece (the side doesn’t matter) and line it up roughly with the first piece inserted. You can line up any of the 8 spaces.
Page 4 6. Repeat to insert the other 3 tubes 5. Take a fishing rod tube and insert the and turn the assembly upside bottom first (1). Slide the bottom part down. to align with the top part (2). 7. Insert the gray pieces into the tubes aligning the notch at the end.
Page 5 9. Take the 1.5 "screws with the stainless-steel 10. Repeat for other 3 tubes. washers inserted previously. Point it up and tilt the assembly so the screw stays in place on the drill. Look inside the tube to line up the screw in the hole and screw in until the pieces are thighted together.
Page 6 12. Take a fishing rod tube and insert the 13. Repeat steps 6 to 10 for the bottom first (1). Slide the bottom part to new installed tubes. align with the top part (2). 15. Press down while turning to make sure the main tube is properly engaged in the notch.
Page 7 16. Maintain pressure to keep the tube engaged in the notch and screw into the hole between the tubes. There is no hole in the center tube, they will form when screwing. Repeat for the 3 others screws of the same level. Note: There is no stainless-steel washer for the 6 screws which are used to fix on the central tube.
