AV-D25 (T Series)
Tilt

Features

● Intuitive grab and move operation enhances the user
experience
● No knobs or tools required to reposition the display
● Robust positioning in compact package
● Holds securely, even in applications with dynamic loading
● Consistent repeatable operation
● Fully enclosed for optimum cleanability
● VESA MIS-D, 100, C compliant
● Available in black or white

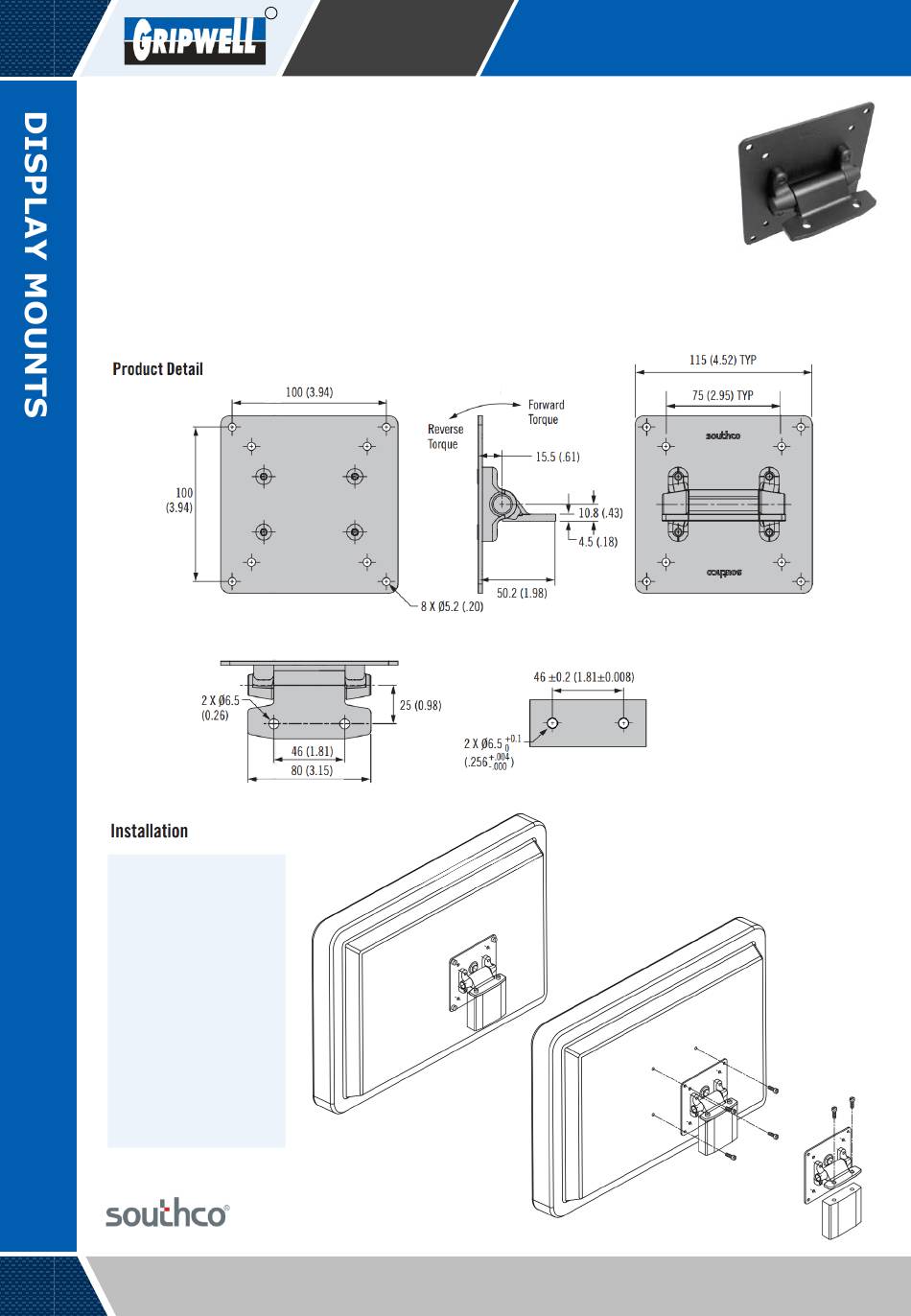

1. Determine desired
mounting location
2. Attach using M6
screws as shown
Caution: Because of
the wide variety
available materials, it
is the
responsibility to ensure
that the materials, and
structure to which the
tilt mount is fastened
will provide adequate
support.
3. Attach display using
manufacturer's
recommended
hardware
We are proud to be Southco's authorized distributor of over 20 years
www.gripwell.com.sg
1
R
The Specialist in
Value-based Fastening
& Assembly Solutions
Dynamic Mount
of
installer's
AV-D25 (T Series)

Material

● Steel, aluminum alloy,
powder coated

Product Performance

● Cycle performance: 20,000 cycles
within ± 20% of static torque specification
● Max. dynamic working load: 100 N
● Average ultimate load: 1,065 N
